Juniper JN0-361 Online Practice Questions and Exam Preparation

Juniper JN0-361 Online Questions & Answers

• Question 281:

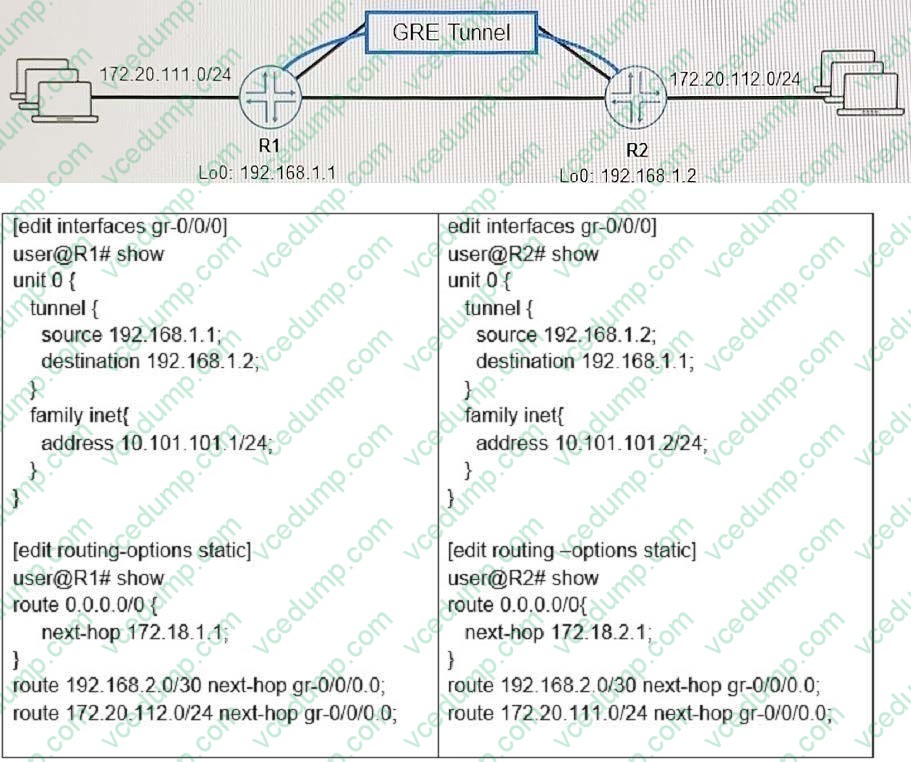

  Click the Exhibit.



  You have just configured a GRE tunnel, but you notice that the GRE tunnel is flapping. Referring to the exhibit, which two would you take to solve this problem? (Choose two.)

  A. Add a specific static route to the local peer's network with the remote devices'loopback address as the next-hop gateway.
  B. Add a specific route to the remote device's loopback address with the next-hop device defined as the next-hop gateway.
  C. Set the GRE interface with a larger TTL value.
  D. Remove the existing 192.168.2.0/30 static route.
  B. Add a specific route to the remote device's loopback address with the next-hop device defined as the next-hop gateway.
  D. Remove the existing 192.168.2.0/30 static route.

• Question 282:

  A customer pays for the bandwidth on a per-packet basis. The network administrator wants to constrain costs and prevent Layer 2 loops on a multihomed Layer 2 WAN network. Which technology would satisfy these requirements?

  A. Rapid Spanning Tree Protocol
  B. Multiple Spanning Tree Protocol
  C. Loop protection
  D. MPLS over GRE
  C. Loop protection

• Question 283:

  What does an STP BPDU Port ID field contain?

  A. bridge priority
  B. bridge port priority and bridge port address
  C. bridge priority and bridge address
  D. port priority and port address
  D. port priority and port address

• Question 284:

  You are logged into a router and have navigated to the (edit routing-options] level of the hierarchy. You have been asked to create a static route that will use 10.10.10.1 as its primary next-hop and 10.10.10.5 as its secondary next-hop. Which command correctly configures this scenario?

  A. set static route 8/8 10.10.10.1 qualified-next-hop 10.10.10.5 pref 10
  B. set static route 8/8 next-hop 10.10.10.1 secondary-next-hop 10.10.10.5 preference 10
  C. set static route 8/8 next-hop 10.10.10.1 qualified-next-hop 10.10.10.5 preference 10
  D. set static route 8/8 next-hop [10.10.10.1 10.10.10.5] pref 10
  C. set static route 8/8 next-hop 10.10.10.1 qualified-next-hop 10.10.10.5 preference 10

• Question 285:

  How many equal-cost paths can be assigned to a single route in the Junos OS?

  A. 4
  B. 16
  C. 32
  D. 64
  B. 16

• Question 286:

  When sending BGP routes in an Update message, how are they grouped?

  A. by grouping aggregated address ranges together
  B. by using a complete set of matching attributes
  C. by the originating autonomous system
  D. by the originating router
  B. by using a complete set of matching attributes

• Question 287:

  What are two differences between RSTP and VSTP? (Choose two.)

  A. Using VSTP, the BPDU destination address is always 01:00:0C:CC:CC:CD.
  B. Using VSTP, the BPDU frame carries an 802.1Q tag.
  C. Using RSTP, the BPDU destination address is always 01:00:0C:CC:CC:CD.
  D. Using RSTP, the BPDU frame carries an 802.1Q tag.
  A. Using VSTP, the BPDU destination address is always 01:00:0C:CC:CC:CD.
  B. Using VSTP, the BPDU frame carries an 802.1Q tag.

• Question 288:

  You want to save adjacency formation time between two routers participating in OSPF, as well as reduce the size of the OSPF link-state database. How would you accomplish these tasks?

  A. Configure a virtual link.
  B. Specify a designated router.
  C. Specify a backup designated router.
  D. Define a point-to-point connection.
  B. Specify a designated router.

• Question 289:

  Which two statements are true about unified ISSU? (Choose two.)

  A. It allows gradual implementation of new features.
  B. It reduces operating costs while delivering higher service levels.
  C. It involves network down time during software image upgrades.
  D. It requires graceful Routing Engine switchover (GRES) and nonstop active routing (NSR).
  B. It reduces operating costs while delivering higher service levels.
  D. It requires graceful Routing Engine switchover (GRES) and nonstop active routing (NSR).

• Question 290:

  Which two support the tunneling of IP traffic on Junos devices? (Choose two.)

  A. ATM AAL2
  B. GRE
  C. IP-IP
  D. ATM AAL1
  B. GRE
  C. IP-IP
