Juniper Juniper Certifications JN0-104 Questions & Answers

• Question 201:

  Your configuration contains the static routes shown in the exhibit. Which command will successfully remove the 166.74.67.131 static route?

  A. delete routing-options static route 166.74.67.131/32 qualified-next-hop 166.113.123.37 interface irb.222

  B. delete routing-options static route 166.74.67.131/32

  C. delete routing-options static route 166.74.67.131/32 qualified-next-hop 166.113.123.37

  D. delete routing-options static route 166.74.67.131/32 qualified-next-hop

  Correct Answer: B

• Question 202:

  Which Junos release would address only bug fixes that were not contained in the 15.1R1 version of code?

  A. 15.1X2

  B. 15.1R2

  C. 15.1F2

  D. 15.1S2

  Correct Answer: B

• Question 203:

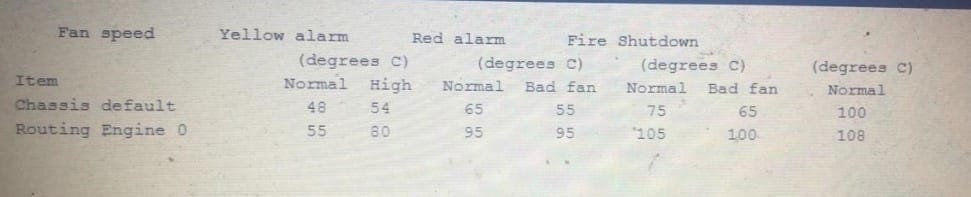

  Which command displays the output shown in the exhibit?



  A. show chassis temperature-thresholds

  B. show chassis environment

  C. show chassis hardware

  D. show chassis alarms

  Correct Answer: A

• Question 204:

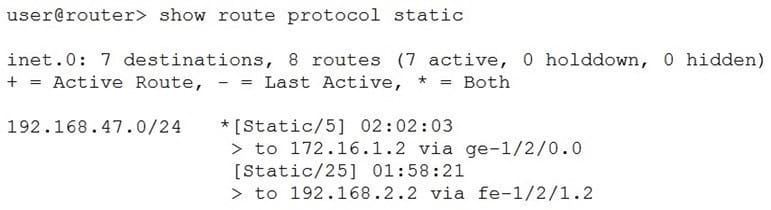

  Referring to the Exhibit,



  What information is provided about the route to 192.168.47.0/24? Choose Two

  A. There is a single active route to 192.168.47.0/24

  B. There are two next-hops available to 192.168.47.0/24

  C. There is a single next-hop available to 192.168.47.0/24

  D. There are two active route to 192.168.47.0/24

  Correct Answer: AB

• Question 205:

  What are two examples of transit traffic? (Choose two.)

  A. SFTP traffic that enter one interface and is destine for another interface on the local router.

  B. SCP traffic that enters one interface and exit another interface on the local router.

  C. SFTP traffic that enters and exits the same interface on the local router.

  D. SCP traffic that is destined for the router's loopback interface.

  Correct Answer: BC

• Question 206:

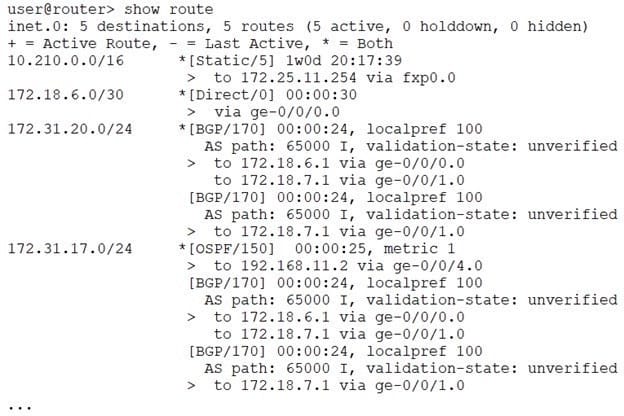

  Exhibit: You notice traffic destined to 172.31.17.0/24 is traversing an OSPF path rather than BGP Path.



  What is causing this behavior?

  A. The 172.31.17.0/24 BGP route is missing a valid default next hop

  B. The 172.31.17.0/24 BGP has a higher route preference

  C. The 172.31.17.0/24 route does not have a valid BGP entry

  D. The 172.31.17.0/24 BGP route's outgoing interface is down

  Correct Answer: B

• Question 207:

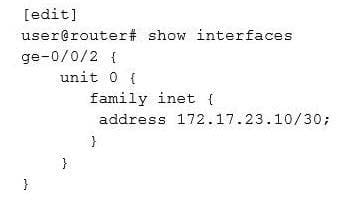

  Click the Exhibit button.



  Your Junos device is using the configuration shown in the exhibit. You notice that the 172.17.23.10/30 address Is Incorrect and should be 172.17.23.9/30.

  What are two commands that would solve this problem? (choose two.)

  A. [edit interfaces] use reroute r# delete ge-0/0/2.0 family inet address 172-17.23.10

  B. [edit interfaces] user@router# rename ge-0/0/Z0 family inet address 172.17.23-10/30 to address 172.17.23.9/30

  C. [edit interfaces] user@router= replace pattern 17Z1723.10 with

  172.17.23.9

  D. [edit interfaces] user@router# set ge-0/0/2.0 family inet address

  Correct Answer: BC

• Question 208:

  What are three interface prefixes for a 40-gigabit interface? (Choose three.)

  A. et

  B. es

  C. fte

  D. xe

  E. xle

  Correct Answer: ABE

• Question 209:

  Which process is responsible for controlling all interfaces on a Junos device?

  A. rpd

  B. chassisd

  C. dcd

  D. mgd

  Correct Answer: C

• Question 210:

  Which command displays all IPv4 routes in the default routing instance?

  A. show route table inet.0

  B. show route table inet.2

  C. show route table inet6.0

  D. show route table inet.1

  Correct Answer: A
