HP Aruba Certified Design Professional (ACDP) V1 HPE6-A47 Questions & Answers

• Question 1:

  What should an architect use as a guideline to determine when to minimize VLANs in a wireless design?

  A. the WLAN or SSID, with a different VLAN for each SSID

  B. the coverage area, with a different VLAN for every 4000 square feet (372 square meters)

  C. the number of devices, with a different VLAN for each 250 devices

  D. the employee roles, with a different VLAN for each role or department

  Correct Answer: D

• Question 2:

  An architect proposes three 7205 Mobility Controllers (MCs), which will together support about 400 APs. The customer environment will have a maximum of about 5,000 wireless clients. The customer wants a hardware Mobility Master (MM) architecture.

  Which solution should the architect recommend?

  A. MM-HW-1K appliances

  B. MM-HW-10 appliances

  C. MM-HW-5K appliances

  D. MM-HW-10K appliances

  Correct Answer: C

• Question 3:

  An architect simulates VoIP calls and tests the throughput as 67 Kbps, packet loss as 0.3 percent, maximum latency as 100 ms, and maximum jitter as 100 ms.

  Which issue typically causes a poor experience for users?

  A. the packet loss

  B. the throughput

  C. the latency

  D. the jitter

  Correct Answer: D

• Question 4:

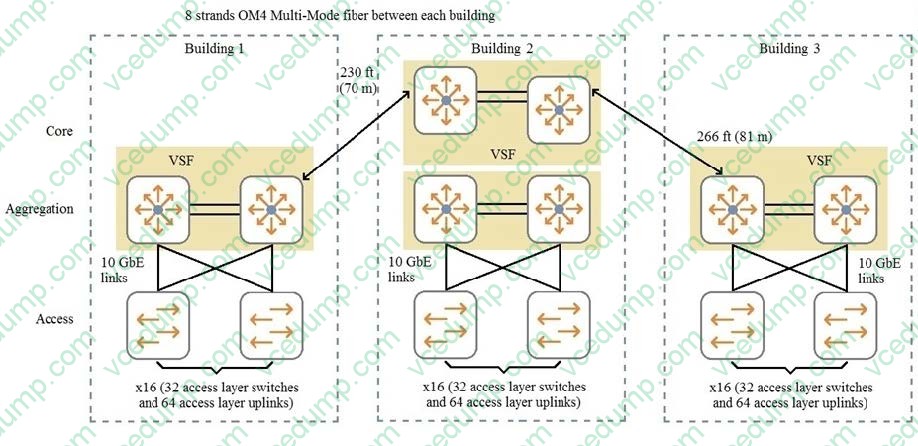

  Refer to the exhibit.



  An architect selects 5406R switches for the aggregation layer.

  What is the maximum bandwidth possible between the aggregation and core layers using 8 strands of OM4 MM fiber at the distances indicated in the diagram?

  A. 60 Gbps

  B. 160 Gbps

  C. 200 Gbps

  D. 320 Gbps

  Correct Answer: D

• Question 5:

  A customer currently has an Instant AP deployment.

  Which customer requirement would indicate that the customer needs to add a controller to the deployment?

  A. the requirement to apply role-based firewall policies

  B. the requirement for a captive portal for guests

  C. the requirement to provide client-to-site VPN acces for remote users

  D. the requirement for a cloud-based management solution

  Correct Answer: D

• Question 6:

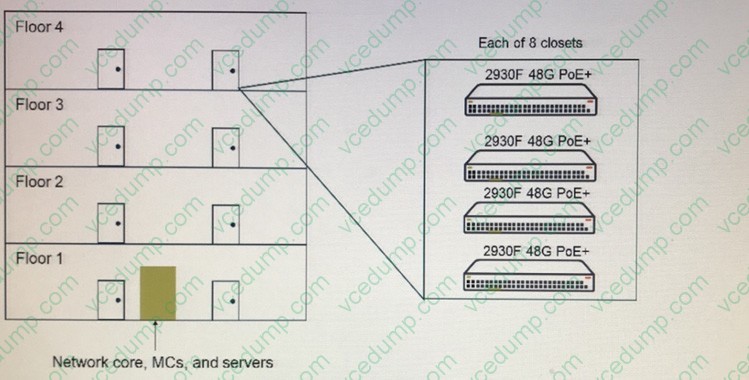

  Refer to the exhibit.



  A customer needs to upgrade the wireless network at their campus, which has a single large building. Employees use the wireless network to access the Internet and centralized services. The building has four floors. These are the requirements: 30 APs on each floor A Mobility Master (MM)-based architecture Deployment of one Aruba 7030 Mobility Controller (MC) on each floor, with the MCs combined in a cluster for seamless client failover and roaming

  What should the architect explain to the customer about the proposed solution?

  A. MCs should be deployed centrally on the same VLAN to better meet these goals

  B. MCs in a cluster must have additional AP licenses to support APs of a failed controller

  C. The MC 7030 does not support enough APs for the requirements

  D. The MC 7030 only supports clusters with up to three members

  Correct Answer: A

• Question 7:

  What is a key criteria that an architect should use to choose between an Aruba 7000 Series or 7200 Series Mobility Controller (MC)?

  A. the number of wireless devices that the MC needs to support

  B. whether the MC needs to terminate VPN tunnels

  C. the need to deploy controllers in a cluster

  D. whether the MC needs to support advanced 8.x features

  Correct Answer: A

• Question 8:

  Which benefit does Aruba AirWare Clarity provide to customer IT staff?

  A. assesses times for clients to obtain DHCP and DNS services to help staff diagnose non-WiFi related issues

  B. create a heat map of RF coverage, shows places with interfaces, and helps staff pinpoint the interference source

  C. provides insight into the security posture of clients connected to the network, whether wired or wireless

  D. maps all network devices, including APs, MCs, switches, and client devices, and provides information about each node

  Correct Answer: A

• Question 9:

  An architect plans to deploy a Mobility Controller (MC) at one building in subnet 10.23.01.0/24 and another MC in another building in subnet 10.44.12.0/24. The MCs need to provide redundancy for each other.

  What must the architect take into account in the redundancy plan?

  A. The MCs cannot provide any level of redundancy for each other unless one is moved into the other's subnet.

  B. The MCs cannot be in a cluster, and they must use Virtual Router Redundancy Protocol (VRRP) to provide redundancy for each other.

  C. The MCs can be in a cluster, but the cluster will not support features such as stateful failover.

  D. Each MC can be the backup LMS for the other MCs' APs, but it cannot be in a cluster with the other MC.

  Correct Answer: B

• Question 10:

  A customer needs a networking solution that supports their Microsoft Skype for Business Unified Communications (UC) solution. The architect discovers that user wireless devices are Wi-Fi Multimedia (WMM) capable. Windows policies assign voice traffic DSCP 46 and video traffic DSCP 34.

  Which potential issue should the architect explain to the customer about the default QoS settings?

  A. The DSCP values place both voice and video traffic in the video VMM queue, so voice does not receive the prioritization that is should.

  B. The Aruba APs and controllers use different prioritization mechanism from WMM, so they will not accept high priority traffic from the wireless devices.

  C. DSCP is incompatible with WMM. The Aruba APs and controllers instead use 802.1p to mark traffic to and from wireless devices.

  D. The DSCP for wireless client traffic is concealed within the GRE packet on the path from the AP to the controller, and does not take effect.

  Correct Answer: A
