Huawei Huawei Certifications H12-811 Questions & Answers

• Question 531:

  The router receives a data packet with a destination IP address of 11.0.12.1 from host A. After this data packet is forwarded by the router, what are the destination MAand destination IP? ()

  A. MAC-D.10.0.12.2

  B. MAC-D.11.0.12.1

  C. MAC-B.11.0.12.1

  Correct Answer: C

• Question 532:

  Which of the following SNMP packets are sent to the NMS by the Agent on the managed device ()

  A. Set-Request

  B. Get-Request

  C. Get-Next-Request

  D. Response

  Correct Answer: D

• Question 533:

  Using the command mkdirtest in the VRP operating platform, the system will create a directory named test. ()

  A. True

  B. False

  Correct Answer: A

• Question 534:

  The IPv6 protocol uses NS and NA. packets for duplicate address detection ()

  A. True

  B. False

  Correct Answer: A

• Question 535:

  ifoneLength/Type = 0X8100 taught by the Ethernet data, which of the following is correct? ()

  A. There must be a UDP header in the upper layer of this data frame

  B. The upper layer of this data frame must existIP header

  C. There must be a TCP header in the upper layer of this data frame

  Correct Answer: C

• Question 536:

  Telnet is a module that implements the Telnet protocol that comes with Python ()

  A. True

  B. False

  Correct Answer: A

• Question 537:

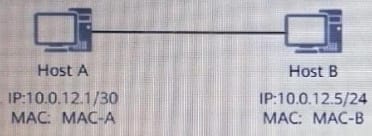

  As shown in the figure below, which of the following statements is correct? () (Single-choice question)



  A. Only if the masks of host A and host B are set to be the same, host A and host B can communicate

  B. The IP address mask b of host A and host B are different. Therefore, host A and host B cannot communicate

  C. The broadcast address of host A and host B are the same

  Correct Answer: A

• Question 538:

  You can manually specify the source address or source interface of the CAPWAP tunnel on the A()

  A. True

  B. False

  Correct Answer: A

• Question 539:

  The router needs to modify the destination IP address in the data packet when forwarding the data packet. ()

  A. True

  B. False

  Correct Answer: B

• Question 540:

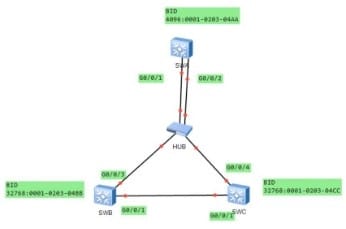

  Three Layer 2 switches are interconnected with one HUThe switches are all enabled with STP bridge IRefer to the figure below. What are the default errors of other configurations? () (Single-choice question)



  A. The two ports on SWA are designated ports and are in the forwarding state

  B. G0/0/2 of SWA is blocked

  C. G0/0/1 of SWC is alternative. It is in blocking state

  Correct Answer: B
