Huawei H12-261 Online Practice Questions and Exam Preparation

Huawei H12-261 Online Questions & Answers

• Question 131:

  If multiple candidate RPs are configured in a multicast domain, which of the following parameters need to be compared when electing the RP of the group from multiple candidate RPs?

  A. IP address of the C-RP interface
  B. Mask length of the group range that is supported by the C-RP and needs to be matched with the group address joined by receivers
  C. C-RP interface ID
  D. C-RP priority
  A. IP address of the C-RP interface

• Question 132:

  Many transition technologies have been adopted to replace IPv4 addresses on networks with IPv6 addresses. These technologies are categorized into IPv4/IPv6 coexistence technologies and IPv4/IPv6 interoperability technologies. Which of the following technologies are considered to be IPv4/IPv6 coexistence technologies?

  A. NAT64
  B. ISATAP
  C. IPv6 over IPv4
  D. Dual Stack
  D. Dual Stack

• Question 133:

  Regarding the logical mode of the MPLS TTL pair, is the following description correct?

  A. Pipe IP MPLS IP TTL 1 In MPLS TTL mode, when the message passes through the network, it is mapped to the field at the ingress point.
  B. MPLS TTL IP TTL MPLS A label, which has the same function as the header, can prevent the network from routing the loop (as it is)
  C. Uniform IP MPLS IP TTL 1 MPLS TTL mode is simulated. When the message passes through the network, the entry point is reduced and the field is fixed to the value.
  D. In the case of the MPLS VPN MPLS Ingress uniform, the private network text can be used in the reporting mode.
  B. MPLS TTL IP TTL MPLS A label, which has the same function as the header, can prevent the network from routing the loop (as it is)

• Question 134:

  On a BGP/MPLS Ipv4 VPN, OSPF, LDP, and static routes are configured. Which of the following protocols must be enabled with GR to achieve NSF on PEs?

  A. Static routes
  B. MPLS LDP
  C. OSPF
  D. BGP
  B. MPLS LDP
  C. OSPF
  D. BGP

• Question 135:

  A household has opened a 10Mb/s 12Mb/s broadband, and the carrier has increased the use of the camp for the user. The speed can be set at the time of the household. If I am stable, if I We use token bucket technology. Which of the following is the best?

  A. cir 10000 pir 12000
  B. cir 10000 cbs 10000 pbs 12000
  C. cir 8000 pir 12000
  D. cir 10000 cbs 12000 pbs 12000
  A. cir 10000 pir 12000

• Question 136:

  Which of the following statements regarding BGP confederations is false?

  A. By default, sub-AS numbers of a confederation are advertised to BGP peers outside the confederation.
  B. A BGP confederation divides an AS into several sub-ASs. ASs outside a confederation still consider the confederation as an AS.
  C. Confederations can easily detect routing loops inside an AS because EBGP is run between sub-ASs.
  D. Sub-A5s within a BGP confederation can use private AS numbers. For Huawei NE and AR routers, a maximum of 32 sub-ASs can be configured in a BGP confederation.
  A. By default, sub-AS numbers of a confederation are advertised to BGP peers outside the confederation.

• Question 137:

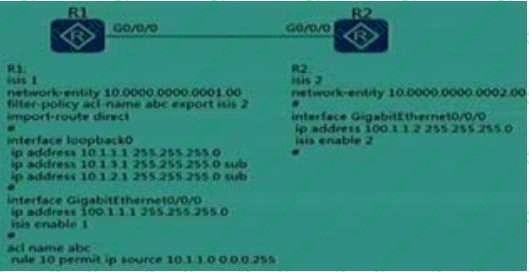

  Which routes will be learned R2 as shown in the figure below?



  A. R2 R1 can learn all the routes of the study
  B. R2 10.1.1.0/24 can learn this route.
  C. R2 10.1.2.0/24 10.1.3.0/24 can learn and two routes.
  D. R2 R1 LSP can be received but cannot be added to the routing table.
  A. R2 R1 can learn all the routes of the study

• Question 138:

  A new Syslog server is being installed in the HW network to accept network management information. What characteristics apply to these Syslog messages?

  A. Its transmission is acknowledgment
  B. Its transmission is secure
  C. Its transmission is not secure
  D. Its transmission is not reliable
  E. Its transmission is not acknowledged
  F. Its transmission is reliable
  C. Its transmission is not secure
  D. Its transmission is not reliable
  E. Its transmission is not acknowledged

• Question 139:

  Which of the following statements regarding BGP route summarization is true?

  A. Routes in the local BGP routing table can be manually aggregated.
  B. After the aggregate ipv4-address mask command is configured, only summary routes are advertised and specific routes are not advertised.
  C. By default, automatic BGP route summarization is enabled.
  D. BGP supports manual aggregate and automatic summarization of IPv6 routes.
  C. By default, automatic BGP route summarization is enabled.

• Question 140:

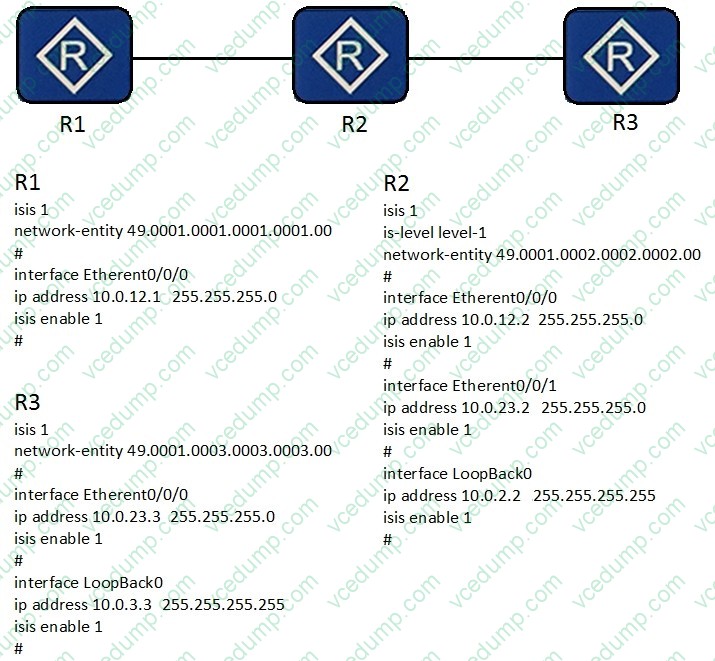

  The figure shows the topology and configuration. Which of the following methods can be used to exclude the specific route 10.0.3.3/32 from the routing table of R1?



  A. On R2, configure a filter-policy, use the ACL applied to the filter-policy to match 10.0.3.3/32, and apply the filter-policy to the export direction.
  B. Configure route summarization on R2 and summarize routes as 10.0.0.0/16.
  C. On R1, configure a filter-policy, use the ACL applied to the filter-policy to match 10.0.3.3/32, and apply the filter-policy to the import direction.
  D. Configure route summarization on R3 and summarize routes as 10.0.0.0/16.
  C. On R1, configure a filter-policy, use the ACL applied to the filter-policy to match 10.0.3.3/32, and apply the filter-policy to the import direction.
