Huawei H12-224 Online Practice Questions and Exam Preparation

Huawei H12-224 Online Questions & Answers

• Question 691:

  Which statements about the AS number range are true? (Choose three.)

  A. If 2-byte AS numbers are supported, a private AS number ranges from 32768 to 65535.
  B. If 2-byte AS numbers are supported, a private AS number ranges from 64512 to 65535.
  C. If 2-byte AS numbers are supported, an AS number ranges from 1 to 65535.
  D. If 4-byte AS numbers are supported, a 4-byte AS number is in the x.y format. Here, "x" and "y" are integers ranging from 1 to 65535 and 0 to 65535 respectively.
  B. If 2-byte AS numbers are supported, a private AS number ranges from 64512 to 65535.
  C. If 2-byte AS numbers are supported, an AS number ranges from 1 to 65535.
  D. If 4-byte AS numbers are supported, a 4-byte AS number is in the x.y format. Here, "x" and "y" are integers ranging from 1 to 65535 and 0 to 65535 respectively.

• Question 692:

  During the structured network troubleshooting process, in which of the following phases is the fault reported or advertised to other departments? (Choose two.)

  A. Fault identification
  B. Information collection
  C. Cause list
  D. Troubleshooting assessment
  A. Fault identification
  B. Information collection

• Question 693:

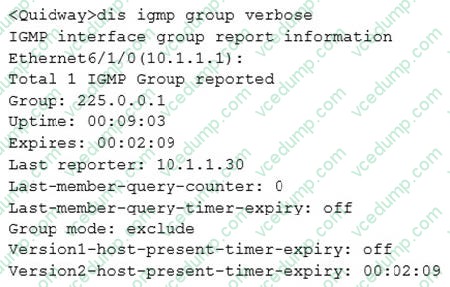

  The preceding information is generated after a router receives a Report message from group 225.0.0.1 through Ethernet 6/1/0.



  Which type of Report message will not be processed by the router?

  A. IS_IN
  B. ALLOW
  C. BLOCK
  D. TO_IN
  C. BLOCK

• Question 694:

  BGP is an inter-AS routing protocol. Which statements about BGP are true? (Choose three.)

  A. BGP adopts a reliable transmission protocol.
  B. BGP supports automatic peer discovery.
  C. BGP supports incremental route update.
  D. BGP supports various routing policies.
  A. BGP adopts a reliable transmission protocol.
  C. BGP supports incremental route update.
  D. BGP supports various routing policies.

• Question 695:

  The USG supports load balancing between multiple uplinks.

  A. TRUE
  B. FALSE
  A. TRUE

• Question 696:

  A network administrator needs to construct a small-scale network containing only 22 hosts and the ISP assigns only one public IP address as the egress address. Which of the following addresses can be used by the network administrator to plan the network?

  A. 10.11.12.16/28
  B. 172.31.255.128/27
  C. 192.168.1.0/28
  D. 209.165.202.128/27
  B. 172.31.255.128/27

• Question 697:

  Which BGP attributes are optional in a BGP Update packet? (Choose two.)

  A. Origin
  B. Nexthop
  C. Local-Preference
  D. MED
  C. Local-Preference
  D. MED

• Question 698:

  Which of the following statements about the BFD demand mode are true? (Choose two.)

  A. The local system periodically sends BFD control packets, and the remote system detects the BFD control packets sent from the local system.
  B. The local system detects the BFD control packets sent by itself.
  C. If one system does not receive any BFD packets from its peer within a detection period, it advertises a session Down event.
  D. Each system confirms its connections with other systems in a particular method. After a BFD session is set up, BFD control packets are no longer sent.
  B. The local system detects the BFD control packets sent by itself.
  D. Each system confirms its connections with other systems in a particular method. After a BFD session is set up, BFD control packets are no longer sent.

• Question 699:

  Which of the following statements regarding routing policies is true?

  A. Routing policies control packet forwarding based on destination addresses in the routing table.
  B. Routing policies are based on the forwarding plane and serve forwarding policies.
  C. A routing policy needs to be manually configured hop by hop to ensure that packets are forwarded according to the policy.
  D. A routing policy is configured using the policy-based route command.
  D. A routing policy is configured using the policy-based route command.

• Question 700:

  Which statements about VLAN mapping are true? (Choose two.)

  A. When sending a frame from the local VLAN, the switch replaces the VLAN tag in the frame with another VLAN tag.
  B. When receiving a frame from another VLAN, the switch replaces the VLAN tag of the frame with the local VLAN tag.
  C. When an interface receives a frame from another VLAN, it does not replace the VLAN tag of the frame. The interface replaces the VLAN tag of the frame with another VLAN tag only when it sends a frame.
  D. The interface replaces the VLAN tag of only the frame received from another VLAN, but does not change the VLAN tag of the frame it sends out.
  A. When sending a frame from the local VLAN, the switch replaces the VLAN tag in the frame with another VLAN tag.
  B. When receiving a frame from another VLAN, the switch replaces the VLAN tag of the frame with the local VLAN tag.
