EMC ViPR SRM 3.x Storage Resource Management E22-265 Questions & Answers

• Question 61:

  Where is the Load-Balancer-Connector installed?

  A. Collector Hosts

  B. All ViPR SRM Hosts

  C. Backend Host

  D. Backend and Collector Hosts

  Correct Answer: A

• Question 62:

  After adding a single VM vApp backend to an existing 4VM vApp deployment, by default, what would the tertiary backend instance names be?

  A. Default, apg1, apg2, apg3, apg4

  B. apg1, apg2, apg3, apg4

  C. Default, apg5, apg6, apg7, apg8

  D. apg5, apg6, apg7, apg8

  Correct Answer: B

• Question 63:

  What is the effect of the command "manage-modules service remove all" when de- commissioning a ViPR SRM host?

  A. It unregisters all installed services

  B. It unregisters all installed licenses

  C. It unregisters the host in Centralized Management

  D. It unregisters and removes all local services

  Correct Answer: A

• Question 64:

  When installing a SolutionPack, the installer places the Reports on the host where the Frontend runs using which service?

  A. Webservice-Gateway

  B. Task-Scheduler

  C. Collector-Manager

  D. APG-Property-Store

  Correct Answer: A

• Question 65:

  You deployed ViPR SRM at a site then added and configured some SolutionPacks. How do you determine the remaining resource capacity before adding additional SolutionPacks?

  A. Use the Planner tool to evaluate the load distribution

  B. Look at the logs of currently installed SolutionPacks to evaluate level of resource usage

  C. Use operation system tools and the provided Evaluation tool to evaluate resource usage

  D. Use Watch4net Health reports to evaluate resource usage

  Correct Answer: D

• Question 66:

  Which default port does the Centralized Management Module use to communicate remote commands to the WebService Gateway?

  A. 48443

  B. 58080

  C. 443

  D. 8443

  Correct Answer: A

• Question 67:

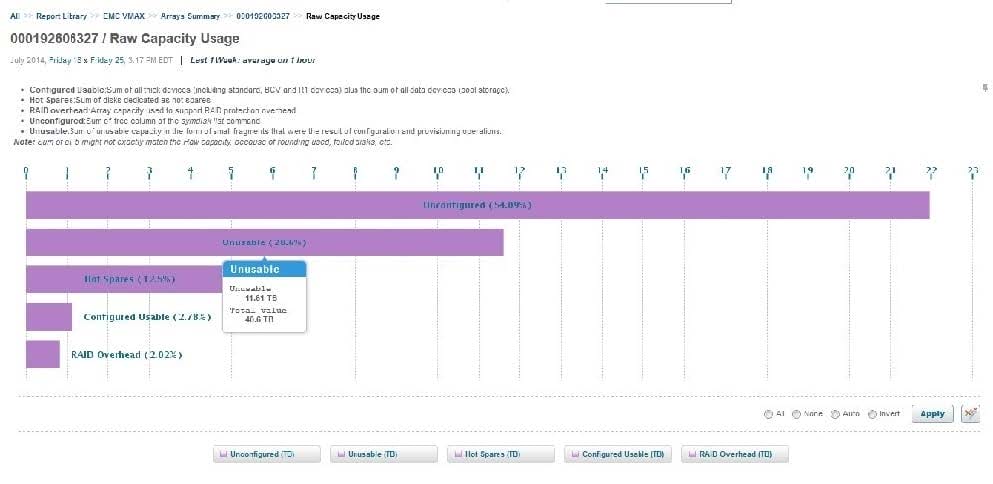

  Refer to the exhibit.



  The array summary, Raw Capacity Usage bar graph shows Unusable and Unconfigured capacity much higher than the configured capacity. What does this indicate?

  A. The licensed storage capacity is much lower than the physical storage capacity. This could be a result of short-stroke drive configuration.

  B. The licensed storage capacity has been incorrectly applied.

  C. The array storage configuration has a misconfigured disk drive setting.

  D. The storage manager has decided to only configure a lower percentage of the total storage.

  Correct Answer: A

• Question 68:

  Why would the VMAX Storage Group Performance Reports not show data after Unisphere for VMAX was installed on the FC connected VMAX Collectors?

  A. VMAX is not registered for performance in Unisphere for VMAX

  B. Unisphere for VMAX cannot be installed on the collector

  C. netcnfg file is not set up correctly

  D. SMI-S password is incorrect

  Correct Answer: A

• Question 69:

  After installing the Centera SolutionPack there are no Centeras showing in the reports and no errors in the logs files. What are the next steps?

  A. Wait a few polling cycles

  B. Reconfigure the Centera Solution Pack

  C. Reinstall Centera CLI

  D. Upgrade Centera Viewer

  Correct Answer: A

• Question 70:

  In the ViPR SRM version 3.5 VMware SolutionPack, what statistics-level needs to be set at the vCenter server to get performance statistics details for the guest VMs?

  A. Statistics-level set to 1

  B. Statistics-level set to 2

  C. Statistics-level set to 3

  D. Statistics-level is not used

  Correct Answer: D
