Aruba Aruba Certifications ACMP_6.4 Questions & Answers

• Question 71:

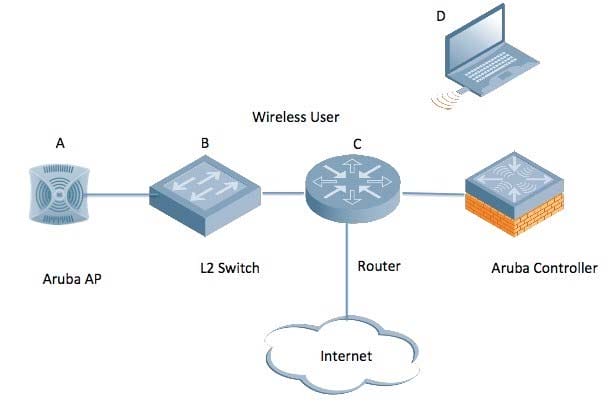

  Referring to the diagram provided for this question, if the Aruba controller is configured to perform L3 switching, what will be the wireless client laptop default gateway?

  A. A

  B. B

  C. C

  D. D

  E. E

  Correct Answer: D

• Question 72:



  In the above diagram, the system shows two Aruba access points. Which VLANs must be configured on trunk link D between the router and Aruba controller to support wireless users when the controller is provisioned for L2 operations?

  A. 10, 101 and 102

  B. 101 and 102

  C. 101, 102 and 103

  D. 10, 101, 102 and 103

  E. 10 and 103

  Correct Answer: A

• Question 73:

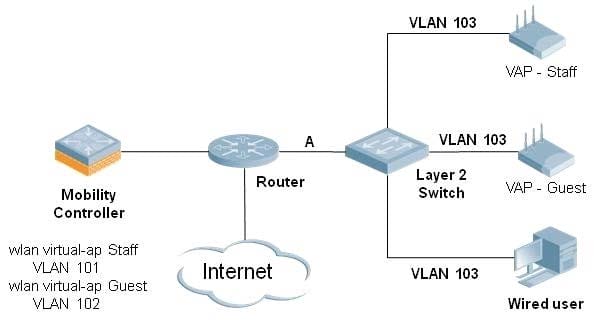

  In the above diagram, the system shows two Aruba access points and a wired user. Which VLAN(s) do

  NOT need to be configured on link A between the L2 switch and router to support the wireless users?

  A. 101 and 102

  B. 101 and 103

  C. 102 and 103

  D. only 101

  E. only 103

  Correct Answer: A

• Question 74:



  In the diagram provided for this question, the Aruba controller terminates one end of a GRE tunnel that

  carries wireless user traffic.

  Where does the other end terminate?

  A. A

  B. B

  C. C

  D. D

  E. A or B

  Correct Answer: A

• Question 75:

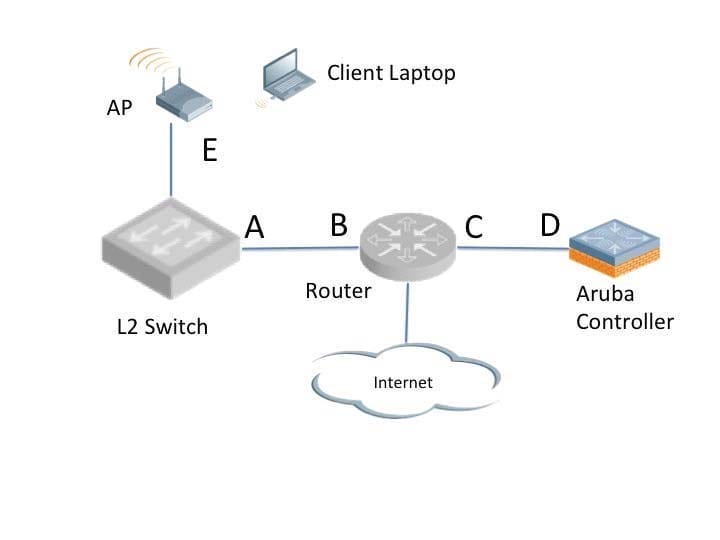

  In the diagram provided for this question, the client laptop is associated with the Aruba AP. The Aruba

  controller is configured to perform L2 switching for this SSID.

  What will be the client laptop default gateway?

  A. A

  B. B

  C. C

  D. D

  E. E

  Correct Answer: C

• Question 76:

  Fast Failover has been implemented between Local 1 and Local 2 separated by Routers. During testing

  Local1 was disabled and all Campus APs backed up to Local 2 flawlessly. But the RAPs did not, they all

  failed.

  What could be the cause?

  A. RAPs should be configured in their own AP-groups

  B. A VPN IP Pool must be configured on Local 2

  C. The RAP whitelist must be ported over to Local 2

  D. IPSec must be enabled on Local 2

  E. RAPs are not supported by Fast Failover

  Correct Answer: E

• Question 77:

  When configuring Fast Failover what are the 3 HA roles that can be selected? (Choose three)

  A. Primary

  B. Active

  C. Dual

  D. Standby

  E. Backup

  Correct Answer: BCD

• Question 78:

  Which of the following is an Aruba Layer 3 redundancy mechanism?(Choose two)

  A. HA

  B. Backup LMS-IP

  C. VRRP

  D. Backup AP group

  E. ARM

  Correct Answer: AB

• Question 79:

  Which of the following configurations can accept a VLAN pool?(Choose two) A. Trunk native VLAN

  B. Virtual AP profile

  C. User Role

  D. Server derived role

  E. FW Policies

  Correct Answer: BC

• Question 80:

  Which parameter(s) does a Master controller use to determine where a provisioned AP should terminate its GRE tunnel?

  A. the IP address of the AP

  B. the MAC address of the AP

  C. the IP address of the switch nearest to the AP

  D. the name and group settings of the AP

  E. the VLAN the AP is attached to

  Correct Answer: D
