Aruba Aruba Certifications ACMP_6.4 Questions & Answers

• Question 61:

  In a master-local controller scenario, where is the mobility domain defined?

  A. the AP group

  B. the master controller

  C. the local controller

  D. the master and the local controllers

  E. the master and the local controllers where roaming is needed

  Correct Answer: B

• Question 62:

  How many Aruba controllers can be added to a single mobility domain?

  A. 64 controllers of any type

  B. 128 controllers supporting 2000 users

  C. 256 controllers with no more than 1024 subnets

  D. Controllers supporting up to 6000 AP's

  E. There is no controller limit

  Correct Answer: E

• Question 63:

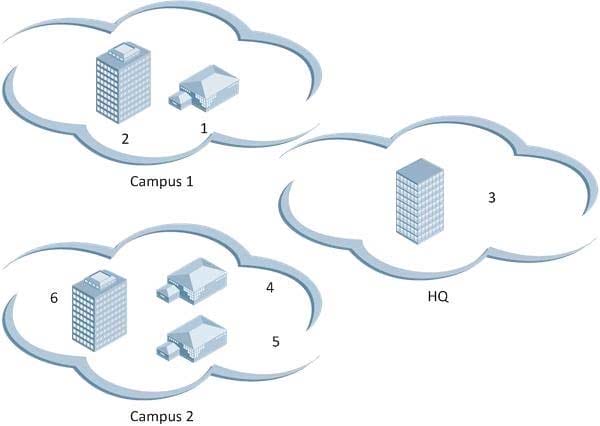

  As illustrated in the above diagram, a company has two campus locations and a building headquarters all

  located in different cities.

  Following best practices, what would be the best way to construct mobility domains for the company?

  A. Buildings (1, 2) in one domain and Buildings (3, 4, 5, 6) in one domain

  B. Buildings (1, 2) in one domain, Building (3) in one domain, and Buildings (4, 5, 6) in one domain

  C. Buildings (1, 2, 4, 5, 6) in one domain and Building (3) in one domain

  D. Buildings (1, 2, 3, 4, 5, 6) in one domain

  E. Buildings (1) in one domain building (4) in one domain

  Correct Answer: B

• Question 64:

  With Fast-Failover disabled, to which IP address should the Aruba AP terminate its GRE tunnel for layer 2 controller redundancy to work and to support failover of access points?

  A. VRRP IP address

  B. management IP of an Aruba controller

  C. management IP of the backup Aruba controller

  D. HSRP IP address

  E. Loopback IP address of backup Aruba controller

  Correct Answer: A

• Question 65:

  Which protocols does the Aruba controller utilize for controller redundancy (Choose two)?

  A. HSRP

  B. VRRP

  C. HA

  D. VPN

  E. IP-IP

  Correct Answer: BC

• Question 66:

  What are two different methods of configuring AP redundancy between 2 local controllers?(Choose two.)

  A. Fast-Failover

  B. Configure the locals as remote nodes

  C. Use named VLANS

  D. Backup LMS IP

  E. AP Redundancy can only be configured between a Master and Local

  Correct Answer: AD

• Question 67:

  Where should mobility domains be enabled in a network with 1 master, 1 backup master and 5 local controllers?

  A. Only on the master controller

  B. All the local controllers in the network

  C. All the controllers where the client is allowed to roam

  D. Master and backup master

  E. Only on the backup master

  Correct Answer: C

• Question 68:

  Screenshots of the Captive Portal authentication profile and server group of a guest network are displayed

  above.

  How was the user authenticated?

  A. with a radius server called Radius01

  B. with the Internal database

  C. with a radius server called Internal

  D. with another form of authentication

  E. user wasn't authenticated against any server

  Correct Answer: E

• Question 69:

  When the controller is configured for Captive Portal and the user is only required to provide an email address for authentication, which option is configured in the GUI?

  A. enable termination

  B. enable guest logon

  C. enable user logon

  D. eap method

  E. disable CP Login

  Correct Answer: B

• Question 70:

  When configuring Captive Portal, which protocols are supported when accessing the Captive Portal? (Choose two.)

  A. HTTPS

  B. VPN

  C. HTTP

  D. TELNET

  E. SSH

  Correct Answer: AC
