NI NI Certifications CLAD Questions & Answers

• Question 81:

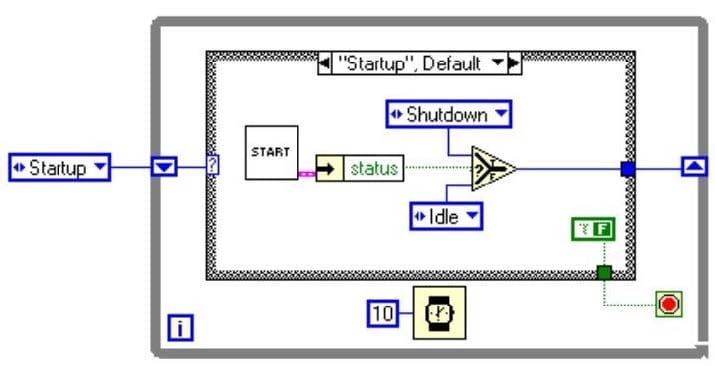

  The following block diagram represents which common type of VI architecture?



  A. Multiple Case Structure VI

  B. General VI

  C. State Machine VI

  D. Parallel Loop VI

  Correct Answer: C

• Question 82:

  The most efficient method for creating an array is:

  A. Using a For loop with Auto-indexing

  B. Placing a build array function in a While loop

  C. Initializing an array and then replacing elements in a While loop

  D. Using a While loop with Auto-Indexing

  Correct Answer: A

• Question 83:

  Which of the following statements is false?

  A. A SubVI connector pane defines where to wire inputs and outputs

  B. The color of a SubVI connector pane terminal matches the data type it is connected to

  C. You must have an icon/connector to use a SubVI

  D. A SubVI icon can be edited from the functions palette

  Correct Answer: D

• Question 84:

  What is the result of the following Array addition?



  A. a.1-D Array of {80, 20, 40, 10, -60}

  B. b.1-D Array of {120, 30, -60} C. c.1-D Array of {120, 30}

  D. d.2-D Array of {{120, 90, 20}, {60, 30, -40}}

  Correct Answer: C

• Question 85:

  Which of the following does not conform to data flow programming paradigm?

  A. Shift Registers

  B. Tunnels

  C. SubVIs

  D. Local Variables

  Correct Answer: D

• Question 86:

  You must store data that other engineers must analyze with Microsoft Excel. Which file storage format should you use?

  A. Tab-delimited ASCII

  B. Custom binary format

  C. TDM

  D. Data log

  Correct Answer: A

• Question 87:

  Which of the following will cause an event to be captured by the LabVIEW Event Structure?

  A. Changing a value on a Front Panel control via a mouse click

  B. Update of a Front Panel control using a property node

  C. Programmatic update of a Front Panel control via a control reference

  D. Using VI Server to update a Front Panel control

  Correct Answer: A

• Question 88:

  You are inputting data that represents a circle. The circle data includes an x position, a y position, and a radius. All three pieces of data are double-precision. In the future, you might need to store the color of the circle, represented as an integer. How should you represent the circle on your front panel window?

  A. Three separate controls for the two positions and the radius.

  B. A cluster containing all of the data.

  C. A type definition containing a cluster.

  D. An array with three elements.

  Correct Answer: C

• Question 89:

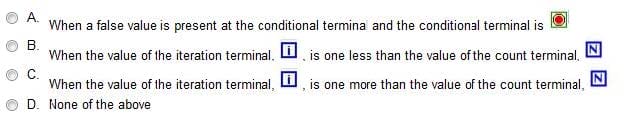

  Under which of the following conditions does a For loop stop executing?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: B

• Question 90:

  Which timing function (VI) is the best choice for timing control logic in applications that run for extended periods of time?



  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: C
