Certified LabVIEW Associate Developer Examination

Exam Details

  • Exam Code
    :CLAD
  • Exam Name
    :Certified LabVIEW Associate Developer Examination
  • Certification
    :Clad Certification
  • Vendor
    :NI
  • Total Questions
    :114 Q&As
  • Last Updated
    :

NI Clad Certification CLAD Questions & Answers

  • Question 11:

    When run, this VI will: A. Error because no file path and no prompt are specified

    B. Write to a default text file in the application directory

    C. Prompt for the location of an existing file and write to that file

    D. Prompt for a location to create a text file and write to that file

  • Question 12:

    The SubVI is opened and then run three times.

    What is the value of Sum when the VI completes execution?

    A. Indeterminate

    B. 15

    C. 5

    D. 10

  • Question 13:

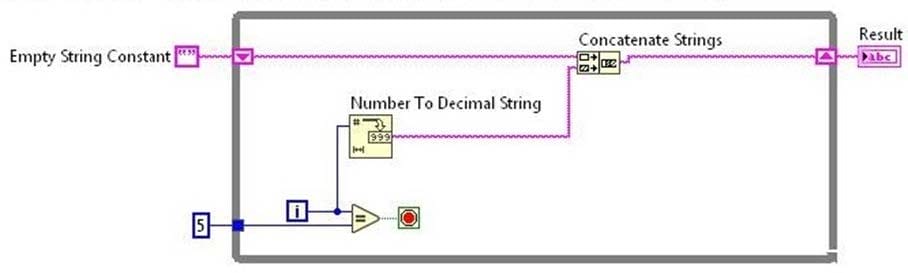

    What string will be displayed in the Result indicator after the VI completes execution?

    A. ''''12345

    B. 12345

    C. ''''012345

    D. 012345

  • Question 14:

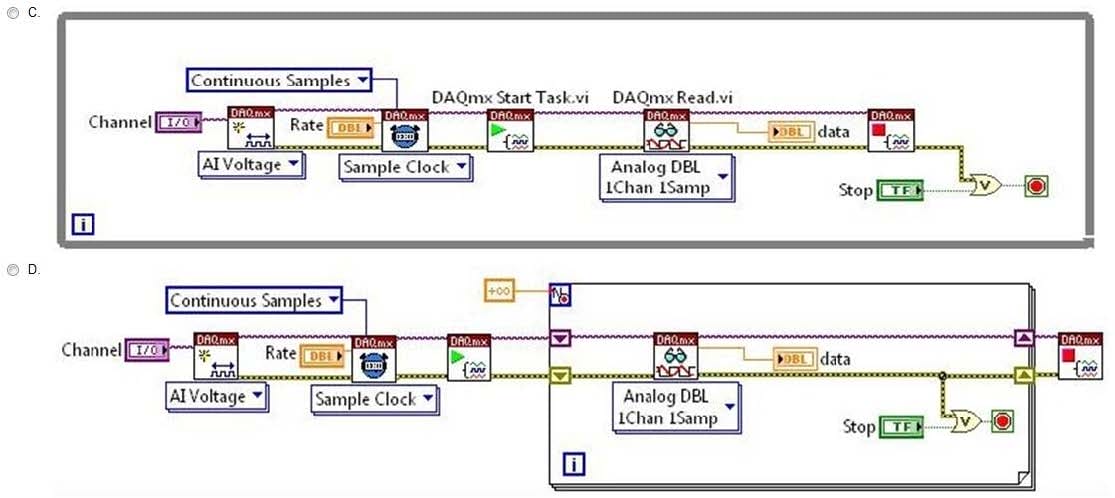

    Which VI will acquire data indefinitely until the stop button is pressed or an error occurs?

    A. Option A

    B. Option B

    C. Option C

    D. Option D

  • Question 15:

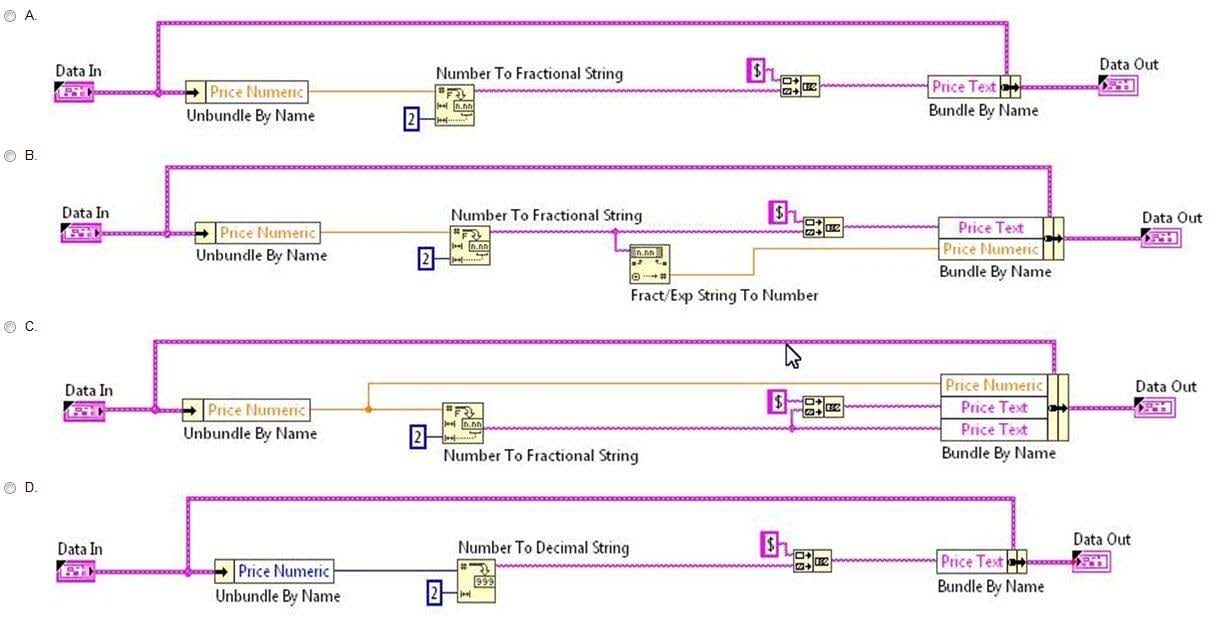

    Your application has prices stored as numeric values in the format XXX.XX. Your VI must convert the price

    to text in the format $XXX.XX and make the text price available for later display. The original numeric must

    also be retained unchanged.

    Which VI best meets these requirements?

    A. Option A

    B. Option B

    C. Option C

    D. Option D

  • Question 16:

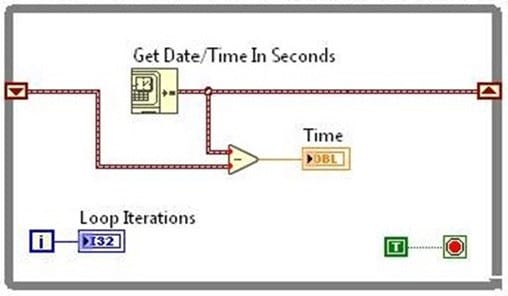

    After this VI has run 3 times, what value is displayed in the indicators Loop Iterations and Time?

    A. Loop Iterations = 3, Time = Seconds between the 2nd and 3rd time the VI ran.

    B. Loop Iterations = 0, Time = Seconds between the 1st and 3rd time the VI ran.

    C. Loop Iterations = 3, Time = Seconds between the 1st and 3rd time the VI ran.

    D. Loop Iterations = 0, Time = Seconds between the 2nd and 3rd time the VI ran.

  • Question 17:

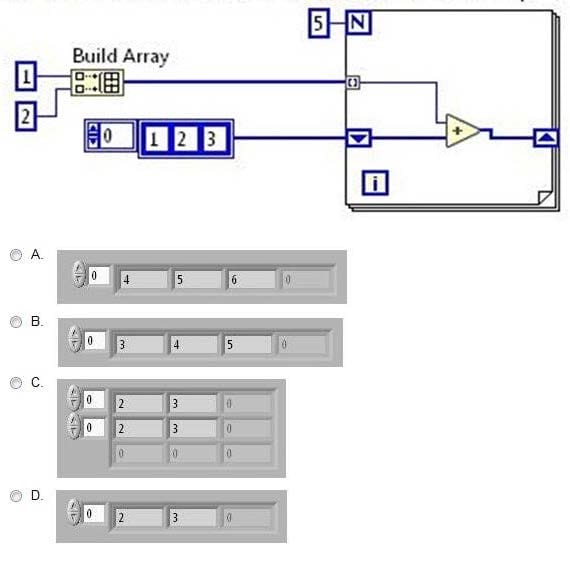

    You create an indicator from the shift register terminal on the right side of the loop. What will that indicator look like after the VI completes execution?

    A. Option A

    B. Option B

    C. Option C

    D. Option D

  • Question 18:

    Which code will remove any and all samples in the array that are between 2 and 3, exclusive?

    A. Option A

    B. Option B

    C. Option C

    D. Option D

  • Question 19:

    Which is the correct order for the signal to propagate through components when acquiring a signal?

    A. Sensor>Terminal Block>DAQ>LabVIEW

    B. DAQ>Sensor>Terminal Block>LabVIEW

    C. Terminal Block>LabVIEW>Sensor>DAQ

    D. Sensor>DAQ>Terminal Block>LabVIEW

  • Question 20:

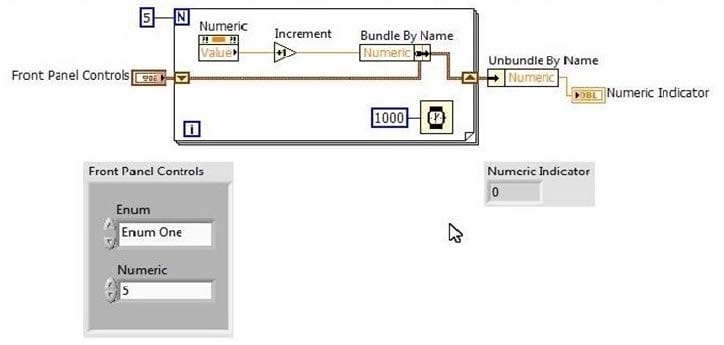

    The VI begins execution with the value of Numeric as 5, at the end of the 4th loop iteration (i=3), the user

    changes the front panel control Numeric to value 2.

    What value will be displayed in the front panel Numeric indicator after the VI completes execution?

    A. 3

    B. 10

    C. 5

    D. 6
