NI NI Certifications CLAD Questions & Answers

• Question 71:

  In the figure below, what will Result equal when this calculation is executed?



  B. 70

  C. 65

  D. Indeterminate

  Correct Answer: B

• Question 72:

  The function of a Cluster is to:

  A. Allow grouping of mixed data types into logical structures.

  B. Present data on the Front Panel using charts or graphs.

  C. Provide a means of differentiating between data types on the Block Diagram.

  D. Separate data objects by data type on the Front Panel.

  Correct Answer: A

• Question 73:

  Can Probes be attached to objects on the Front Panel?

  A. Yes

  B. No

  Correct Answer: B

• Question 74:

  Which of the following statements regarding Array constants are NOT true?

  A. When you create an Array constant on the block diagram, it is not visible on the Front Panel.

  B. You cannot resize an Array constant to include more than one element.

  C. You can copy or drag an existing Array on the Front Panel to the Block Diagram to create a constant of the same data type.

  D. All array operations can be performed on an Array constant

  Correct Answer: B

• Question 75:

  Which VI memory components are ALWAYS S resident for a SubVI? (Choose all apply)

  A. Data Space

  B. Front Panel

  C. Block Diagram

  D. Code

  Correct Answer: AD

• Question 76:

  Which of the following apply to Property Nodes? (Choose all apply)

  A. Property Nodes allow attributes of front panel objects to be programmatically manipulated.

  B. Property Nodes can be used to u pdate the values contained in a front panel object.

  C. More than one Property Node can be used for a single front panel object.

  D. Property Nodes contained in a SubVI will always cause the front panel to be loaded in memory.

  Correct Answer: ABCD

• Question 77:

  If an input name on the Show Context Help window is in bold for a SubVI, which of the following conditions are true? (Choose all apply)

  A. Input values must be scalar.

  B. An input is recommended, but not required.

  C. An input is required.

  D. A broken run arrow will result unless the input is wired.

  Correct Answer: CD

• Question 78:

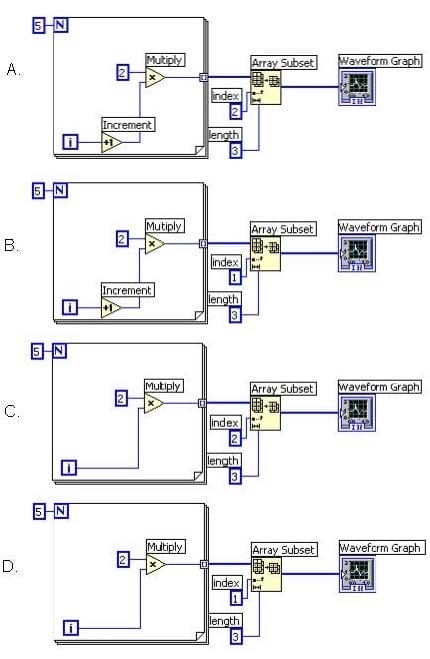

  Which of the following Block Diagrams could produce this result in Waveform Graph?





  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: A

• Question 79:

  For implementing state diagrams that allow future application scalability, the best choice for a base structure is?

  A. Sequence structure

  B. Case structure

  C. Formula node

  D. Object-Oriented structure

  Correct Answer: B

• Question 80:

  Which of the following statements is true about the iteration terminal



  ?

  A. It returns the number of times the loop has executed

  B. It returns the number of times the loop has executed, plus one

  C. It returns the number of times the loop has executed, minus one

  D. It returns a constant number

  Correct Answer: C
