• Question 51:

  Which of the following is NOT a traditional debugging feature used to help find errors in a VI:

  A. Highlight Execution.

  B. Single Stepping

  C. Breakpoints

  D. Stop Values

  Correct Answer: D

• Question 52:

  Which of the following will allow you to have multiple plots on a Waveform Graph?

  A. Bundle two 1D arrays of X and Y data together for each plot. Then build an array of these clusters and wire it to the Waveform Graph indicator.

  B. Build an n-dimensional array of data with each plot in a separate row (or column) in the array, then wire the array to the Waveform Graph indicator.

  C. Bundle the elements of each waveform into a cluster and build an array of these clusters, then wire the array to the Waveform Graph indicator.

  D. Both B. and C.

  Correct Answer: D

• Question 53:

  Which combination of words correctly completes the following statement?

  Unlike__________, which display only the most recent array of values written to them, ___________ update periodically and maintain a history of the past data.

  A. graphs; charts

  B. charts; plots

  C. plots; graphs

  D. charts; graphs

  Correct Answer: A

• Question 54:

  Which of the following statements is true regarding the use of Coercion Dots?

  A. Coercion Dots improve program performance.

  B. Coercion Dots represent a conversion from one data type to another.

  C. Coercion Dots increases memory usage

  D. Both A. and B.

  E. Both B. and C.

  Correct Answer: E

• Question 55:

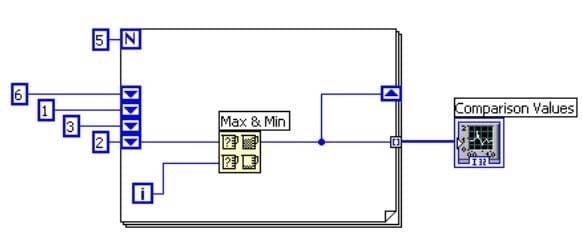

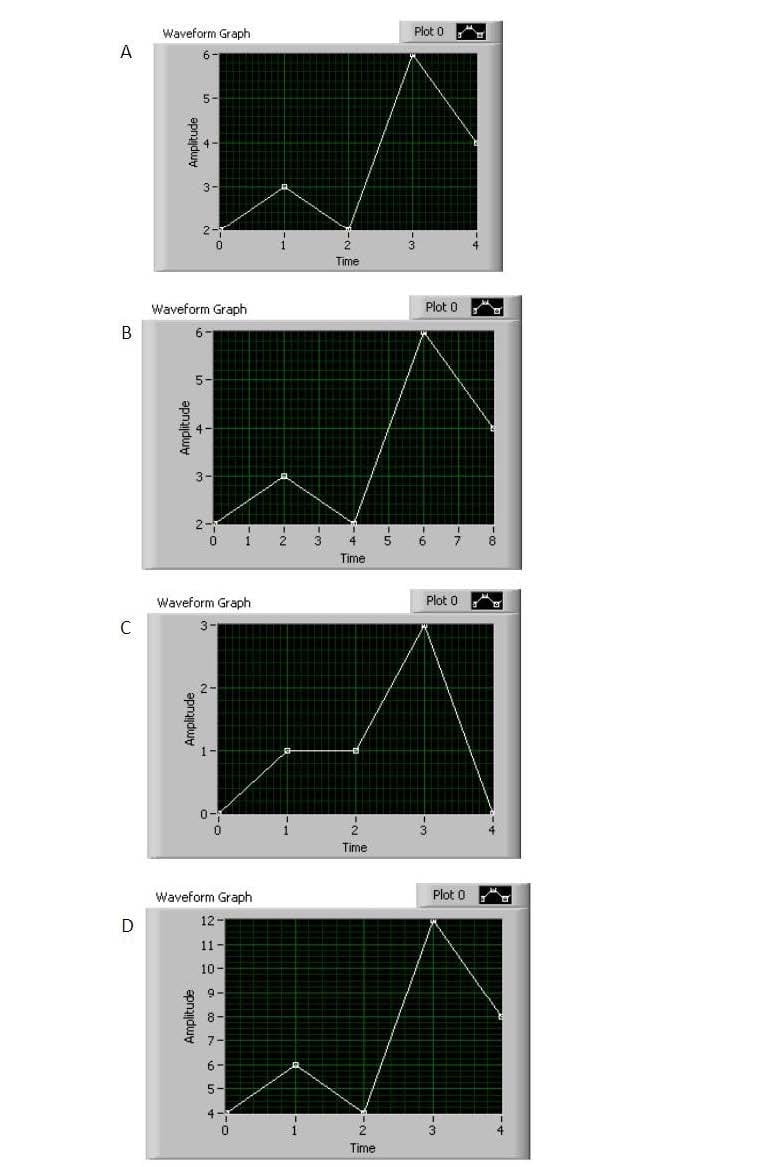

  Which of the following graphs matches the result in Comparison Values after the following code has executed?





  A. Option A

  B. Option B

  C. Option C

  D. Option D

  Correct Answer: A

• Question 56:

  Which of the following statements is true?

  A. The default setting for a tunnel into or out of a For Loop has auto-indexing enabled if the data being passed is an array.

  B. The default setting for a tunnel into or out of a While Loop has auto-indexing disabled if the data being passed is an array.

  C. Both A. and B. are trued.

  D. None of the above

  Correct Answer: C

• Question 57:

  Which of the following statements is NOT valid?

  A. You can make a Cluster of Clusters.

  B. You can make an Array of Arrays.

  C. You can make a Cluster of Arrays.

  D. You can make an Array of Clusters.

  Correct Answer: B

• Question 58:

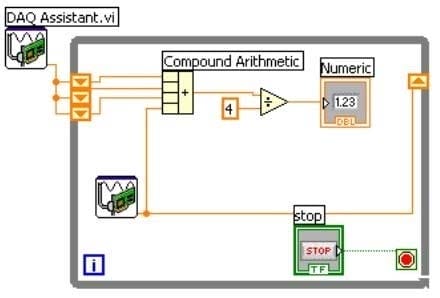

  Which of the following accurately describes the output that results from execution of the following loop?



  A. The last three values from the DAQ Assistant will be displayed.

  B. A running average of all measurements will be displayed.

  C. An average of the last four measurements will be displayed.

  D. None of the above

  Correct Answer: C

• Question 59:

  Which of the following statements is true regarding the execution of the following code?

  A. The loop will iterate 51 times.

  B. The loop will iterate 50 times.

  C. The loop will iterate 49 times.

  D. A For Loop that has a 50 wired to the count terminal will perform the same operation.

  Correct Answer: A

• Question 60:

  Which of the following methods is NOT a method to create a 1-D Array?

  A. Place an Array Shell on the Front Panel and drag a Control into the shell.

  B. Use a While Loop with auto-indexing disabled.

  C. Use a For Loop with auto-indexing enabled.

  D. Use the Initialize Array function.

  Correct Answer: B
