Adobe ACE InDesign 9A0-142 Questions & Answers

• Question 41:

  Andy works as a Web developer for company Inc. He has created a Web page using InDesign CS5 with an extensive amount of information. He wants to use links for the convenience of the users of his Website so that they can directly get to a particular section on the current Web page.

  Which of the following panels will Andy use to accomplish this task?

  A. Links panel

  B. Pages panel

  C. Preflight panel

  D. Hyperlinks panel

  Correct Answer: D

  The Hyperlinks panel is a feature of InDesign CS5 which is used to create hyperlinks in a document so that when a user exports to Adobe PDF or SWF in InDesign, a viewer can click a link to jump to other locations in the same document, to other documents, or to websites. To open the Hyperlinks panel in InDesign CS5, use one of the following steps: Choose Window > Interactive > Hyperlinks. Choose Window > Type and Tables > Cross-References.





• Question 42:

  You have created a Web page using InDesign CS5 with an extensive amount of information. You want to use hyperlinks for the convenience of the users of the Website so that the users can directly get to a particular section on the current Web page.

  Which of the following will you specify in the 'Link To' menu of the New Hyperlink dialogue box to create hyperlinks to the Web page?

  A. Shared Destination

  B. Email

  C. URL

  D. Page

  Correct Answer: C

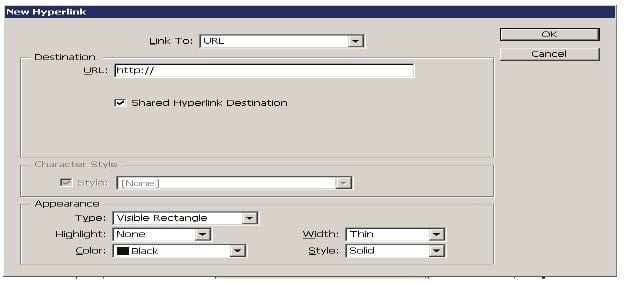

  When you are creating a hyperlink to a Webpage, the URL option will be specified in the 'Link To' menu as the hyperlink destination. When a user is creating a hyperlink to a webpage the following steps should be followed:

  1.Select the text, frame, or graphic that needs to be the hyperlink's source.

  2.Choose Window>Interactive>Hyperlink to open the Hyperlink panel.

  3.In the URL text box of the Hyperlink panel, type or paste the URL name (such as http://www.company.com) which you want to use as hyperlink destination.

  4.Choose New Hyperlink from the Hyperlinks panel.



  5.Choose URL from the Link To menu, specify appearance options, and click OK.

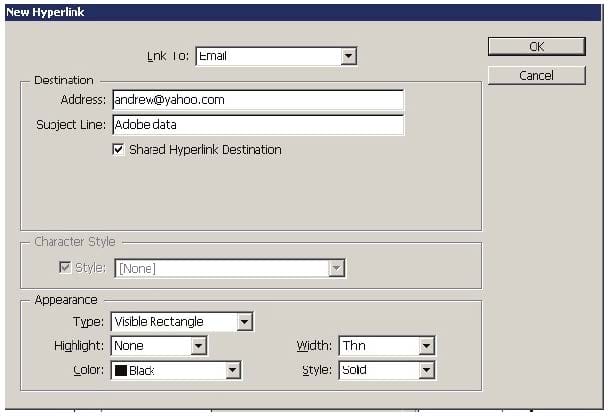

  Answer: B is incorrect. Specify the Email option in the 'Link To' menu to create a hyperlink destination to an email. If a user wants to create hyperlink to an email massage then following steps should be follow:

  1.Select the text, frame, or graphic which a user wants to be the source of the hyperlink.

  2.Choose New Hyperlink in the Hyperlinks panel menu, or click the Create New Hyperlink buttonat the bottom of the Hyperlinks panel.

  3.In the New Hyperlink dialog box, choose Email from the Link To menu.



  4.For Address, type the email address, such as [email protected].

  5.For Subject Line, type the text that appears in the subject line of the email message.

  6.Select Shared Hyperlink Destination if the email message needs to be stored in the Hyperlinks panel for easy reuse.

  7.Specify the appearance of the hyperlink source as per requirement, and then click OK.

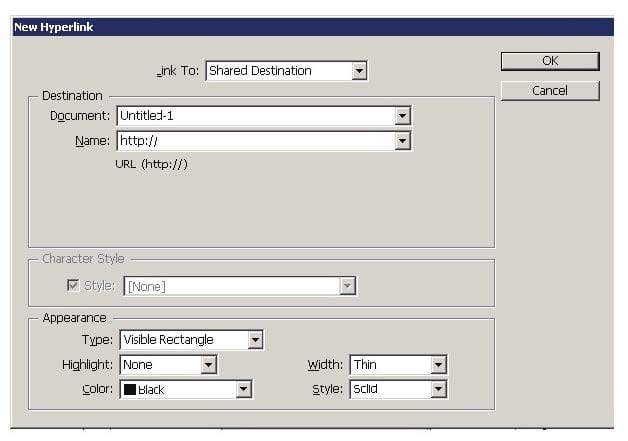

  Answer: A is incorrect. Specify the Shared Destination option in the 'Link To' menu to create a hyperlink destination to a shared destination.

  1.Select the text, frame, or graphic which a user wants to be the source of the hyperlink.

  2.Choose New Hyperlink in the Hyperlinks panel menu, or click the Create New Hyperlink button at the bottom of the Hyperlinks panel.

  3.In the New Hyperlink dialog box, choose Shared Destination from the 'Link To' menu.



  4.For Document, select the document containing the destination that a user wants to jump to. All open documents that have been saved are listed in the pop-up menu. If the document which a user is looking for is not open, select Browse in the pop-up menu, locate the file, and then click Open.

  5.Choose a destination from the Name menu.

  6.Specify hyperlink appearance options, and then click OK. Answer: D is incorrect. Specify the Page option in the 'Link To' menu to create a hyperlink destination to a Page.

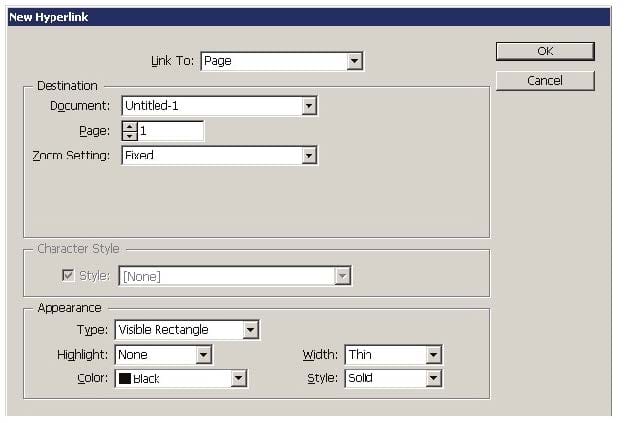

  To create a hyperlink to a page take the following steps:

  1.Select the text, frame, or graphic you want to be the source of the hyperlink.

  2.Choose New Hyperlink in the Hyperlinks panel menu, or click the Create New Hyperlink button at the bottom of the Hyperlinks panel.

  3.In the New Hyperlink dialog box, choose Page from the 'Link To' menu.



  4.For Document, select the document containing the destination that a user wants to jump to. All open documents that have been saved are listed in the pop-up menu. If the document which a user is looking for not open, select Browse in the pop-up menu, locate the file, and then click Open.

  5.For Page, specify the page number a user wants to jump to.

  6.For Zoom Setting, do one of the following to select the view state of the page being jumped to: Select Fixed to display the magnification level and page position that were in effect when the link is created.

  Select Fit View to display the visible portion of the current page as the destination. Select Fit In Window to display the current page in the destination window. Select Fit Width or Fit Height to display the width or height of the current page in the destination window.

  Select Fit Visible to display the page so that its text and graphics fit the width of the window, which usually means that the margins are not displayed. Select Inherit Zoom to display the destination window at the magnification level the

  reader uses when the hyperlink is clicked.

  7.Specify appearance options, and then click OK.

• Question 43:

  You work as a Web Developer for company Inc. You are creating a document in InDesign CS5. You want to add imported XML data after the current data in your document.

  What will you do to accomplish the task?

  A. Select the Import into Selected Element Content check box in the Import XML dialog box.

  B. Select the Merge Content check box in the Import XML dialog box.

  C. Select the Append Content check box in the Import XML dialog box.

  D. Select the Only Import Elements That Match Existing Structure check box in the Import XML dialog box.

  Correct Answer: C

  If you select the Append Content check box in the Import XML dialog box, InDesign adds the imported XML data after the current data and duplicates similar hierarchies and same-named data.

  Answer: B is incorrect. If you select the Merge Content check box in the Import XML dialog box, InDesign merges the XML file into the existing XML data, flowing into the same structure, overriding same-named data, and adding new data.

  Answer: A is incorrect. If you select the Import into Selected Element Content check box in the Import XML dialog box, InDesign brings the imported XML data into the currently selected object rather than into a new frame.

  Answer: D is incorrect. If you select the Only Import Elements That Match Existing Structure check box in the Import XML dialog box, elements in the imported file that vary from or are not defined by the existing InDesign document will strip

  out.

• Question 44:

  You have two InDesign files. You would like to add the content of one file to another.

  Which of the following methods will you choose to accomplish this task? Each correct answer represents a complete solution. Choose all that apply.

  A. Drag the content of the first file and drop it to the other file.

  B. Choose File > Place and locate the first file and place it to the second file.

  C. Copy the content of first document and paste it on the other file.

  D. Import the content of the first file to the second document.

  Correct Answer: ABC

  These are all correct methods to exchange content between files. You can copy or drag the content between opened files, or choose File > place to add content from a file in the local machine.

  Answer: D is incorrect. You cannot import the content of the one file to the other file in InDesign.

• Question 45:

  In which of the following formats should bitmaps such as photos and scans be saved for creating graphics files? Each correct answer represents a complete solution. Choose all that apply.

  A. WMF

  B. GIF

  C. BMP

  D. SCT

  Correct Answer: BCD

  Following are the two basic rules for creating graphics files:

  1.Line art should be saved in the EPS, PDF, Adobe Illustrator, WMF, EMF, or PICT format.

  2.Bitmaps such as photos and scans should be saved in the TIFF, Adobe Photoshop, PNG, JPEG, PCX, BMP, GIF, SCT, or PICT format.

• Question 46:

  You want to print a composite proof of a document to examine the results of color trapping manually done in the document.

  Which of the following Overprint settings on the Advanced pane of the Print dialog box should you choose to accomplish the task?

  A. Preserve

  B. Simulate

  C. Discard

  D. Print as Bitmap

  Correct Answer: B

  When a user prints a composite proof, he should choose the Simulate option from the Overprints menu on the Advanced pane of the Print dialog box. The Print dialog box can be opened by choosing File > Print.

  Answer: C In most cases, only separation devices support overprinting. Therefore, if the print device does not support overprinting, it is better to choose the Discard option from the Overprints menu on the Advanced pane of the Print dialog

  box.

  Answer: A This option preserves overprints that do not interact with transparent objects.

  Answer: D The Print as Bitmap option is used to convert the vector image into bitmap.

• Question 47:

  Adam works as a Web developer for company Inc. He has created a Web page using InDesign CS5 with an extensive amount of information. He wants to use links for the convenience of the users of his Website so that the users can directly get to a particular section on the current Web page.

  Which of the following panels will Adam use to accomplish this task?

  A. Links panel

  B. Preflight panel

  C. Hyperlink panel

  D. Pages panel

  Correct Answer: C

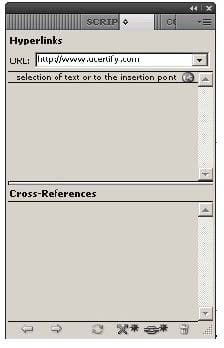

  The Hyperlinks panel is a feature of InDesign CS5 which is used to create hyperlinks in a document so that when a user exports to Adobe PDF or SWF in InDesign, a viewer can click a link to jump to other locations in the same document, to other documents, or to websites. To open the Hyperlinks panel in InDesign CS5, use one of the following steps: Choose Window > Interactive > Hyperlinks. Choose Window > Type and Tables > Cross-References.

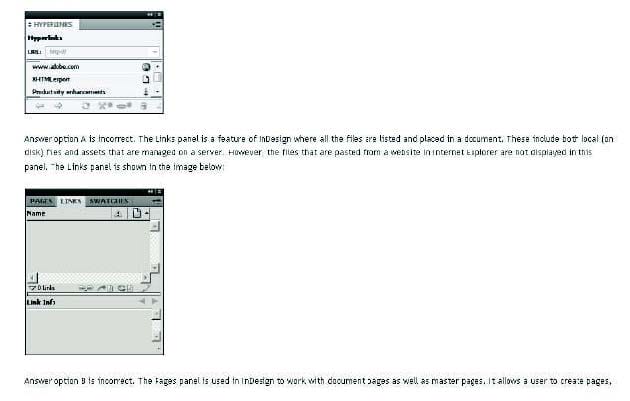

  Answer: A is incorrect. The Links panel is a feature of InDesign where all the files are listed and placed in a document. These include both local (on disk) files and assets that are managed on a server. However, the files that are pasted from a website in Internet Explorer are not displayed in this panel. The Links panel is shown in the image below:

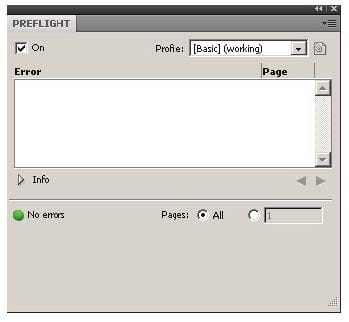

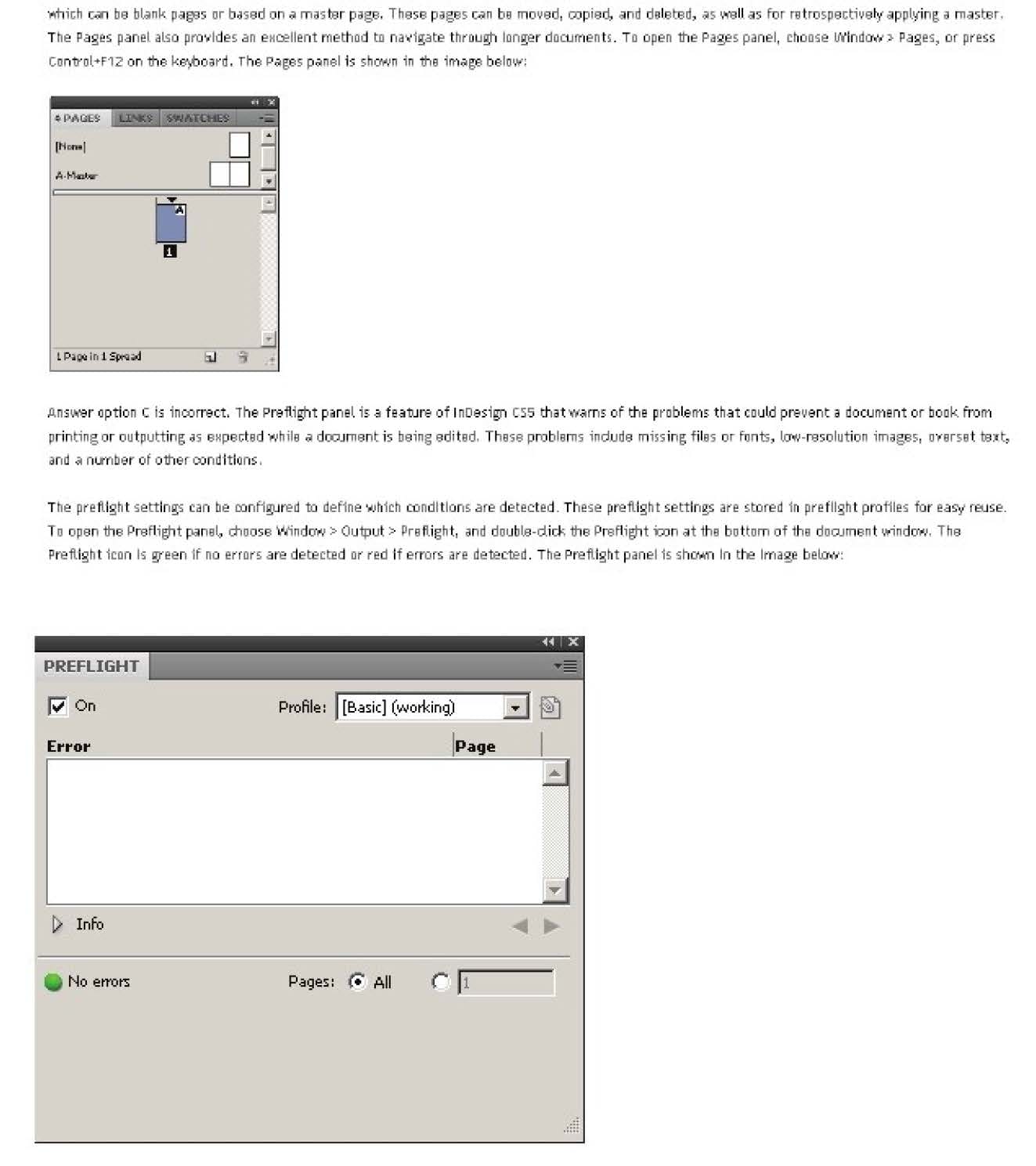

  Answer: B is incorrect. The Preflight panel is a feature of InDesign CS5 that warns of the problems that could prevent a document or book from printing or outputting as expected while a document is being edited. These problems include missing files or fonts, low-resolution images, overset text, and a number of other conditions.



  The preflight settings can be configured to define which conditions are detected. These preflight settings are stored in preflight profiles for easy reuse. To open the Preflight panel, choose Window > Output > Preflight, and double-click the Preflight icon at the bottom of the document window. The Preflight icon is green if no errors are detected or red if errors are detected. The Preflight panel is shown in the image below.



• Question 48:

  Which of the following are included in the graphics file formats InDesign imports? Each correct answer represents a complete solution. Choose all that apply.

  A. EPS

  B. GIF

  C. SAP

  D. BMP

  Correct Answer: ABD

  Following are included in the graphics file formats InDesign imports:

  1.BMP. It is the native Windows bitmap format.

  2.EPS. EPS or Encapsulated PostScript file format is favored by professional publishers. One of its color-separated variant is DCS or Desktop Color Separation.

  3.GIF. GIF or Graphics Interchange Format is common in Web documents.

  4.Illustrator. It is similar to EPS.

  5.InDesign. Other InDesign documents can be imported, as if they are graphics. Specific pages can also be chosen to be imported.

  6.JPEG. JPEG or Joint Photographic Expert Group compresses bitmap format used on the Web.

  7.PCX. PCX or PC Paintbrush was very popular in earlier versions of Windows and DOS programs. It has been supplanted by other formats.

  8.PDF. PDF or Portable Document Format is a variant of PostScript and is used for Web-based, network-based, and CD-based documents.

  9.Photoshop. Photoshop is the native format in Adobe Photoshop 5.0 through CS5.

  10.PICT. PICT or Picture is used in professional documents.

  11.PNG. PNG or Portable Network Graphics is more capable than GIF.

  12.Scitex CT. It is the continuous-tone bitmap format used on Scitex prepress systems.

  13.TIFF. TIFF or Tagged Image File Format is the bitmap standard for image editors and publishers.

  14.Windows Metafile. Windows Metafile is used in professional documents.

• Question 49:

  Which of the following options will you select to sort the entries alphabetically in the table of contents in the selected style while generating or editing the table of contents?

  A. Create PDF Bookmarks

  B. Between Entry And Number

  C. Include Text On Hidden Layers

  D. Sort Entries in Alphabetical Order

  Correct Answer: D

  You should select Sort Entries in Alphabetical Order option to sort the entries alphabetically in the table of contents in the selected style. This option is useful for creating simple lists, such as lists of advertisers.

  Answer: A is incorrect. Create PDF Bookmarks option should be selected if you want the table of contents entries to appear in the Bookmarks panel of Adobe Acrobat or Adobe Reader when the document is exported to PDF.

  Answer: C is incorrect. Include Text On Hidden Layers option should be selected if you want the paragraphs on hidden layers to be included in your table of contents.

  Answer: B is incorrect. Between Entry And Number option should be selected to specify which characters you want between the table of contents entry and its page number.

• Question 50:

  Which of the following variables insert the first or last occurrence on the page of the text to which a specified style is applied?

  A. Chapter Number variables

  B. Running Header variables

  C. Custom Text variables

  D. Last Page Number variables

  Correct Answer: B

  The Running Header variables insert the first or last occurrence on the page of the text to which the specified style is applied.

  Answer: D is incorrect. Last Page Number variables are commonly used for inserting placeholder text, or a text string that may need to be changed quickly.

  Answer: A is incorrect. Chapter Number variables insert the chapter number. You can insert text before or after the chapter number and you can also specify a numbering style.

  Answer: C is incorrect. Custom Text variables are commonly used for inserting placeholder text or a text string that may need to be changed quickly.
