Microsoft 98-366 Online Practice Questions and Exam Preparation

Microsoft 98-366 Online Questions & Answers

• Question 161:

  The topology of a local area network (LAN) is defined by the:

  A. Number of devices to connect.
  B. Physical and logical characteristics.
  C. Distance between workstations.
  D. Type of cable being used.
  B. Physical and logical characteristics.

  ---

  Network topology is the arrangement of the various elements (links, nodes, etc.) of a computer network. Essentially, it is the topological structure of a network and may be depicted physically or logically.

• Question 162:

  This question requires that you evaluate the underlined text to determine if it is correct.

  The loopback address of your computer is "127.0.0.1".

  Select the correct answer if the underlined text does not make the statement correct. Select 'No change is needed" if the underlined text makes the statement correct.

  A. 10.0.1.1
  B. 169.254.0.5
  C. 192168.1.1
  D. No change is needed
  D. No change is needed

  ---

  127.0.0.1 is the IPv4 loopback address.

• Question 163:

  Which technology provides the highest bit rate?

  A. T1
  B. El
  C. DS3
  D. ISDN
  C. DS3

  ---

  A DS3 line (sometimes also referred to as T3) is a dedicated, high bandwidth, fiber circuit with a speed of 45 Mbps.

  Incorrect: Not A: T1, 1.544Mbps Not B: E1, 2.048Mbps Not D: SDN 30B+1D (all 64K) ~ E1: 1.930Mbps

• Question 164:

  The ping tool is used to: (Choose two.)

  A. Determine the network portion of a host address.
  B. Self-test a host's own network interface.
  C. Determine whether a host is reachable.
  D. Manage a host's session when UDP is used.
  B. Self-test a host's own network interface.
  C. Determine whether a host is reachable.

  ---

  Ping is a computer network administration software utility used to test the reachability of a host on an Internet Protocol (IP) network and to measure the round-trip time for messages sent from the originating host to a destination computer. To have your PC ping itself, type ping 127.0.0.1.

• Question 165:

  You are setting up a network computer game.

  You need to open up ports on your firewall so your friends can join the network.

  Which command displays the ports that your computer is listening for?

  A. nslookup
  B. nbtstat
  C. ping
  D. netstat
  D. netstat

  ---

  netstat (network statistics) is a command-line tool that displays network connections for the Transmission Control Protocol (both incoming and outgoing), routing tables, and a number of network interface (network interface controller or

  software-defined network interface) and network protocol statistics.

  Incorrect:

  not A: nslookup is used for DNS troubleshooting.

  Not B: Nbtstat is designed to help troubleshoot NetBIOS name resolution problems.

  Not C: ping is used to troubleshoot network connectivity.

• Question 166:

  A university has network links between various locations. Where would a T3 connection be appropriate?

  A. Server to network in the main campus server room
  B. Main campus to a large satellite campus
  C. Computer lab PC to lab printer
  D. Library laptop PC to Internet
  A. Server to network in the main campus server room

  ---

  T3 lines are a common aggregation of 28 T1 circuits that yields 44.736 Mbps total network bandwidth . Besides being used for long-distance traffic, T3 lines are also often used to build the core of a business network at its headquarters

• Question 167:

  One reason to incorporate VLANs in a network is to:

  A. Increase the number of available IP addresses.
  B. Increase the number of available Media Access Control (MAC) addresses.
  C. Reduce the number of broadcast domains.
  D. Reduce the number of nodes in a broadcast domain.
  D. Reduce the number of nodes in a broadcast domain.

  ---

  VLANs provide the following advantages:

  *

  VLANs enable logical grouping of end-stations that are physically dispersed on a network. ...

  *

  VLANs reduce the need to have routers deployed on a network to contain broadcast traffic. ...

  *

  Confinement of broadcast domains on a network significantly reduces traffic.

  By confining the broadcast domains, end-stations on a VLAN are prevented from listening to or receiving broadcasts not intended for them. Moreover, if a router is not connected between the VLANs, the end-stations of a VLAN cannot

  communicate with the end-stations of the other VLANs.

• Question 168:

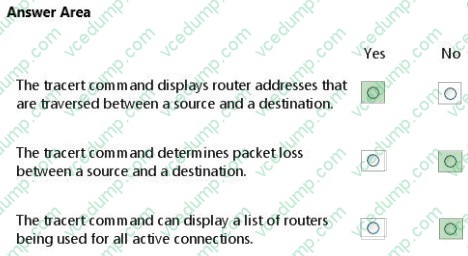

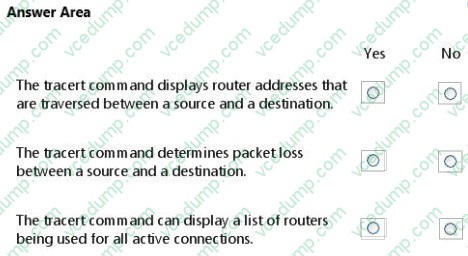

  HOTSPOT

  For each of the following statements, select Yes if the statement is true. Otherwise, select No. Each correct selection is worth one point.

  Hot Area:





• Question 169:

  You ping a server by using fully qualified domain name (FQDN) and do not receive a response. You then ping the same server by using its IP address and receive a response. Why do you receive a response on the second attempt but not on the first attempt?

  A. PING is improperly configured.
  B. The DNS is not resolving.
  C. The DHCP server is offline.
  D. NSLOOKUP is stopped.
  B. The DNS is not resolving.

  ---

  DNS is not working.

• Question 170:

  A router's static route is set by the:

  A. Adjacent network
  B. Next upstream router
  C. Network administrator
  D. Routing protocol
  C. Network administrator

  ---

  Static routing is a form of routing that occurs when a router uses a manually-configured routing entry, rather than information from a dynamic routing protocol to forward traffic.
