Microsoft 70-646 Online Practice Questions and Exam Preparation

Microsoft 70-646 Online Questions & Answers

• Question 91:

  You need to recommend a solution to migrate shared printers from the print server at Wingtip Toys to the print server at Tailspin Toys.

  What should you recommend?

  A. On the TT-PRINT01 server, run the printmig.exe command-line tool
  B. On the WT-PRINT01 server, run the printbrm.exe command-line tool
  C. On the WT-PRINT01 server, run the printmig.exe command-line tool
  D. On the TT-PRINT01 server, run the printbrm.exe command-line tool
  D. On the TT-PRINT01 server, run the printbrm.exe command-line tool

  ---

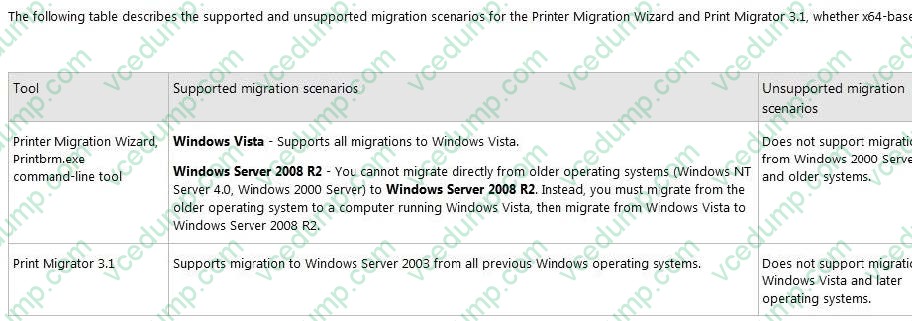

  you are moving from a 2003 to a 2008 server so option B wont work coz WT-print01 is the 2003 server you can export print queues, printer settings, printer ports, and language monitors, and then import them on another print server running a Windows operating system. This is an efficient way to consolidate multiple print servers or replace an older print server.



  Print Migrator 3.1 is no longer supported by Microsoft. The Printer Migration Wizard and the Printbrm.exe command-line tool were introduced in Windows 7 to replace it. For more information about this decision, see the blog Ask the Performance Team (http://blogs.technet.com/askperf/archive/2008/10/17/why-printmig-3-1-isretired.aspx).

• Question 92:

  You want to deploy web site with less attack surface, high available solution with minimal cost.

  Which one would you recommend? There are more than one correct answers but chose the best option.

  A. Windows server 2008 R2 Enterprise full installation
  B. Windows server 2008 R2 standard full installation.
  C. Windows web server 2008 R2 with IIS 7.5 Server core.
  D. Windows web server 2008 R2 with IIS 7.5 full installation.
  C. Windows web server 2008 R2 with IIS 7.5 Server core.

• Question 93:

  You plan to implement a WSUS server in a branch office.

  You need to recommend a solution for deploying the WSUS server that meets the company's technical requirements.

  What should you include in the recommendation?

  A. an autonomous WSUS server that is configured to download updates from Microsoft Update
  B. an autonomous WSUS server that is configured to download updates from the WSUS server in the main office
  C. a WSUS server running in replica mode that is configured to download updates from Microsoft Update
  D. a WSUS server running in replica mode that is configured to download updates from the WSUS server in the main office
  C. a WSUS server running in replica mode that is configured to download updates from Microsoft Update

  ---

  Each Office has a highspeed link and the WAN link to the main office is saturated as one of the requirements is to minimize traffic between branch and main offices then C offers the best solution.

  http://technet.microsoft.com/en-us/library/dd939820%28WS.10%29.aspx Replica mode (centralized administration) In replica mode, an upstream WSUS server shares updates, approval status, and computer groups with downstream servers. Downstream replica servers inherit update approvals and are not administered separately from the upstream

  WSUS server.

  The following image shows how you might deploy replica WSUS servers in a branch office environment.



  says the branch sites have a dedicated high speed link so utalise that instead of the wan link

• Question 94:

  Your network consists of a single Active Directory domain. All servers run Windows Server 2008

  R2. You plan to publish a Web site on two Web servers.

  You need to deploy an availability solution for your Web servers that meets the following requirements:

  -

  Supports the addition of more Web servers without interrupting client connections

  -

  Ensures that the Web site is accessible even if a single server fails

  What should you do?

  A. Configure a failover cluster.
  B. Configure a Web garden on each Web server.
  C. Create a Network Load Balancing cluster.
  D. Create two Application pools on each Web server.
  C. Create a Network Load Balancing cluster.

  ---

  Windows Web Server 2008

  Windows Web Server 2008 is designed to function specifically as a Web applications server.

  Other roles, such as Windows Deployment Server and Active Directory Domain Services, are not supported on Windows Web Server 2008. You deploy this server role either on a screened subnet to support a Web site viewable to external

  hosts or as an intranet server. As appropriate given its stripped-down role, Windows Web Server 2008 does not support the high-powered hardware configurations that other editions of Windows Server 2008 do.

  Windows Web Server 2008 has the following properties:

  The 32-bit version (x86) supports a maximum of 4 GB of RAM and 4 processors in SMP configuration.

  The 64-bit version (x64) supports a maximum of 32 GB of RAM and 4 processors in SMP configuration.

  Supports Network Load Balancing clusters.

  You should plan to deploy Windows Web Server 2008 in the Server Core configuration, which minimizes its attack surface, something that is very important on a server that interacts with hosts external to your network environment. You

  should only plan to deploy the full version of Windows Web Server 2008 if your organization's Web applications rely on features such as ASP.NET, because the .NET Framework is not included in a Server Core installation.

  Configuring Windows Network Load Balancing

  While DNS Round Robin is a simple way of distributing requests, Windows Server 2008 NLB is a much more robust form of providing high availability to applications. Using NLB, an administrator can configure multiple servers to operate as a

  single cluster and control the usage of the cluster in near real-time.

  NLB operates differently than DNS Round Robin in that NLB uses a virtual network adapter on each host. This virtual network adapter gets a single IP and media access control (MAC) address, which is shared among the hosts participating

  in the load-balancing cluster. Clients requesting services from an NLB cluster have their requests sent to the IP address of the virtual adapter, at which point it can be handled by any of the servers in the cluster.

  NLB automatically reconfigures as nodes are added and removed from the cluster. An administrator can add and remove nodes through the NLB Manager interface or the command

  line. For example, an administrator might remove each node in turn to perform maintenance on the nodes individually and cause no disruption in service to the end user.

  Servers within NLB clusters are in constant communication with each other, determining which servers are available with a process known as heartbeats and convergence. The heartbeat consists of a server participating in an NLB cluster that

  sends out a message each second to its NLB-participating counterparts.

  When five (by default) consecutive heartbeats are missed, convergence begins. Convergence is the process by which the remaining hosts determine the state of the cluster.

  During convergence, the remaining hosts listen for heartbeats from the other servers to determine the host with the highest priority, which is then selected as the default host for the NLB cluster.

  Generally, two scenarios can trigger convergence. The first is the missed heartbeat scenario mentioned earlier; the second is removal or addition of a server to the cluster by an administrator.

  The heartbeat is reduced by one half during convergence. A less common reason for convergence is a change in the host configuration, such as a host priority.

• Question 95:

  You need to increase the reliability of the print server on the main campus. What should you do?

  A. Create printer pools.
  B. Configure printer redirection.
  C. Configure printer driver isolation.
  D. Change the location of the Spool folder.
  C. Configure printer driver isolation.

  ---

  http://technet.microsoft.com/en-us/library/dd878502%28WS.10%29.aspx

  Printer driver isolation Prior to Windows Server 2008 R2, the failure of printer driver components has been a main print server support issue--the failure of a printer driver loaded onto the print spooler process would cause the process to fail, which would lead to an outage of the entire printing system. The impact of a spooler failure on a print server is particularly significant because of the number of users and printers that are typically affected.

  In Windows Server 2008 R2, you can now configure printer driver components to run in an isolated process separate from the printer spooler process. By isolating the printer driver, you can prevent a faulty printer driver from stopping all print operations on a print server, which results in a significant increase in server reliability.

  In addition to the benefit of improving overall printing system stability, this new feature provides a means to isolate new drivers for testing and debugging, and to identify which printer drivers have been causing spooler failures.

• Question 96:

  A network includes servers that run Windows Server 2008 R2 with the Network Policy Server (NPS) server role installed. You are planning to deploy a remote network administration solution. The remote administration solution must meet the following requirements:

  -Include fault tolerance.

  -

  Define the users who have remote access and the resources they can remotely access.

  You need to design a remote administration solution that meets the requirements.

  What should you recommend? (More than one answer choice may achieve the goal. Select the BEST answer.)

  A. Deploy and configure multiple servers with the Remote Desktop Gateway server role. Create a central Remote Desktop Connection Authorization Policy (RD CAP) and a Resource Authorization Policy (RD RAP).
  B. Deploy and configure multiple servers with the Remote Desktop Gateway server role. Create a local Remote Desktop Connection Authorization Policy (RD CAP) and a Resource Authorization Policy (RD RAP).
  C. Deploy and configure one server with the Remote Desktop Web Access server role. Create a central Remote Desktop Connection Authorization Policy (RD CAP) and a Resource Authorization Policy (RD RAP).
  D. Deploy and configure one server with the Remote Desktop Web Access server role. Create a local Remote Desktop Connection Authorization Policy (RD CAP) and a Resource Authorization Policy (RD RAP).
  A. Deploy and configure multiple servers with the Remote Desktop Gateway server role. Create a central Remote Desktop Connection Authorization Policy (RD CAP) and a Resource Authorization Policy (RD RAP).

  ---

  You can also configure RD Gateway to use Remote Desktop connection authorization policies (RD CAPs) that are stored on another server that runs the Network Policy Server (NPS) service. By doing this, you are using the server running

  NPS, formerly known as a Remote Authentication Dial-In User Service (RADIUS) server, to centralize the storage, management, and validation of RD CAPs. If you have already deployed a server running NPS for remote access scenarios

  such as VPN and dial-up networking, using the existing server running NPS for RD Gateway scenarios as well can enhance your deployment.

  RAP

  Remote Desktop resource authorization policies (RD RAPs) allow you to specify the internal network resources (computers) that remote users can connect to through an RD Gateway server.

  Remote users connecting to the network through an RD Gateway server are granted access to computers on the internal network if they meet the conditions specified in at least one RD CAP and one RD RAP.

  CAP

  Remote Desktop connection authorization policies (RD CAPs) allow you to specify who can connect to an RD Gateway server

• Question 97:

  A company has servers that run Windows Server 2008 R2. You are designing a storage solution for the servers.

  The storage solution includes Fibre Channel (FC) and Internet SCSI (iSCSI) disk drive subsystems, and supports the Virtual Disk Service (VDS).

  You need to ensure that you can create and manage logical unit numbers (LUNs) on the storage solution.

  Which feature should you install?

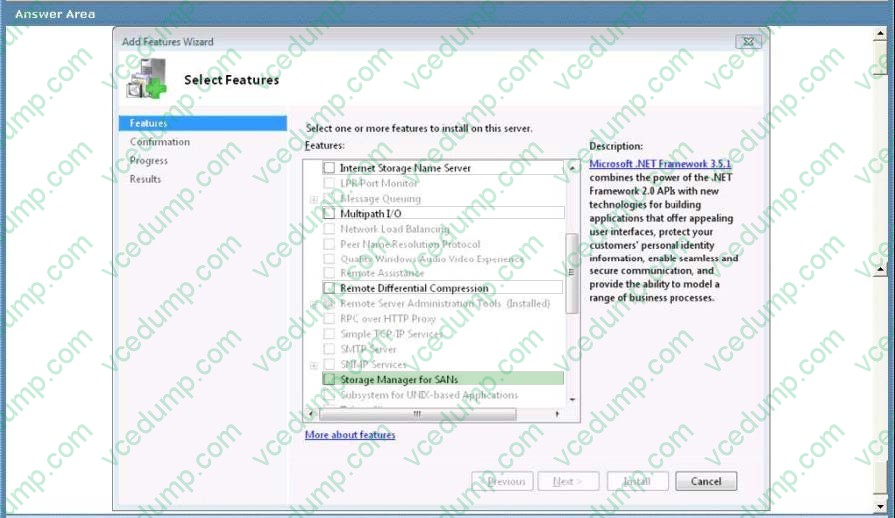

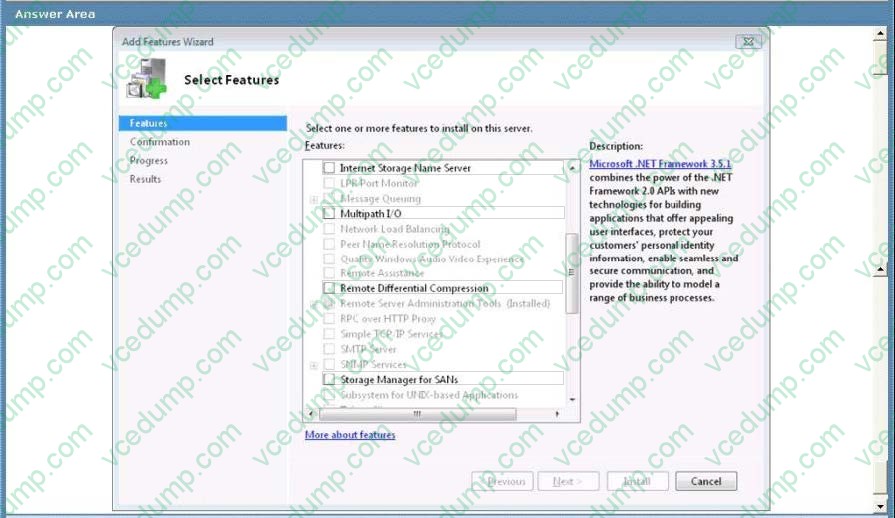

  To answer, select the appropriate feature in the answer area.

  Hot Area:





  ---

  Storage Manager for SANs helps you create and manage logical unit numbers (LUNs) on Fibre Channel and iSCSI disk drive subsystems that support Virtual Disk Service (VDS) in your storage area network (SAN). A LUN is a logical reference to a portion of a storage subsystem. A LUN can comprise a disk, a section of a disk, a whole disk array, or a section of a disk array in the subsystem. Using LUNs simplifies the management of storage resources in your SAN because they serve as logical identifiers through which you can assign access and control privileges.

• Question 98:

  You need to recommend a solution for deploying and managing App2. What should you recommend?

  A. Publish App2 as a RemoteApp program.
  B. Deploy App2 by using a Group Policy logon script.
  C. Assign App2 by using Group Policy software distribution.
  D. Publish App2 by using Group Policy software distribution.
  C. Assign App2 by using Group Policy software distribution.

  ---

  http://support.microsoft.com/kb/816102

  This step-by-step article describes how to use Group Policy to automatically distribute programs to client computers or users. You can use Group Policy to distribute computer programs by using the following methods:

  Assigning Software

  You can assign a program distribution to users or computers. If you assign the program to a user, it is installed when the user logs on to the computer. When the user first runs the program, the installation is finalized. If you assign the program

  to a computer, it is installed when the computer starts, and it is available to all users who log on to the computer. When a user first runs the program, the installation is finalized.

  Publishing Software

  You can publish a program distribution to users. When the user logs on to the computer, the published program is displayed in the Add or Remove Programs dialog box, and it can be installed from there.

• Question 99:

  You need to recommend a monitoring solution for the file servers in the main office. The solution must meet the company's technical requirements.

  What should you include in the recommendation?

  A. File Server Resource Manager (FSRM) active file screens
  B. File Server Resource Manager (FSRM) passive file screens
  C. Performance Monitor alerts
  D. Performance Monitor logs
  B. File Server Resource Manager (FSRM) passive file screens

  ---

  http://technet.microsoft.com/en-us/library/cc732349%28WS.10%29.aspx

  Active = prevents the saving of restricted files

  Passive = monitors for the saving of restricted files

  Create file screens to block files that belong to particular file groups from being saved on a volume or in a folder tree. A file screen affects all folders in the designated path. For example, you might create a file screen to prevent users from

  storing audio and video files in their personal folders on the server.

  You can configure File Server Resource Manager to generate e-mail or other notifications when a file screening event occurs.

  A file screen can be either active or passive:

  -Active screening prevents users from saving unauthorized file types on the server.

  -Passive screening monitors users saving specific file types and generates any configured notifications, but does not prevent users from saving files.

• Question 100:

  You are evaluating whether to use express installation files as an update distribution mechanism.

  Which technical requirement is met by using the express installation files?

  A. Newly implemented technologies must minimize the impact on LAN traffic.
  B. Newly implemented technologies must minimize the storage requirements.
  C. Newly implemented technologies must minimize the amount of bandwidth used on Internet connections.
  D. All patches and updates must be tested in a nonproduction environment before they are App1ied to production servers.
  A. Newly implemented technologies must minimize the impact on LAN traffic.

  ---

  http://technet.microsoft.com/en-us/library/cc708456%28v=ws.10%29.aspx

  The express installation files feature is an update distribution mechanism. You can use express installation files to limit the bandwidth consumed on your local network, but at the cost of bandwidth consumption on your Internet connection. By

  default, WSUS does not use express installation files. To better understand the tradeoff, you first have to understand how WSUS updates client computers.

  Updates typically consist of new versions of files that already exist on the computer being updated. On a binary level these existing files might not differ very much from updated versions. The express installation files feature is a way of

  identifying the exact bytes that change between different versions of files, creating and distributing updates that include just these differences, and then merging the original file with the update on the client computer. Sometimes this is called

  delta delivery because it downloads only the difference, or delta, between two versions of a file.

  When you distribute updates by using this method, it requires an initial investment in bandwidth.

  Express installation files are larger than the updates they are meant to distribute. This is because the express installation file must contain all the possible variations of each file it is meant to update.

  The upper part of the "Express Installation Files Feature" illustration depicts an update being distributed by using the express installation files feature; the lower part of the illustration depicts the same update being distributed without using the

  express installation files feature. Notice that with express installation files enabled, you incur an initial download three times the size of the update. However, this cost is mitigated by the reduced amount of bandwidth required to update client

  computers on the corporate network. With express installation files disabled, your initial download of updates is smaller, but whatever you download must then be distributed to each of the clients on your corporate network.

  Important Although there are some variables with express installation files, there are also some things you can count on.

  For example, express installation files are always bigger in size than the updates they are meant to distribute.

  As far as bandwidth goes, it is always less expensive to distribute updates using express installation files than to distribute updates without.

  Not all updates are good candidates for distribution using express installation files. If you select this option, you obtain express installation files for any updates being distributed this way. If you are not storing updates locally, you cannot use

  the express installation files feature. By default, WSUS does not use express installation files.

  To enable this option see http://technet.microsoft.com/en-us/library/cc708460%28v=ws.10%29.aspx

  Update Storage Options

  Use the Update Files section to determine if updates will be stored on WSUS or if client computers will connect to the Internet to get updates. There is a description of this feature in Determine Where to Store Updates earlier in this guide.

  To specify where updates are stored

  On the WSUS console toolbar, click Options, and then click Synchronization Options.

  Under Update Files and Languages, click Advanced, then read the warning and click OK.

  If you want to store updates in WSUS, in the Advanced Synchronization Options dialog box, under Update Files, click Store update files locally on this server. If you want clients to connect to the Internet to get updates, then click Do not store

  updates locally; clients install updates from Microsoft Update.

  Deferred Downloads Options

  Use the Update Files section to determine if updates should be downloaded during synchronization or when the update is approved. Find a description of this feature in "Deferring the

  Download of Updates," in Determine Bandwidth Options to Use for Your Deployment earlier in this guide.

  To specify whether updates are downloaded during synchronization or when the update is approved On the WSUS console toolbar, click Options, and then click Synchronization Options.

  Under Update Files and Languages, click Advanced, then read the warning and click OK.

  If you want to download only metadata about the updates during synchronization, in the Advanced Synchronization Options dialog box, under Update Files, select the Download updates to this server only when updates are approved check

  box. If you want the update files and metadata during synchronization, clear the check box.

  Express Installation Files Options

  Use the Update Files section to determine if express installation files should be downloaded during synchronization. Find a description of this feature in "Using Express installation files," in Determine Bandwidth Options to Use for Your

  Deployment earlier in this paper.

  To specify whether express installation files are downloaded during synchronization On the WSUS console toolbar, click Options, and then click Synchronization Options.

  Under Update Files and Languages, click Advanced, then read the warning and click OK.

  If you want to download express installation files, in the Advanced Synchronization Options dialog box, under Update Files, select the Download express installation files check box. If you do not want express installation files, clear the check

  box.

  Filtering Updates Options

  Use the Languages section to select the language of the updates to synchronize. There is a description of this feature in "Filtering updates," in Determine Bandwidth Options to Use for Your Deployment earlier in this guide.

  To specify language options

  On the WSUS console toolbar, click Options, and then click Synchronization Options.

  Under Update Files and Languages, click Advanced, then read the warning and click OK.

  In the Advanced Synchronization Options dialog box, under Languages, select one of the following language options, and then click OK.

  Download only those updates that match the locale of this server (Locale) where Locale is the name of the server locale. This means that only updates targeted to the locale of the server will be downloaded during synchronization.

  Download updates in all languages, including new languages This means that all languages will be downloaded during synchronization. If a new language is added, it will be automatically downloaded.

  Download updates only in the selected languages This means that only updates targeted to the languages you select will be downloaded during synchronization. If you choose this option, you must also choose each language you want from

  the list of those available.
