Cisco 642-980 Online Practice Questions and Exam Preparation

Cisco 642-980 Online Questions & Answers

• Question 41:

  Which two commands are used to determine the CoPP profile used on Cisco Nexus 7000 Series? (Choose two.)

  A. #show copp profile
  B. #show copp diff profile
  C. #show copp status
  D. #show running-config copp
  E. #show policy-map interface control-plane
  C. #show copp status
  D. #show running-config copp

• Question 42:

  Which three commands will help an administrator identify any issues with an In-Service Software Upgrade? (Choose three.)

  A. show cts interface
  B. show incompatibility system
  C. show license file
  D. show install impact all
  E. show lacp issu-impact
  F. show install issu-failure
  B. show incompatibility system
  D. show install impact all
  E. show lacp issu-impact

• Question 43:

  Which statement is true regarding STP?

  A. When the spanning-tree topology is calculated based on default parameters, the path between the source and destination end stations in a switched network might not be ideal.
  B. The path between the source and the destination end stations is always ideal with the default spanning-tree parameter.
  C. The path between the source and the destination end stations is determined by the speed of the link; the slowest link speed will become the root port during the election.
  D. The path between the source and the destination end stations is determined by the lowest MAC address; the lowest MAC address will become the root port during the election.
  A. When the spanning-tree topology is calculated based on default parameters, the path between the source and destination end stations in a switched network might not be ideal.

• Question 44:

  Which two statements about configuring NPV are true? (Choose two.)

  A. Only F, E, and SD ports are supported in NPV mode.
  B. Only targets can be connected to an NPV device.
  C. Distribute the NPV core switch links to different port groups for improved scalability.
  D. If DPVM is configured on the NPV core switch for an end device that is connected to the NPV device, then that end device must be configured to be in the same VSAN.
  E. NPV does not support NPIV-capable module servers (nested NPIV).
  C. Distribute the NPV core switch links to different port groups for improved scalability.
  D. If DPVM is configured on the NPV core switch for an end device that is connected to the NPV device, then that end device must be configured to be in the same VSAN.

• Question 45:

  Which two conditions can prevent FCoE from functioning properly across a link? (Choose two.)

  A. LLDP is disabled.
  B. PFC was negotiated across the link.
  C. DCBX is enabled on the device.
  D. The VFC interface is down.
  E. The VSAN trunking protocol was enabled.
  A. LLDP is disabled.
  D. The VFC interface is down.

• Question 46:

  A customer has two data centers. In both data centers, the customer has two Cisco Nexus 7000 switches. For redundancy, the customer implemented HSRP and vPC. The customer implemented OTV to extend VLAN 325 between data centers and the customer has one default gateway over the four Cisco Nexus 7000 switches. The customer attempts HSRPfiltering over the DCI link with HSRPgroup 325. Which MAC addressshould be filtered over the DCInetwork?

  A. 0000.0c9f.f145
  B. 0000.0C07.A145
  C. 001e.0C9F.F145
  D. 001e.0C07.A145
  A. 0000.0c9f.f145

• Question 47:

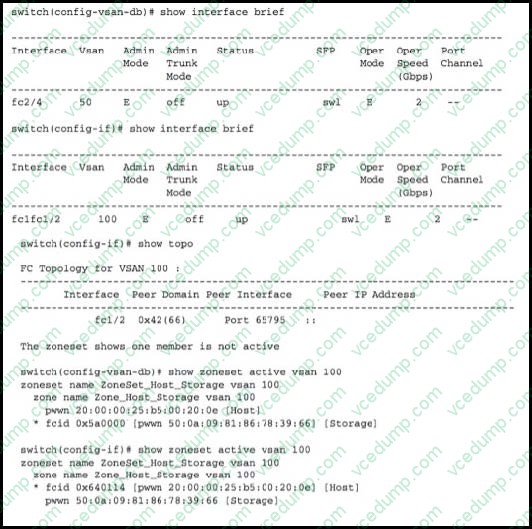

  Refer to the exhibit.



  Customer is having problems with a device in VLAN100?What would fix the problem?

  A. Move the trunk port into VSAN 100.
  B. Change interface fc1fc1/1 into a trunk port and remove VSAN 100.
  C. Change interface fc2/4 into a trunk port.
  D. Change interface fc2/4 into VSAN 100.
  E. Change interface fc1fc1/2 into VSAN 100.
  D. Change interface fc2/4 into VSAN 100.

• Question 48:

  FCoE appears to be properly configured. Which two steps should you take to verify theFCoE configuration? (Choose two.)

  A. Run the feature fcoe command.
  B. Verify that the jumbo MTU is properly set.
  C. Ensure that the license has been applied.
  D. Utilize the proper CoS values on each side.
  B. Verify that the jumbo MTU is properly set.
  D. Utilize the proper CoS values on each side.

• Question 49:

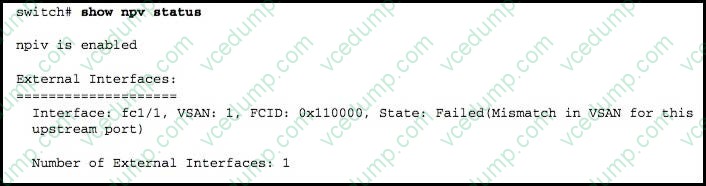

  Refer to the exhibit.



  A customer is having problems with NPV. Which of these is the cause of the problem?

  A. No server was requested or received by the FLOGI database.
  B. One external link must be up for server interface to be up.
  C. Internal links are down and must be up for the server interface to be up.
  D. VSANs are misconfigured on the upstream ports.
  E. VLANs are misconfigured on the upstream ports.
  D. VSANs are misconfigured on the upstream ports.

• Question 50:

  Which configuration is needed to suppress duplicate IP addresses when HSRP localization is enabled?

  A. Configure matching passwords in each data center.
  B. Configure no ip arp gratuitous hsrp duplicate under the VLAN.
  C. Remove the passwords in each data center.
  D. Configure mismatching HSRP versions between data centers.
  E. Change one data center to run VRRP rather than HSRP.
  B. Configure no ip arp gratuitous hsrp duplicate under the VLAN.
