Cisco 642-737 Online Practice Questions and Exam Preparation

Cisco 642-737 Online Questions & Answers

• Question 101:

  What are the two must commonly used RADIUS (Cisco Airespace) attributes that are configured in the Cisco Secure ACS v4.2 for IBN implementation with the Cisco WLC v7.0? (Choose two.)

  A. QoS level
  B. DSCP
  C. 802.1P tag
  D. security type
  E. ACL name
  F. EAP type
  G. NAC state
  A. QoS level
  E. ACL name

• Question 102:

  An engineer has configured an anchor controller in the DMZ for guest traffic, but the traffic is failing at the firewall. Which two ports must be opened on the firewall? (Choose two.)

  A. IP protocol 43
  B. IP protocol 97
  C. TCP port 23
  D. TCP port 443
  E. UDP port 123
  F. UDP port 16666
  B. IP protocol 97
  F. UDP port 16666

• Question 103:

  Employees are allowed to start bringing their own wireless devices to work for use on the 802.11a/b/g/n WLAN when using their existing credentials. However, they are experiencing issues. Which two items are the most probable cause of these issues? (Choose two.)

  A. incorrect IP address
  B. supplicant or driver
  C. incorrect user name
  D. wrong wireless band
  E. application issues
  B. supplicant or driver
  E. application issues

• Question 104:

  Which NAC component performs device compliance checks as users attempt to access the network?

  A. Cisco NAC Guest Server
  B. Cisco Secure Access Control System
  C. Cisco 802.1X supplicant
  D. Cisco NAC Appliance Agent
  E. Cisco NAC Appliance Manager
  F. Cisco NAC Appliance Server
  G. Cisco IPS Appliance
  D. Cisco NAC Appliance Agent

• Question 105:

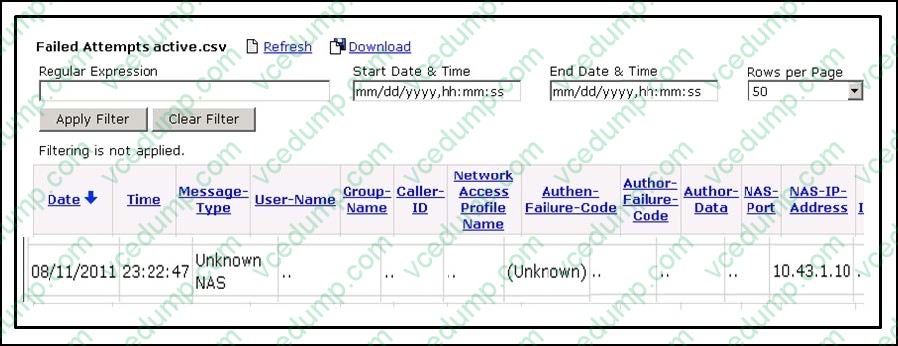

  Refer to the exhibit.



  What does this Cisco Secure ACS v4.2 log indicate?

  A. The WLC is not configured as a client in the Cisco Secure ACS.
  B. The WLC is not configured as a server in the Cisco Secure ACS.
  C. Incorrect authentication exists between the WLC and Cisco Secure ACS.
  D. The wireless client is not configured as a client in the Cisco Secure ACS.
  E. Incorrect authentication exists between the wireless client and Cisco Secure ACS.
  A. The WLC is not configured as a client in the Cisco Secure ACS.

• Question 106:

  A user on a guest wireless network utilizing Cisco NAC web authentication is able to associate, but does not get redirected to the web login page. What are two possible reasons for the failure? (Choose two.)

  A. The guest is using an unauthorized client.
  B. The CAS server is unreachable.
  C. The guest is using an incorrect username and password.
  D. SSID is not configured for web authentication.
  E. The address of the NAC server is not configured.
  D. SSID is not configured for web authentication.
  E. The address of the NAC server is not configured.

• Question 107:

  Which four tasks are needed to configure a new Cisco CAM? (Choose four.)

  A. Create an OOB management profile in the Cisco CAS for the controller.
  B. Configure the Cisco CAM as the authentication server for the controller.
  C. Configure the controller as an OOB management device in the Cisco CAM.
  D. Create a managed subnet for the Cisco CAM from the Cisco CAS.
  E. Create VLAN mapping in the Cisco CAS from the Cisco CAM.
  F. Verify that the controller hardware and software are supported by the Cisco CAM.
  G. Create local user accounts and verify them on the Cisco CAM.
  H. Configure the Cisco CAM as an OOB virtual gateway.
  C. Configure the controller as an OOB management device in the Cisco CAM.
  E. Create VLAN mapping in the Cisco CAS from the Cisco CAM.
  F. Verify that the controller hardware and software are supported by the Cisco CAM.
  G. Create local user accounts and verify them on the Cisco CAM.

• Question 108:

  An engineer is creating a Cisco AnyConnect profile for NAM. What menu will allow the client to find a hidden SSID to which to connect?

  A. Client Policy
  B. Authentication Policy
  C. Networks
  D. Network Groups
  C. Networks

• Question 109:

  What device will authenticate the user when a sponsor creates a guest account on the Cisco NGS?

  A. WLAN controller
  B. Cisco ACS
  C. Cisco NGS
  D. active directory server
  C. Cisco NGS

• Question 110:

  Wireless client voice calls are being degraded during roaming using a Cisco 7925 series phone on a wireless network. What mechanism can resolve the issue?

  A. CCKM
  B. 802.11r
  C. PKC
  D. 802.11i
  A. CCKM
