Cisco 642-467 Online Practice Questions and Exam Preparation

Cisco 642-467 Online Questions & Answers

• Question 81:

  On which two protocols is the Voice Profile for Internet Mail protocol based? (Choose two.)

  A. Simple Mail Transfer Protocol
  B. Internet Message Access Protocol
  C. Post Office Protocol version 3
  D. Internet Relay Chat
  E. Session Initiation Protocol for Instant Messaging and Presence Leveraging Extensions
  F. Multipurpose Internet Mail Extension
  A. Simple Mail Transfer Protocol
  F. Multipurpose Internet Mail Extension

• Question 82:

  What should be done after the initial configuration of the Cisco Unified Communications Manager and Cisco Unified Presence integration?

  A. Restart the Cisco SIP Proxy Server.
  B. Restart the Application Listener.
  C. Restart the Cisco Unified Presence Service.
  D. Restart the Cisco Unified Communications Manager Services.
  E. No action is required.
  C. Restart the Cisco Unified Presence Service.

• Question 83:

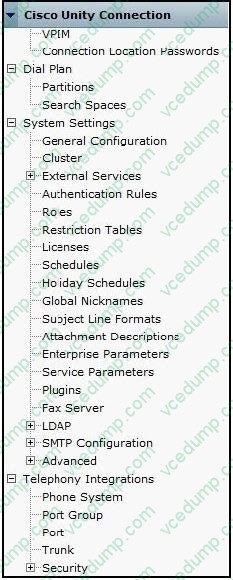

  Refer to the exhibit.



  When configuring the default user settings, which section is used to configure the password guidelines that are used by the system for each user?

  A. Roles
  B. Authentication Rules
  C. Restriction Tables
  D. Service Parameters
  E. Enterprise Parameters
  B. Authentication Rules

• Question 84:

  In order for Cisco Unified Presence to show the presence status of an IP phone, which two configuration steps must be completed in the Cisco Unified Communications Manager server? (Choose two.)

  A. Check the Allow Presence Status check box.
  B. Associate the end device with the user.
  C. Allow the SIP publish trunk to forward presence status messages.
  D. Associate the directory number with the user.
  E. Enable Cisco Unified Personal Communicator Status flag
  B. Associate the end device with the user.
  D. Associate the directory number with the user.

• Question 85:

  You are trying to log into the Cisco Unified User Options interface. However, you are unable to log in with your username and password.

  You verify from the system administrator that the URL for the User Options interface is correct. Which two options are probable causes for this problem? (Choose two.)

  A. You are not registered as a licensed user.
  B. You are not assigned access to the User Options interface.
  C. You do not have access to some of the options on the User Options interface.
  D. You do not have access to the Cisco IP Phone Messenger features.
  E. The User Options interface URL is no longer working.
  F. Cisco Unified Presence is down.
  A. You are not registered as a licensed user.
  B. You are not assigned access to the User Options interface.

• Question 86:

  Which service is used to synchronize a subset of user data during an LDAP integration on Cisco Unity Connection?

  A. Cisco DirSync
  B. CDRonDemand Service
  C. Cisco Extended Functions
  D. Cisco DB Replicator
  E. Cisco Trust Verification Service
  A. Cisco DirSync

• Question 87:

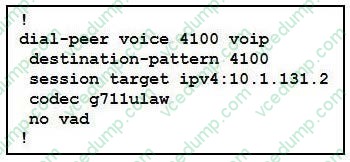

  Refer to the exhibit.



  When users try to access the voice-mail system, they hear a fast busy tone. In which two ways does the configuration need to be modified in order to allow calls to reach Cisco Unity Express? (Choose two)

  A. The dial peer needs to be a POTS dial peer and needs to use a fully qualified E.164 number.
  B. The command dtmf-relay sip-notify needs to be added to the dial peer.
  C. The vad statement needs to be removed.
  D. The command session protocol sipv2 needs to be added to the dial peer.
  E. The codec type statement needs to be removed.
  F. The command codec transparent needs to be added to the dial peer.
  B. The command dtmf-relay sip-notify needs to be added to the dial peer.
  D. The command session protocol sipv2 needs to be added to the dial peer.

• Question 88:

  How does a notification profile use cascading settings?

  A. Cascading settings send incremental messages to each member of the group in a sequential manner as soon as the initial message is received.
  B. Cascading settings send a new message to a separate notification group upon receiving a new message.
  C. Cascading settings allow a single message to be sent to all the members of a notification profile and any additional cascaded notification groups simultaneously.
  D. Cascading settings allow additional message notifications to be sent, after a configured time delay, to a widening circle of recipients.
  D. Cascading settings allow additional message notifications to be sent, after a configured time delay, to a widening circle of recipients.

• Question 89:

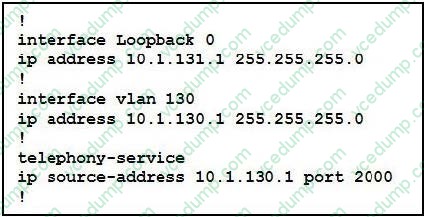

  Refer to the exhibit.



  Which five of the following commands will integrate a Cisco Unity Express module with a Cisco Unified Communications Manager Express router. (Choose five.)

  A. ip route 10.1.131.2 255.255.255.255 interface Service-Engine 1/0
  B. service-module ip address 10.1.130.2 255.255.255.0
  C. ip unnumbered Loopback0
  D. service-module ip address 10.1.131.2 255.255.255.0
  E. service-module ip default-gateway 10.1.131.1
  F. ip unnumbered vlan130
  G. service-module ip default-gateway 10.1.30.1.1
  H. interface Integrated-Service-Engine1/0 Correct Answer:Explanation/Reference:
  A. ip route 10.1.131.2 255.255.255.255 interface Service-Engine 1/0
  C. ip unnumbered Loopback0
  D. service-module ip address 10.1.131.2 255.255.255.0
  E. service-module ip default-gateway 10.1.131.1
  H. interface Integrated-Service-Engine1/0 Correct Answer:Explanation/Reference:

• Question 90:

  By default, what are two options that are presented to callers for forwarded calls into a Cisco Unity Connection system? (Choose two.)

  A. Log in to their mailbox.
  B. Listen to the opening greeting.
  C. Leave a message if forwarder has a mailbox.
  D. Enter user ID and PIN.
  E. Log in to remote mailbox.
  B. Listen to the opening greeting.
  C. Leave a message if forwarder has a mailbox.
