Cisco 640-864 Online Practice Questions and Exam Preparation

Cisco 640-864 Online Questions & Answers

• Question 171:

  You are asked to design a new branch office that will need to support 25 users. These users will be using an ISP connection and will need to connect to the main office for network services. Which two Cisco devices are the most appropriate to fulfill all of these requirements? (Choose two.)

  A. Cisco IPS
  B. Cisco ISR G2
  C. Cisco ASA
  D. Cisco 2960
  E. Cisco CRS-1
  F. Cisco ACS
  B. Cisco ISR G2
  C. Cisco ASA

• Question 172:

  Which is a factor in enterprise campus design decisions?

  A. network application characteristics
  B. routing protocol characteristics
  C. switching latency characteristics
  D. packet filtering characteristics
  A. network application characteristics

• Question 173:

  The evolution of the Data Center is best represented by the 3.0 architecture component of virtualization. Which of the following is not an example of the virtualization taking place in the Data Center?

  A. Virtualized media access utilizing Fiber Channel over Ethernet
  B. VLANs and virtual storage area networks (VSANs) provide for virtualized LAN and SAN connectivity, separating physical networks and equipment into virtual entities
  C. Virtual Machines that run an application within the client operating system, which is further virtualized and running on common hardware
  D. Storage devices virtualized into storage pools, and network devices are virtualized using device contexts
  A. Virtualized media access utilizing Fiber Channel over Ethernet

• Question 174:

  OSPF will be used as the IGP within a campus network. Which two things should you consider before deployment? (Choose two.)

  A. All areas need to connect back to area 0.
  B. The OSPF process number on each router should match.
  C. NSSA areas should be used when an area cannot connect directly to area 0.
  D. Stub areas should be connected together using virtual links.
  E. ECMP may cause undesired results depending on the environment.
  A. All areas need to connect back to area 0.
  E. ECMP may cause undesired results depending on the environment.

• Question 175:

  A network engineer must implement a design where LAN clients are to connect to various access layer devices, while remaining on the same VLAN . What type of design would support this requirement?

  A. routed
  B. switched
  C. tunneled
  D. virtual
  B. switched

• Question 176:

  ACME corporation is implementing dynamic routing on the LAN at its corporate headquarters. The interior gateway protocol that they select must support these requirements: multivendor environment, efficient subnetting, high scalability, and fast convergence. Which interior gateway protocol should they implement?

  A. EIGRP
  B. OSPF
  C. RIPng
  D. BGP
  B. OSPF

• Question 177:

  What is the primary advantage of implementing a wireless LAN controller in a wireless LAN design?

  A. roaming between APs
  B. RADIUS user authentication
  C. radio resource management
  D. accelerated data transfer
  C. radio resource management

• Question 178:

  Which two are types of network virtualization? (Choose two.)

  A. VSS: Virtual Switching System
  B. VRF: virtual routing and forwarding
  C. VCI: virtual channel identifier
  D. VLSM: variable length subnet masking
  E. VM: virtual machine
  F. VMP: Virtual Memory Pool
  A. VSS: Virtual Switching System
  B. VRF: virtual routing and forwarding

  ---

  Network virtualization encompasses logical isolated network segments that share the same physical infrastructure. Each segment operates independently and is logically separate from the other segments. Each network segment appears

  with its own privacy, security, independent set of policies, QoS levels, and independent routing paths.

  Here are some examples of network virtualization technologies:

  VLAN: Virtual local-area network VSAN: Virtual storage-area network VRF: Virtual routing and forwarding VPN: Virtual private network VPC: Virtual Port Channel

• Question 179:

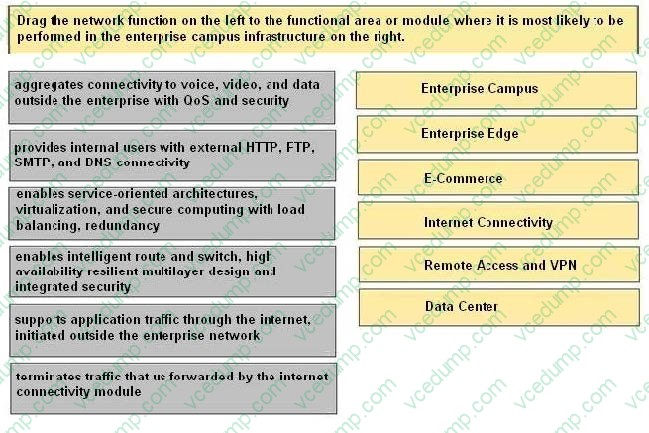

  DRAG DROP

  Select and Place:





  ---

  Please refer to link. Link: http://www.cisco.com/en/US/docs/solutions/Enterprise/Campus/campover.html#wp708979 CCDA Study Guide: Diane Teare

• Question 180:

  Which IPv6 feature enables routing to distribute connection requests to the nearest content server?

  A. Link-local
  B. Site-local
  C. Anycast
  D. Multicast
  E. Global aggregatable
  C. Anycast

  ---

  Any cast is a network addressing and routing methodology in which data grams from a single sender are routed to the topologically nearest node in a group of potential receivers all identified by the same destination address. Link: http://en.wikipedia.org/wiki/Anycast
