Cisco 640-864 Online Practice Questions and Exam Preparation

Cisco 640-864 Online Questions & Answers

• Question 111:

  Which is usually used to connect to an upstream ISP?

  A. EIGRP
  B. OSPF
  C. BGP
  D. IS-IS
  E. RIPv2
  C. BGP

• Question 112:

  With respect to IPv6 addressing, from a design perspective, which of these statements is it important to keep in mind?

  A. IPv6 addressing provides convenience of anycast addressing without any configuration requirements.
  B. IPv6 does not use multicast addressing.
  C. An IPv6 router will not forward packets from one link to other links if the packet has either a link-local source or a link-local destination address.
  D. Dynamic address assignment requires DHCPv6.
  C. An IPv6 router will not forward packets from one link to other links if the packet has either a link-local source or a link-local destination address.

• Question 113:

  Which three describe challenges that are faced when deploying an environment for teleworkers? (Choose three.)

  A. supporting a mix of technically knowledgeable and nontechnical users
  B. simplifying router installation and configuration
  C. verifying available power at employee's house for necessary equipment
  D. avoiding situations where employees might use nonstandard hardware or configurations
  E. reducing daily commuting time to main office location
  F. providing access to FTP servers located in main office location
  G. implementing leased line connectivity between main office and employee's home location
  A. supporting a mix of technically knowledgeable and nontechnical users
  B. simplifying router installation and configuration
  D. avoiding situations where employees might use nonstandard hardware or configurations

• Question 114:

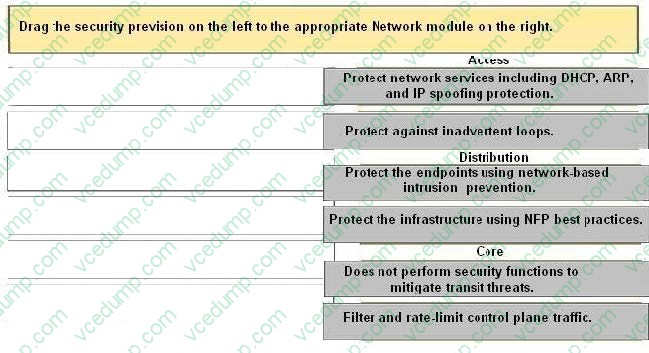

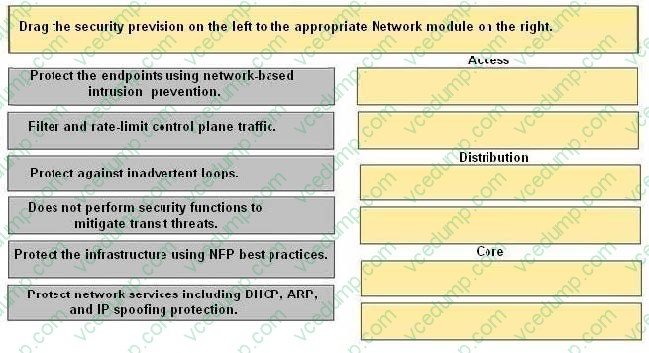

  DRAG DROP

  Select and Place:





  ---

  Please refer to link. Link: http://www.ciscopress.com/articles/article.asp?p=1073230andseqNum=2 Building access layer: Protect network services including DHCP, ARP, and IP spoofing protection Protect against inadvertent loops Building distribution layer: Protect the endpoints using network-based intrusion prevention Protect the infrastructure using NFP best practices Campus Core: Does not perform any security functions to mitigate transit Filter and rate-limits control-plane traffic Explanation: http://www.cisco.com/en/US/docs/solutions/Enterprise/Security/SAFE_RG/chap5.html#wp1090913 http://www.cisco.com/en/US/docs/solutions/Enterprise/Security/SAFE_RG/chap3.html

• Question 115:

  When designing an EIGRP network, which two things should you take into consideration? (Choose two.)

  A. ASN and K values must match.
  B. The neighbor command can be used to enable unicast communication.
  C. The neighbor diameter cannot exceed a 15-hops limit.
  D. NSSA areas can be used to redistribute external routes.
  E. Neighbor relationship can be established with non-Cisco routers.
  A. ASN and K values must match.
  B. The neighbor command can be used to enable unicast communication.

• Question 116:

  Which three protocols support VLSM? (Choose three.)

  A. RIPv2
  B. RIPv1
  C. EIGRP
  D. OSPF
  E. IGRP
  A. RIPv2
  C. EIGRP
  D. OSPF

• Question 117:

  What significant advantage does EIGRP have over OSPF?

  A. easy summarization
  B. shorter convergence times
  C. single area operation
  D. low processor utilization
  B. shorter convergence times

• Question 118:

  Which two of the following are benefits of using a modular approach to network design? (Choose two.)

  A. improves flexibility
  B. facilitates implementation
  C. lowers implementation costs
  D. improves customer participation in the design process
  A. improves flexibility
  B. facilitates implementation

• Question 119:

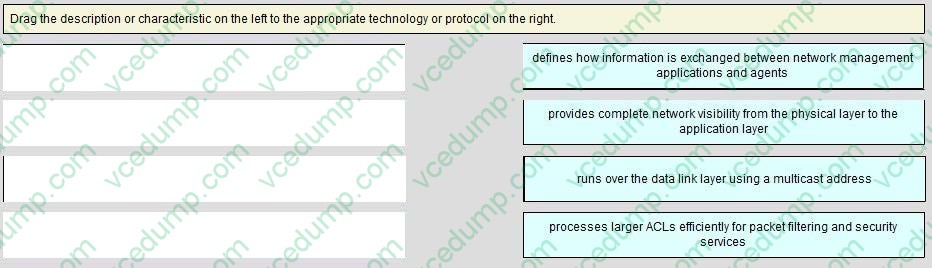

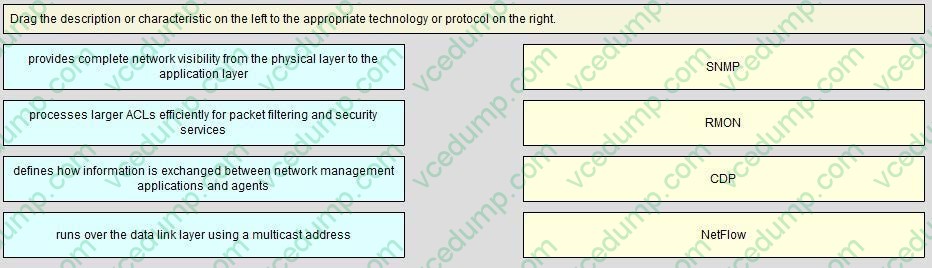

  DRAG DROP

  Select and Place:





• Question 120:

  Which is the North American RIR for IPv4 addresses?

  A. RIPE
  B. ARIN
  C. IANA
  D. IEEE
  E. APNIC
  B. ARIN
