Cisco 640-822 Online Practice Questions and Exam Preparation

Cisco 640-822 Online Questions & Answers

• Question 51:

  Which of the following are types of flow control? (Choose three.)

  A. buffering
  B. cut-through
  C. windowing
  D. congestion avoidance
  E. load balancing
  A. buffering
  C. windowing
  D. congestion avoidance

• Question 52:

  Which sequence of actions will allow telneting from a user's PC to a router using TCP/IP?

  A. Connect the PC's COM port to the router's console port using a straight-through cable.
  B. Connect the PC's COM port to the router's console port using a crossover cable.
  C. Connect the PC's COM port to the router's Ethernet port using a straight-through cable.
  D. Connect the PC's Ethernet port to the router's Ethernet port using a crossover cable.
  E. Connect the PC's Ethernet port to the router's Ethernet port using a rollover cable.
  F. Connect the PC's Ethernet port to the router's Ethernet port using a straight-through cable.
  D. Connect the PC's Ethernet port to the router's Ethernet port using a crossover cable.

• Question 53:

  When you power up a Cisco router; in what memory is the start-up configuration normally stored in?

  A. RAM
  B. ROM
  C. FLASH
  D. NVRAM
  D. NVRAM

• Question 54:

  Refer to the exhibit.



  The wire scheme that is shown is terminated at each end with an RJ-45 connector. What cable type does the wire diagram represent?

  A. an Ethernet straight-through cable
  B. a serial crossover cable
  C. a serial straight-through cable
  D. an Ethernet crossover cable
  E. a rollover cable
  D. an Ethernet crossover cable

• Question 55:

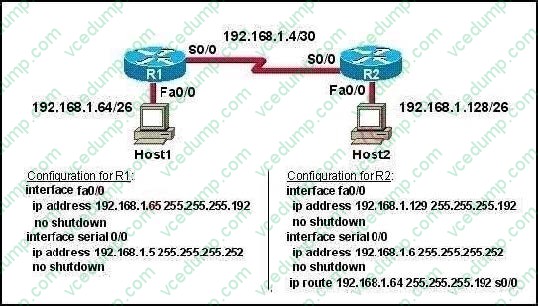

  Refer to the exhibit. A technician pastes the configurations in the exhibit into the two new routers shown.

  Otherwise, the routers are configured with their default configurations. A ping from Host1 to Host2 fails, but the technician is able to ping the S0/0 interface of R2 from Host1. The configurations of the hosts have been verified as correct. What could be the cause of the problem?



  A. The serial cable on R1 needs to be replaced.
  B. The interfaces on R2 are not configured properly.
  C. R1 has no route to the 192.168.1.128 network.
  D. The IP addressing scheme has overlapping subnetworks.
  E. The ip subnet-zero command must be configured on both routers.
  C. R1 has no route to the 192.168.1.128 network.

• Question 56:

  The command ip route 192.168.100.160 255.255.255.224 192.168.10.2 was issued on a router. No routing protocols or other static routes are configured on the router. Which statement is true about this command?

  A. The interface with IP address 192.168.10.2 is on this router.
  B. The command sets a gateway of last resort for the router.
  C. Packets that are destined for host 192.168.100.190 will be sent to 192.168.10.2.
  D. The command creates a static route for all IP traffic with the source address 192.168.100.160.
  C. Packets that are destined for host 192.168.100.190 will be sent to 192.168.10.2.

• Question 57:

  To what type of port would a cable with a DB-60 connector attach?

  A. serial port
  B. console port
  C. Ethernet port
  D. fiber optic port
  A. serial port

• Question 58:

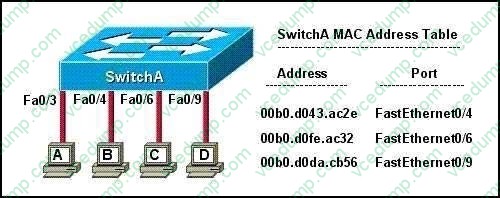

  Refer to the topology and MAC address table shown in the exhibit.



  Host A sends a data frame to host D. What will the switch do when it receives the frame from host A?

  A. The switch will add the source address and port to the MAC address table and forward the frame to host D.
  B. The switch will discard the frame and send an error message back to host A.
  C. The switch will flood the frame out of all ports except for port Fa0/3.
  D. The switch will add the destination address of the frame to the MAC address table and forward the frame to host D.
  A. The switch will add the source address and port to the MAC address table and forward the frame to host D.

• Question 59:

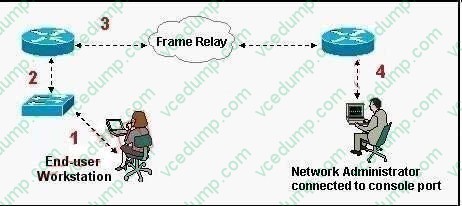

  Refer to the exhibit. What kind of cable should be used to make each connection that is identified by the numbers shown?



  A. 1 - Ethernet crossover cable 2 - Ethernet straight-through cable 3 - fiber optic cable 4 - rollover cable
  B. 1 - Ethernet straight-through cable 2 - Ethernet straight-through cable 3 - serial cable 4 - rollover cable
  C. 1 - Ethernet rollover cable 2 - Ethernet crossover cable 3 - serial cable 4 - null modem cable
  D. 1 - Ethernet straight-through cable 2 - Ethernet crossover cable 3 - serial cable 4 - rollover cable
  E. 1 - Ethernet straight-through cable 2 - Ethernet crossover cable 3 - serial cable 4 - Ethernet straight-through cable
  B. 1 - Ethernet straight-through cable 2 - Ethernet straight-through cable 3 - serial cable 4 - rollover cable

• Question 60:

  Which statement describes the HDLC protocol?

  A. HDLC is compatible between all network vendors.
  B. HDLC utilizes sophisticated flow control mechanisms to ensure reliable data transfer.
  C. On Cisco routers it is the default encapsulation for serial interfaces.
  D. It is the preferred protocol for LAN communication.
  E. The Cisco implementation of HDLC does not include proprietary extensions.
  C. On Cisco routers it is the default encapsulation for serial interfaces.
