Cisco 640-822 Online Practice Questions and Exam Preparation

Cisco 640-822 Online Questions & Answers

• Question 231:

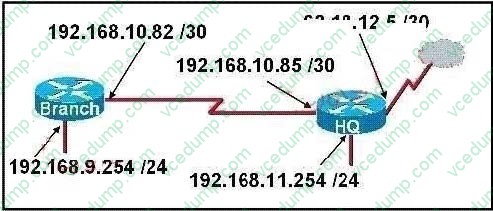

  After the router interfaces shown in the diagram have been configured, it is discovered that hosts in the Branch LAN cannot access the Internet. Further testing reveals additional connectivity issues. What will fix this problem?



  A. Change the address of the Branch router LAN interface.
  B. Change the address of the Branch router WAN interface.
  C. Change the subnet mask of the HQ router LAN interface.
  D. Change the address of the HQ router LAN interface.
  E. Change the address of the HQ router interface to the Internet.
  F. Change the subnet mask of the HQ router interface to the Internet.
  B. Change the address of the Branch router WAN interface.

• Question 232:

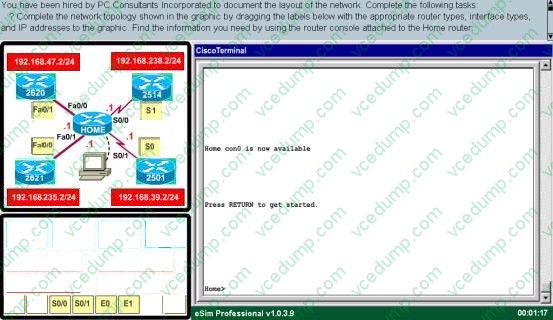

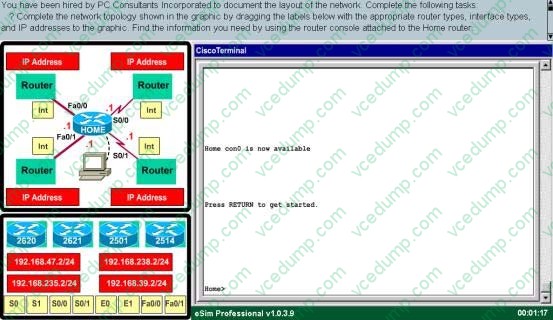

  You have been hired by PC consultants Incorporated to document the layout of the network. Complete the following tasks:

  Complete the network topology shown in the graphic by dragging the lables below with the appropriate router types. Interface types, and IP address to the graphic. Find the information you need by using the router console attached to the

  Home router.

  Select and Place:





• Question 233:

  What should be part of a comprehensive network security plan?

  A. Allow users to develop their own approach to network security.
  B. Physically secure network equipment from potential access by unauthorized individuals.
  C. Encourage users to use personal information in their passwords to minimize the likelihood of passwords being forgotten.
  D. Delay deployment of software patches and updates until their effect on end-user equipment is well known and widely reported.
  E. Minimize network overhead by deactivating automatic antivirus client updates.
  B. Physically secure network equipment from potential access by unauthorized individuals.

• Question 234:

  A host computer has the IP address 192.168.43.139 and netmask 255.255.255.240. On which logical IP network does this host reside?

  A. 192.168.0.0/26
  B. 192.168.0.0/28
  C. 192.168.43.0/28
  D. 192.168.43.64/28
  E. 192.168.43.112/28
  F. 192.168.43.128/28
  F. 192.168.43.128/28

• Question 235:

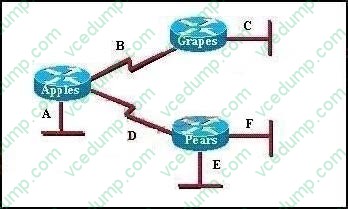

  The RIP network shown in the graphic has been fully operational for two days. Each routing table is complete.

  Which networks will be included in the next routing update from the Apples router to the Pears router?



  A. A, B, C, D, E, F
  B. A, C
  C. A, B, C, D
  D. B, D
  E. D, E, F
  F. A, B, C
  F. A, B, C

• Question 236:

  If NVRAM lacks boot system commands, where does the router look for the Cisco IOS by default?

  A. ROM
  B. RAM
  C. Flash
  D. bootstrap
  E. startup-config
  C. Flash

• Question 237:

  What are two effects on network performance of configuring a switch to store an entire frame before forwarding it to the destination? (Choose two.)

  A. increase in switch operating speed
  B. increased latency
  C. filtering of all frame errors
  D. filtering of collision fragments only E. propagation of corrupted or damaged frames
  F. decreased latency
  B. increased latency
  C. filtering of all frame errors

• Question 238:

  Which two practices help secure the configuration utilities on wireless access points from unauthorized access? (Choose two.)

  A. assigning a private IP address to the AP
  B. changing the default SSID value
  C. configuring a new administrator password
  D. changing the mixed mode setting to single mode
  E. configuring traffic filtering
  B. changing the default SSID value
  C. configuring a new administrator password

• Question 239:

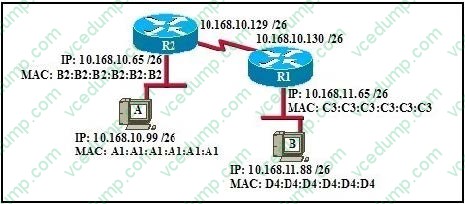

  Refer to the exhibit.



  If host A sends an IP packet to host B, what will the source physical address be in the frame when it reaches host B?

  A. 10.168.10.99
  B. 10.168.11.88
  C. A1:A1:A1:A1:A1:A1
  D. B2:B2:B2:B2:B2:B2
  E. C3:C3:C3:C3:C3:C3
  F. D4:D4:D4:D4:D4:D4
  E. C3:C3:C3:C3:C3:C3

• Question 240:

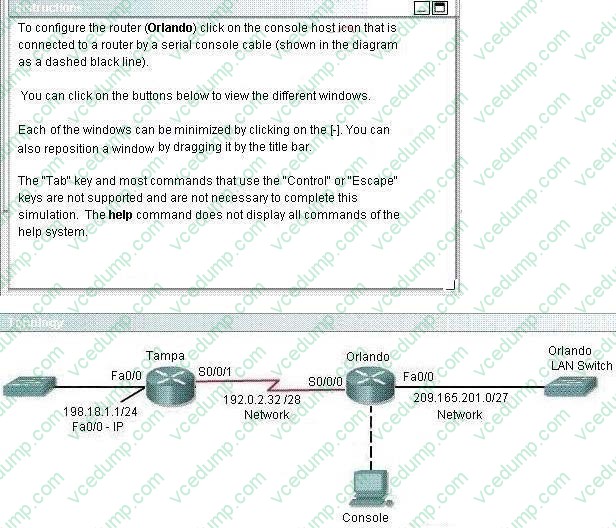

  SIMULATION Lab SIM - RIP v2



  Correct Answer. Check the answer below
  Check the answer below

  ---

  Answer: Here are the answer with solution

  (1)

  Name the router: Router>enable Router#config terminal Router(config)#hostname Orlando

  (2)

  Enable-secret password (cisco10): Orlando(config)#enable secret cisco10

  (3)

  Set the console password toRouterPass: Orlando(config)#line console 0 Orlando(config-line)#password RouterPass Orlando(config-line)#login Orlando(config-line)#exit

  (4)

  Set the Telnet password toscan90: Orlando(config)#line vty 0 4 Orlando(config-line)#password scan90

  Orlando(config-line)#login Orlando(config-line)#exit

  (5)

  Configure Ethernet interface (on the right) of router Orlando:

  The subnet mask of the Ethernet network 209.165.201.0 is 27. From this subnet mask, we can find out the increment by converting it into binary form, that is /27 = 1111 1111.1111 1111.1111 1111.1110 0000. Pay more attention to the last bit

  1 because it tells us the increment, using the formula:

  Increment = 2place of the last bit 1 (starts counting from 0,from right to left), in this case increment = 25= 32.

  Therefore:

  Increment: 32

  Network address:209.165.201.0

  Broadcast address:209.165.201.31 (because 209.165.201.32 is the second subnetwork, so the previous IP 209.165.201.31 is the broadcast address of the first subnet).

  -> The second assignable host address of this subnetwork is209.165.201.2/27 Assign the second assignable host address to Fa0/0 interface of Orlando router:

  Orlando(config)#interface Fa0/0

  Orlando(config-if)#ip address 209.165.201.2 255.255.255.224 Orlando(config-if)#no shutdown

  Orlando(config-if)#exit

  (6)Configure Serial interface (on the left) of router Orlando:

  Using the same method to find out the increment of the Serial network:

  Serial network192.0.2.128/28:

  Increment:16 (/28 = 1111 1111.1111 1111.1111 1111.11110000) Network address:192.0.2.128 (because 8 * 16 = 128 so 192.0.2.128 is also the network address of this subnet)

  Broadcast address:192.0.2.143

  -> The last assignable host address in this subnet is192.0.2.142/28. Assign the last assignable host address to S0/0/0 interface of Orlando router:

  Orlando(config)#interface S0/0/0(or use interface S0/0 if not successful) Orlando(config-if)#ip address 192.0.2.142 255.255.255.240 Orlando(config-if)#no shutdown

  Orlando(config-if)#exit

  (7) Configure RIP v2 routing protocol:

  Orlando(config)#router rip

  Orlando(config-router)#version 2

  Orlando(config-router)#network 209.165.201.0

  Orlando(config-router)#network 192.0.2.128

  Orlando(config-router)#end

  (8)Save the configuration:

  Orlando#copy running-config startup-config

  Finally, you should use thepingcommand to verify all are working properly!
