• Question 131:

  What are two characteristics of Telnet? (Choose two.)

  A. It sends data in clear text format.
  B. It is no longer supported on Cisco network devices.
  C. It is more secure than SSH.
  D. It requires an enterprise license in order to be implemented.
  E. It requires that the destination device be configured to support Telnet connections.
  A. It sends data in clear text format.
  E. It requires that the destination device be configured to support Telnet connections.

• Question 132:

  Which type of address does a Layer 2 switch use to make forwarding decisions?

  A. source MAC address
  B. destination MAC address
  C. source IP address
  D. destination IP address
  E. source and destination IP address
  B. destination MAC address

• Question 133:

  What does the "Inside Global" address represent in the configuration of NAT?

  A. the summarized address for all of the internal subnetted addresses
  B. the MAC address of the router used by inside hosts to connect to the Internet
  C. a globally unique, private IP address assigned to a host on the inside network
  D. a registered address that represents an inside host to an outside network
  D. a registered address that represents an inside host to an outside network

• Question 134:

  Which router command can be used to determine the status of Serial 0/0?

  A. show ip route
  B. show interfaces
  C. show s0/0 status
  D. debug s0/0
  E. show run
  F. show version
  B. show interfaces

• Question 135:

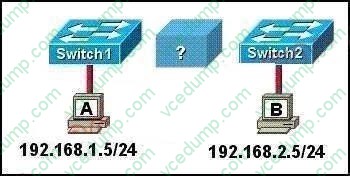

  Refer to the exhibit. What is needed to allow host A to ping host B?



  A. a straight-through cable connecting the switches
  B. a crossover cable connecting the switches
  C. a router connected to the switches with straight-through cables
  D. a CSU/DSU connected to the switches with straight-through cables
  E. a backbone switch connecting the switches with either fiber optic or straight-through cables
  C. a router connected to the switches with straight-through cables

• Question 136:

  SIMULATION

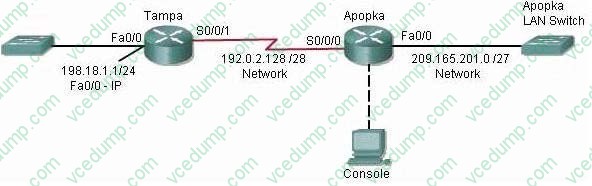

  Central Florida Widgets recently installed a new router in their Apopka office. Complete the network installation by performing the initial router configurations and configuring RIPv2 routing using the router command line interface (CLI) on the Apopka router.

  Configure the router per the following requirements:

  Name of the router is Apopka Enable-secret password is cisco10 The password to access user EXEC mode using the console is RouterPass The password to allow telnet access to the router is scan90

  IPv4 addresses must be configured as follows:

  Ethernet network 209.165.201.0/27 router has second assignable host address in subnet. Serial network is 192.0.2.128/28 router has last assignable host address in the subnet.

  Interfaces should be enabled.

  Routing protocol is RIPv2.

  Instruction:

  To configure the router (Apopka) click on the console host icon that is connected to a router by a serial console cable (shown in the diagram as a dashed black line).

  Each of the windows can be minimized by clicking on the [-]. You can also reposition a window by dragging it by the title bar.

  The "Tab" key and most commands that use the "Control" or "Escape" keys are not supported and are not necessary to complete this simulation. The help command does not display all commands of the help system.

  Correct Answer. Check the answer below
  Check the answer below

  ---

  Answer: 1) Name the router:

  Router>enable

  Router#config terminal

  Router(config)#hostname Apopka

  2) Enable-secret password (cisco10):

  Apopka(config)#enable secret cisco10

  3) Set the console password to RouterPass:

  Apopka(config)#line console 0

  Apopka(config-line)#password RouterPass

  Apopka(config-line)#login

  Apopka(config-line)#exit

  4) Set the Telnet password to scan90:

  Apopka(config)#line vty 0 4

  Apopka(config-line)#password scan90

  Apopka(config-line)#login

  Apopka(config-line)#exit

  5) Configure Ethernet interface (on the right) of router Apopka:

  The subnet mask of the Ethernet network 209.165.201.0 is 27. From this subnet mask, we can find out the increment by converting it into binary form, that is /27 = 1111 1111.1111 1111.1111 1111.1110 0000. Pay more attention to the last bit

  1 because it tells us the increment, using the formula:

  Increment = 2place of the last bit 1 (starts counting from 0,from right to left), in this case increment = 25 = 32. Therefore:

  Increment: 32

  Network address: 209.165.201.0

  Broadcast address: 209.165.201.31 (because 209.165.201.32 is the second subnetwork, so the previous IP 209.165.201.31 is the broadcast address of the first subnet).

  -> The second assignable host address of this subnetwork is 209.165.201.2/27

  Assign the second assignable host address to Fa0/0 interface of Apopka router:

  Apopka(config)#interface Fa0/0

  Apopka(config-if)#ip address 209.165.201.2 255.255.255.224 Apopka(config-if)#no shutdown

  Apopka(config-if)#exit

  6) Configure Serial interface (on the left) of router Apopka:

  Using the same method to find out the increment of the Serial network:

  Serial network 192.0.2.128/28:

  Increment: 16 (/28 = 1111 1111.1111 1111.1111 1111.1111 0000) Network address: 192.0.2.128 (because 8 * 16 = 128 so 192.0.2.128 is also the network address of this subnet)

  Broadcast address: 192.0.2.143

  -> The last assignable host address in this subnet is 192.0.2.142/28.

  Assign the last assignable host address to S0/0/0 interface of Apopka router:

  Apopka(config)#interface S0/0/0 (or use interface S0/0 if not successful) Apopka(config-if)#ip address 192.0.2.142 255.255.255.240 Apopka(config-if)#no shutdown

  Apopka(config-if)#exit

  7) Configure RIP v2 routing protocol:

  Apopka(config)#router rip

  Apopka(config-router)#version 2

  Apopka(config-router)#network 209.165.201.0

  Apopka(config-router)#network 192.0.2.128

  Apopka(config-router)#end

  Save the configuration:

  Apopka#copy running-config startup-config

  Finally, you should use the ping command to verify all are working properly!

• Question 137:

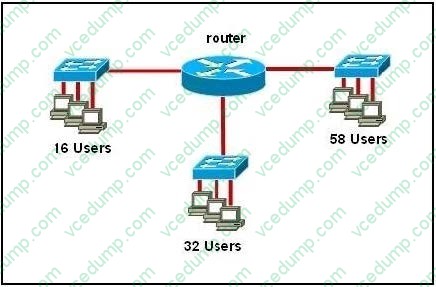

  Refer to the exhibit.



  The IP address space of 128.107.7.0/24 has been allocated for all devices on this network. All devices must use the same subnet mask and all subnets are usable. Which subnet mask is required to apply the allocated address space to the configuration that is shown?

  A. 255.255.254.0
  B. 255.255.255.0
  C. 255.255.255.128
  D. 255.255.255.192
  E. 255.255.255.224
  D. 255.255.255.192

• Question 138:

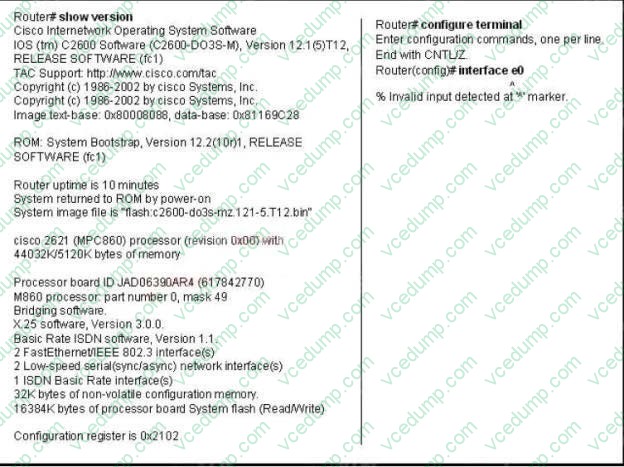

  Refer to the output of the three router commands shown in the exhibit. A new technician has been told to add a new LAN to the company router. Why has the technician received the error message that is shown following the last command?



  A. The interface was already configured.
  B. The interface type does not exist on this router platform.
  C. The IOS software loaded on the router is outdated.
  D. The router does not support LAN interfaces that use Ethernet.
  E. The command was entered from the wrong prompt.
  B. The interface type does not exist on this router platform.

• Question 139:

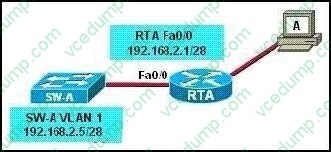

  Refer to the exhibit. Workstation A must be able to telnet to switch SW-A through router RTA for management purposes. What must be configured for this connection to be successful?



  A. VLAN 1 on RTA
  B. default gateway on SW-A
  C. IP routing on SW-A
  D. cross-over cable connecting SW-A and RTA
  B. default gateway on SW-A

• Question 140:

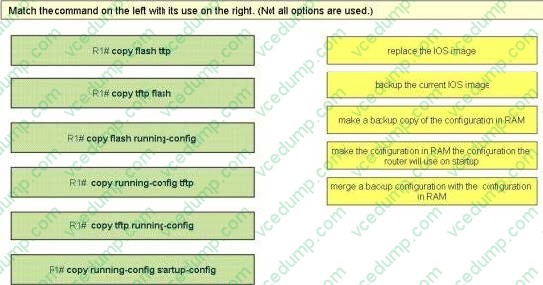

  Match the command on the left with its use on the right. (Not all options are used.)

  Select and Place:
