Cisco 640-461 Online Practice Questions and Exam Preparation

Cisco 640-461 Online Questions & Answers

• Question 1:

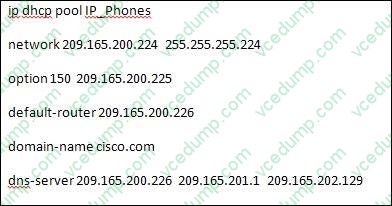

  Refer to the exhibit.



  Which IP address will the IP phones be provided as the TFTP server?

  A. 209.165.200.225
  B. 209.165.200.226
  C. 209.165.201.1
  D. 209.165.202.129
  A. 209.165.200.225

• Question 2:

  Changes that are made to the directory numbers in Cisco Unified Communications Manager 8.x are stored in which database?

  A. IBM Informix
  B. CAR database
  C. SQL database
  D. TimesTen
  A. IBM Informix

• Question 3:

  Which type of single switch port can support data and voice VLANs and is recommended for Cisco Unified IP phones?

  A. multiflex port
  B. trunk port
  C. access port
  D. ISL trunking port
  C. access port

• Question 4:

  An administrator wants to locate and remove all unassigned directory numbers on the Cisco Unified Communications Manager system. Which method is the best method to accomplish this task?

  A. Choose Device > Phone. Search all phones and remove the undesired directory numbers.
  B. Use the Dial Plan Installer to remove the directory numbers.
  C. Use the Disaster Recovery System to restore only valid directory numbers.
  D. Choose Call Routing > Route Plan Report, choose the Unassigned DN drop-down menu, and then remove all orphaned directory numbers.
  E. Choose Device > Device Settings > Device Defaults and use the wizard to locate and remove the orphaned directory numbers.
  D. Choose Call Routing > Route Plan Report, choose the Unassigned DN drop-down menu, and then remove all orphaned directory numbers.

• Question 5:

  A Cisco Unity Connection administrator has set up a shared mailbox for a group of users and configures their extensions to forward to voicemail if the call is unanswered. Users report that callers are not reaching the mailbox and hear only the default system message.

  What must be configured to resolve the issue?

  A. direct routing rule
  B. forwarded routing rule
  C. system distribution list
  D. search space
  B. forwarded routing rule

• Question 6:

  When deploying Cisco Unified Presence, which service is a basic service that can be considered as optional?

  A. Cisco Unified Presence Engine
  B. Cisco Unified Presence Sync Agent
  C. Cisco Unified Presence Session Initiation Protocol Proxy
  D. Cisco Unified Protocol Extensible Messaging Presence and Protocol Agent
  D. Cisco Unified Protocol Extensible Messaging Presence and Protocol Agent

• Question 7:

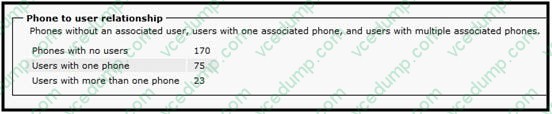

  Refer to the exhibit.



  Which Cisco Unified Communications Manager report is being displayed?

  A. Unified CM User Device Count
  B. Unified CM Extension Mobility
  C. Unified CM Device Distribution Summary
  D. License Unit Report
  A. Unified CM User Device Count

• Question 8:

  Which two steps in configuration must be completed to deploy Cisco Unified Personal Communicator? (Choose two.)

  A. Each user must have a unique ID.
  B. The user ID is converted into a softphone device name.
  C. The users must power their PCs.
  D. Each user must provide a username and password.
  A. Each user must have a unique ID.
  B. The user ID is converted into a softphone device name.

• Question 9:

  When a phone that is registered as a Skinny Client Control Protocol device goes off hook, which counter gets incremented until it goes back on hook?

  A. CallsAttempted
  B. CallsActive
  C. CallsInProgress
  D. CallsCompleted
  C. CallsInProgress

• Question 10:

  Of the fields listed, which two fields are required to successfully create a phone user in Cisco Unified Communications Manager? (Choose two.)

  A. Last Name
  B. PIN (and confirmation PIN)
  C. Primary Extension
  D. User ID
  A. Last Name
  D. User ID
