• Question 31:

  What are the ways the RID can be created on an Nokia 7750 SR router? (Choose three)

  A. From the last 32 bits of the chassis MAC address
  B. From the first 32 bits of the chassis MAC address
  C. The loopback IP address
  D. By using the command "config router ospf rid X.X.X.X"
  E. From the system IP address
  F. From the highest interface IP address
  A. From the last 32 bits of the chassis MAC address
  D. By using the command "config router ospf rid X.X.X.X"
  E. From the system IP address

• Question 32:

  Which LSA type is used for OSPF-TE?

  A. Type 8 LSA -- Link Local LSA
  B. Type 9 LSA -- Link local Opaque LSA
  C. Type 10 LSA -- Area local Opaque LSA
  D. Type 11 LSA --AS Opaque LSA
  C. Type 10 LSA -- Area local Opaque LSA

• Question 33:

  What is the function of the Cluster_List attribute?

  A. It is used for loop detection within the same cluster.
  B. It is used for loop detection between clusters.
  C. It is used for loop detection in a confederation.
  D. It is used to identify the route reflectors within an AS.
  B. It is used for loop detection between clusters.

• Question 34:

  Which of the following prefix-lists is the most specific match for prefix 172.31.2.1/24?

  A. Prefix 172.16.0.0/12 longer.
  B. Prefix 172.31.0.0/22 longer.
  C. Prefix 172.31.0.0/23 longer.
  D. Prefix 172.31.0.0/24 exact.
  B. Prefix 172.31.0.0/22 longer.

• Question 35:

  Click the exhibit.

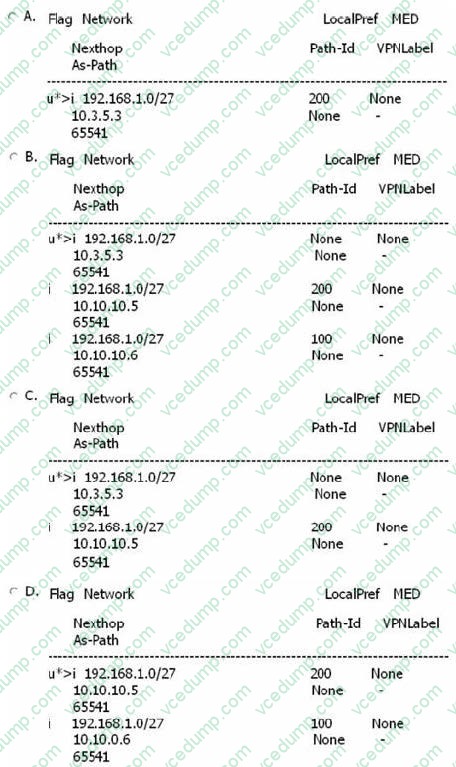

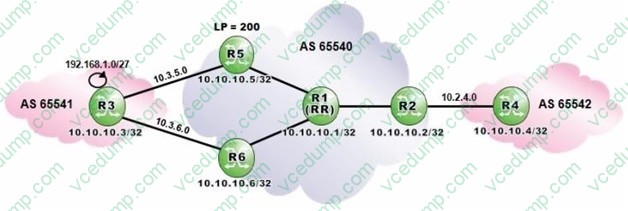

  Router R1 is a route reflector with clients R2, R5 and R6. Prefixes advertised by router R5 have a local preference of 200. Router R3 advertises the prefix 192.168.1.0/27 to routers R5 and R6. Assuming that none of the routers in AS 65540 is configured with "advertise-external", what is the expected output of "show router bgp routes" on router R5?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

  ---

  Explanation/Reference:

• Question 36:

  From the list below select the statements that describe the behavior of link state information aging. (Choose 2)

  A. The age for newly created link state information is set to 0 for OSPF and 1200 for IS-IS
  B. The age for newly created link state information is set to 1200 for OSPF and 0 for IS-IS
  C. The age is incremented or decremented as it is flooded from router to router and as it is held in the topological database.
  D. The age is incremented or decremented only as it is held in the topological database and not as it is flooded router to router.
  A. The age for newly created link state information is set to 0 for OSPF and 1200 for IS-IS
  C. The age is incremented or decremented as it is flooded from router to router and as it is held in the topological database.

• Question 37:

  What causes an adjacency to change from down to two ways?

  A. When a link state update is received in response to a link state request.
  B. When a router receives a Hello packet that contains its own router ID in the neighbor list from a neighbor.
  C. When a router receives a database description packet from a neighbor.
  D. When a link state acknowledgement is received in response to a link state update.
  B. When a router receives a Hello packet that contains its own router ID in the neighbor list from a neighbor.

• Question 38:

  Click on the exhibit.

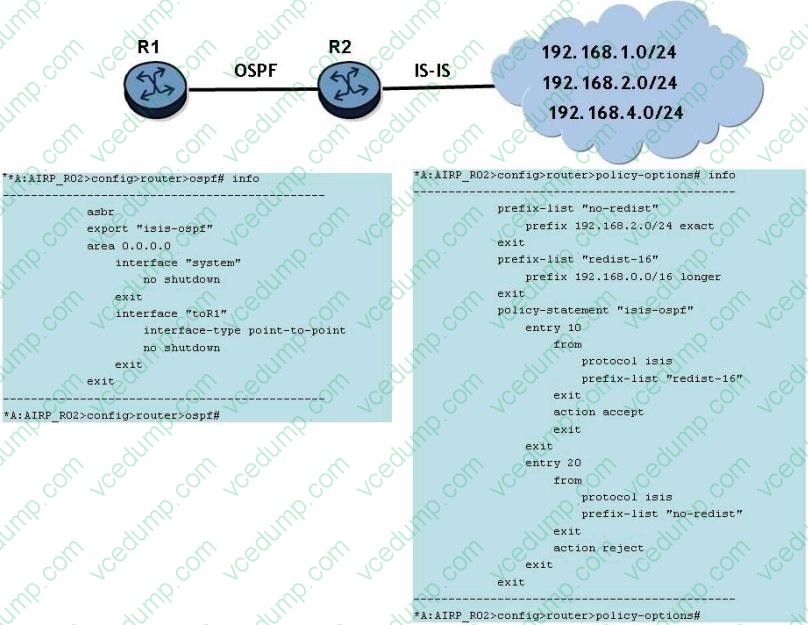

  Router R2 learns the networks shown from IS-IS. Router R2 is configured to redistribute routes from IS-IS to OSPF as shown. Assume the OSPF and IS-IS adjacencies are operational.

  How many OSPF Type 5 LSAs will router R1 receive from router R2?

  B. 1
  C. 2
  D. 3
  E. 4
  D. 3

• Question 39:

  What happens by default on an Nokia 7750 SR when a null encapsulated SAP receives a frame with a VLAN tag?

  A. The original VLAN tag is removed.
  B. The original VLAN tag is kept.
  C. The VLAN tag is replaced by a provider tag.
  D. The VLAN tag is kept and a provider tag is added.
  B. The original VLAN tag is kept.

• Question 40:

  What causes an adjacency to change from "Init" to "Two Way"?

  A. When a Link State Update is received in response to a Link State Request
  B. When a router receives a Hello packet from a neighbor that contains its router id in the neighbor list
  C. When OSPF neighbors exchange Database Descriptor packets
  D. When a Link State Acknowledgement is received in response to a Link State Update
  B. When a router receives a Hello packet from a neighbor that contains its router id in the neighbor list
