Nokia 4A0-C04 Online Practice Questions and Exam Preparation

Nokia 4A0-C04 Online Questions & Answers

• Question 211:

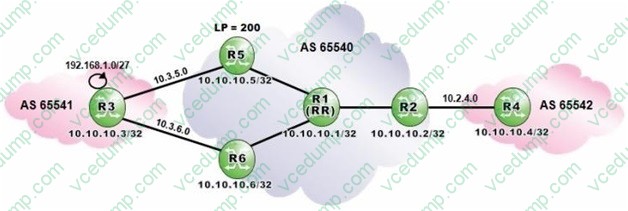

  Click the exhibit.

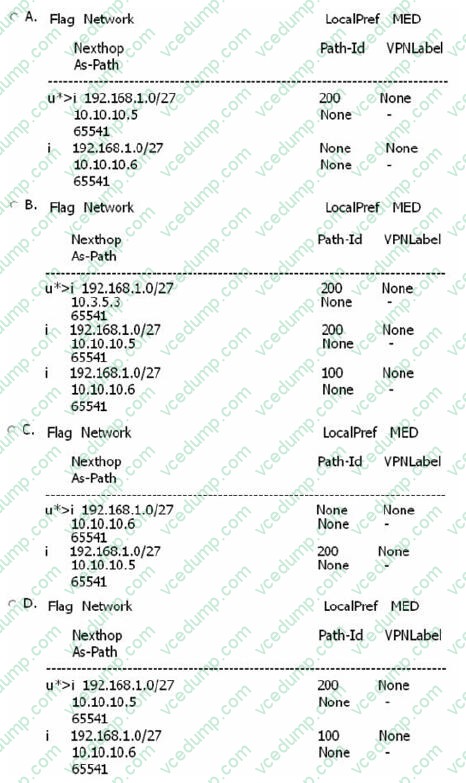

  Router R1 is a route reflector with clients R2, R5 and R6. Prefixes advertised by router R5 have a local preference of 200. Router R3 advertises the prefix 192.168.1.0/27 to routers R5 and R6. Assuming that router R6 is configured with "advertise-external", what is the expected output of "show router bgp routes" when executed on router R1?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

  ---

  Explanation/Reference:

• Question 212:

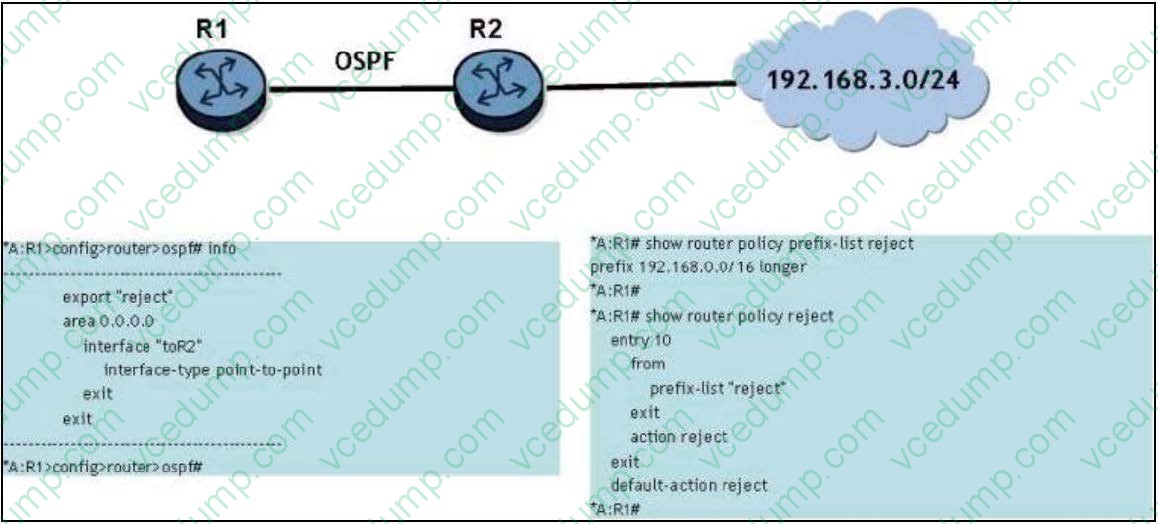

  Click the exhibit button.



  Router R2 advertises the network 192.168.3.0/24 to router R1 via OSPF. A route policy has been constructed to discard the route on router R1; however, it is not working. What is the problem?

  A. The prefix list reject should be "192.168.3.0/16 exact".
  B. Router R1 should be configured as an OSPF "asbr".
  C. The policy "reject" should be set for import rather than export.
  D. The policy was likely not "committed" after creation.
  E. This is not possible because OSPF cannot use import policies.
  E. This is not possible because OSPF cannot use import policies.

• Question 213:

  Which one of the commands below will create a static route to network 2.3.4.0/24 on the AlcatelLucent 7750 SR router?

  A. Static route 2.3.4.0 255.255.255.0 next hop 3.4.5.6
  B. Static-route next-hop 3.4.5.6 2.3.4.0/24
  C. Static route 2.3.4.0/24 next hop 3.4.5.6
  D. Static-route 2.3.4.0/24 next-hop 3.4.5.6
  D. Static-route 2.3.4.0/24 next-hop 3.4.5.6

• Question 214:

  Which of the following regarding BGP confederations is FALSE?

  A. The entire confederation is viewed as a single AS by an eBGP peer.
  B. Within a confederation, each member AS is considered as a stand-alone AS.
  C. Member ASs within a confederation can use route reflection.
  D. Member ASs must be fully meshed within a confederation.
  D. Member ASs must be fully meshed within a confederation.

• Question 215:

  A static route is created using the command "static-route 0.0.0.0/0 next-hop 3.3.3.1". What command could be used to test the static route on an Nokia 7750 SR?

  A. Ping static 3.3.3.1
  B. Ping static 0.0.0.0/0
  C. Ping 3.3.3.1
  D. Ping 0.0.0.0
  C. Ping 3.3.3.1

• Question 216:

  What is the default inbound metric for RIP on the Nokia 7750 SR?

  A. Whatever the advertised metric happens to be.
  B. A value of 1.
  C. This must be administratively set as there is no default value.
  D. A value of 15.
  B. A value of 1.

• Question 217:

  If an LSP needs to use an admin group, which of the following configurations is NOT required on the Nokia 7750 SR?

  A. Assign an admin group to a MPLS interface.
  B. Configure CSPF on the LSP.
  C. Configure at least one strict hop on the LSP path.
  D. Configure an "include" or "exclude" statement on the LSP path.
  C. Configure at least one strict hop on the LSP path.

• Question 218:

  Which of the following statements regarding the election of the designated router (DR) by OSPF routers are true? (Choose two)

  A. The router with the lowest priority is the DR.
  B. The router with the highest priority is the DR.
  C. If priorities are the same, the DR is chosen based on the lowest RID.
  D. If priorities are the same, the DR is chosen based on the highest RID.
  B. The router with the highest priority is the DR.
  D. If priorities are the same, the DR is chosen based on the highest RID.

• Question 219:

  Which of the following about SAPs is TRUE?

  A. More than one SAP can be configured on a physical port that is configured for null encapsulation.
  B. Dot1Q Ethernet encapsulated access ports can support multiple SAPs and services.
  C. SAPs can be created on ports designated as "Network".
  D. SAPs can only be created on Ethernet ports.
  B. Dot1Q Ethernet encapsulated access ports can support multiple SAPs and services.

• Question 220:

  What is the source IP address in an OSPF update?

  A. 224.0.0.5
  B. 224.0.0.6
  C. The unicast IP address of the interface the update is sent on
  D. The system address of the router.
  C. The unicast IP address of the interface the update is sent on
