Nokia 4A0-C01 Online Practice Questions and Exam Preparation

Nokia 4A0-C01 Online Questions & Answers

• Question 591:

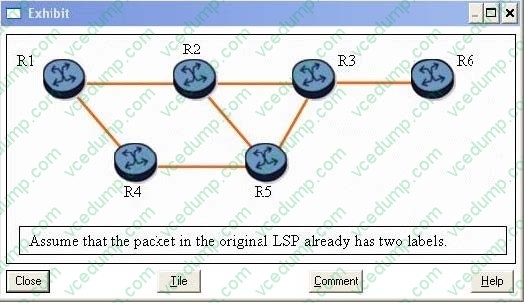

  Click on the exhibit button below. Assume the following:



  -The protected path is R1-R2-R3-R6.

  -Fast reroute one-to-one protection is enabled.

  If the original LSP already has two labels, and router R2 has failed, how many labels will there be in packets on the detour path?

  A. 1
  B. 2
  C. 3
  D. 4
  B. 2

• Question 592:

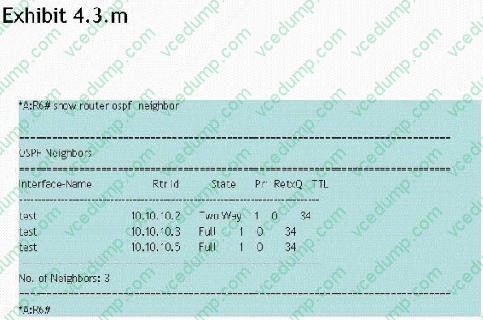

  Click the exhibit button.



  What can you deduce from the show command on router R6?

  A. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment. The DR for this segment would be the router with router ID 10.10.10.5.
  B. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment; however, this command does not indicate whether 10.10.10.3 or 10.10.10.5 is the DR or BDR.
  C. The router R6 interface is in a multi-access segment. It is the BDR, which is why it is not adjacent to the other routers.
  D. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment. The DR for this segment would be the router with router ID 10.10.10.3.
  B. The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment; however, this command does not indicate whether 10.10.10.3 or 10.10.10.5 is the DR or BDR.

• Question 593:

  Consider a network that has four PE routers. If a customer wants a VPLS that has sites on only three of the PEs, how many mesh SDPs need to be configured for this service?

  A. 3
  B. 4
  C. 6
  D. 12
  C. 6

• Question 594:

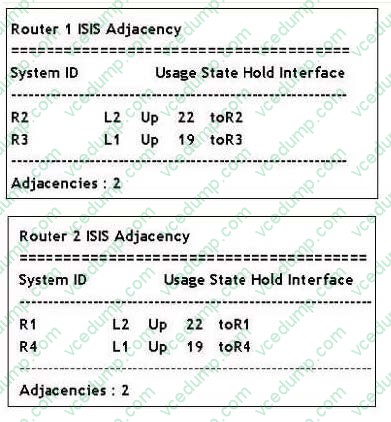

  Click the exhibit button. Assuming point-to-point links, which of the following statements is true?



  A. Routers R1 and R2 are L2 routers. Routers R3 and R4 are L1/L2 routers
  B. Routers R1, R2, and R4 are L1/L2 routers. Router R3 is an L1 router,
  C. Routers R1, R2, and R3 are L2 routers. Router R4 is an L1 router,
  D. Routers R1 and R2 are L1/L2 routers. Routers R3 and R4 are L1 routers
  D. Routers R1 and R2 are L1/L2 routers. Routers R3 and R4 are L1 routers

• Question 595:

  The following are statements about fields in the Hello packet that must match in order to form an OSPF adjacency. Which statement is correct?

  A. The area ID does not have to match.
  B. The value of the E bit in the options field does not have to match.
  C. The value of the Hello interval does not have to match.
  D. The value of the network mask does not have to match.
  E. The area ID, the E bit value, the Hello interval and network mask must all match.
  E. The area ID, the E bit value, the Hello interval and network mask must all match.

• Question 596:

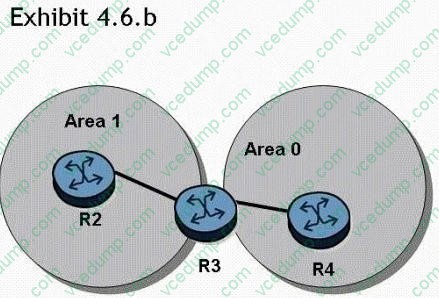

  Click the exhibit button.

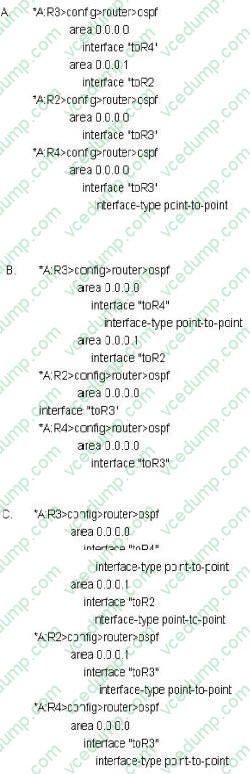

  Which of the following would correctly configure routers R2, R3, and R4?





  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 597:

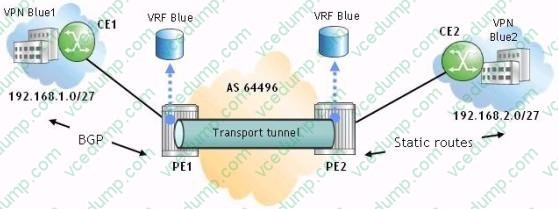

  Click the exhibit.



  Routes are exchanged between CE1 and PE1 using BGP. CE2 and PE2 use static routes to forward traffic to and from the VPRN. Which of the following is FALSE?

  A. An export policy is required on PE1 to advertise routes to CE1.
  B. An export policy is required on CE1 to advertise local routes to PEL
  C. An export policy is required to advertise routes between the PE routers.
  D. No export policy is required on PE2 or CE2 due to the static routes.
  C. An export policy is required to advertise routes between the PE routers.

• Question 598:

  What labels are encapsulated in the tunnels used by a 6PE deployment?

  A. The inner label is the IPv4 Explicit Null. The outer label is the MPLS transport label.
  B. The inner label is an MPLS transport label. The outer label is the IPv4 Explicit Null.
  C. The inner label is the IPv6 Explicit Null. The outer label is an MPLS transport label.
  D. The inner label is an MPLS transport label. The outer label is the IPv6 Explicit Null.
  C. The inner label is the IPv6 Explicit Null. The outer label is an MPLS transport label.

• Question 599:

  Which of the following is a primary cause of IP hyper-aggregation?

  A. IP routing protocols do not always select the best route to a destination.
  B. IP routing protocols always select multiple routes to a destination.
  C. IP routing protocols do not make use of all available network attributes to select a path
  D. Improper network design results in limited network path redundancy.
  C. IP routing protocols do not make use of all available network attributes to select a path

• Question 600:

  Which of the following about T-LDP on the Alcatel-Lucent 7750 SR is FALSE?

  A. T-LDP is used to provide an end-to-end session between two PE routers.
  B. T-LDP is used to signal service labels for Layer 2 services.
  C. T-LDP is used to establish transport tunnels for Layer 2 services.
  D. T-LDP is used in LDP over RSVP solution.
  C. T-LDP is used to establish transport tunnels for Layer 2 services.
