Nokia 4A0-C01 Online Practice Questions and Exam Preparation

Nokia 4A0-C01 Online Questions & Answers

• Question 431:

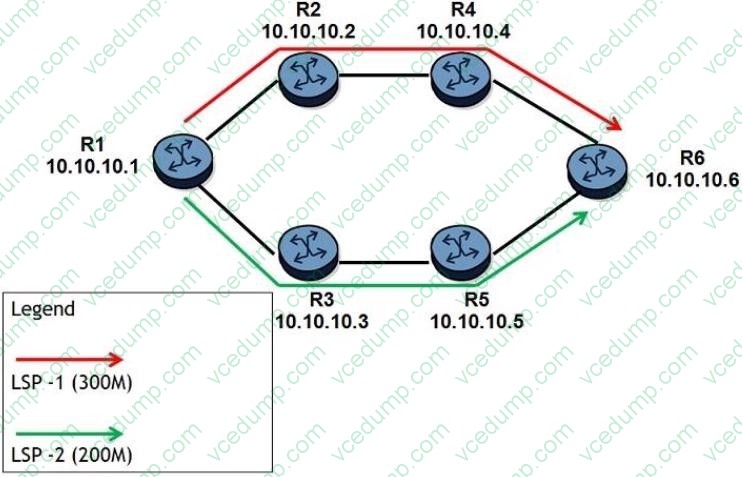

  Click on the exhibit.



  Initially, all links along the path R1-R2-R4-R6 have 400Mbps unreserved bandwidth and all links along the path R1-R3-R5-R6 have 800Mbps unreserved bandwidth. Shared Explicit reservation style is used and Make-Before-Break is enabled. Both fully loose LSPs have been signaled as shown. Later, the configured bandwidth for LSP-1 is changed to 400Mbps. Which of the following is TRUE?

  A. After a new path for LSP-1 is established on R1-R3-R5-R6, the old path is torn down.
  B. After the old path for LSP-1 is torn down, the new path is established on R1-R3-R5-R6.
  C. LSP-1 will stay on R1-R2-R4-R6 because there is enough bandwidth on the existing path.
  D. LSP-1 will be torn down because CSPF fails to find a new path.
  C. LSP-1 will stay on R1-R2-R4-R6 because there is enough bandwidth on the existing path.

• Question 432:

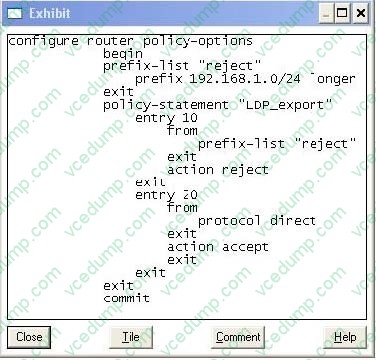

  Click on the exhibit button.



  The policy on router R2 is applied as an LDP export policy. What FECs now appear in router R2's LIB?

  A. Local FECs, not including those in the 192.168.1.0/24 address space.
  B. Only system ID FECs may appear in the LIB.
  C. Any local FECs, except those with a 24 bit mask.
  D. Local FECs in the 192.168.1.0/24 address space
  A. Local FECs, not including those in the 192.168.1.0/24 address space.

• Question 433:

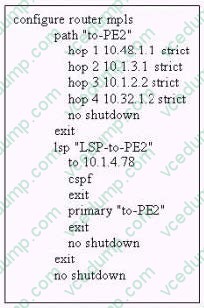

  Click on the exhibit button below.



  Given the configuration below, what is the system ID of the destination node?

  A. 10.32.1.2
  B. 10.1.478
  C. 1048.1.1
  D. Cannot tell from this configuration
  E. 10.1.2.2
  B. 10.1.478

• Question 434:

  What is the replacement for ARP in IPv6?

  A. The use of Broadcast messages in combination with Neighbor Advertisement messages.
  B. The use of Anycast addresses in combination with Neighbor Advertisement messages.
  C. The use of Solicited-node multicast addresses in combination with Neighbor Advertisement messages.
  D. The use of Anycast addresses in combination with Link-Local Advertisement messages.
  C. The use of Solicited-node multicast addresses in combination with Neighbor Advertisement messages.

• Question 435:

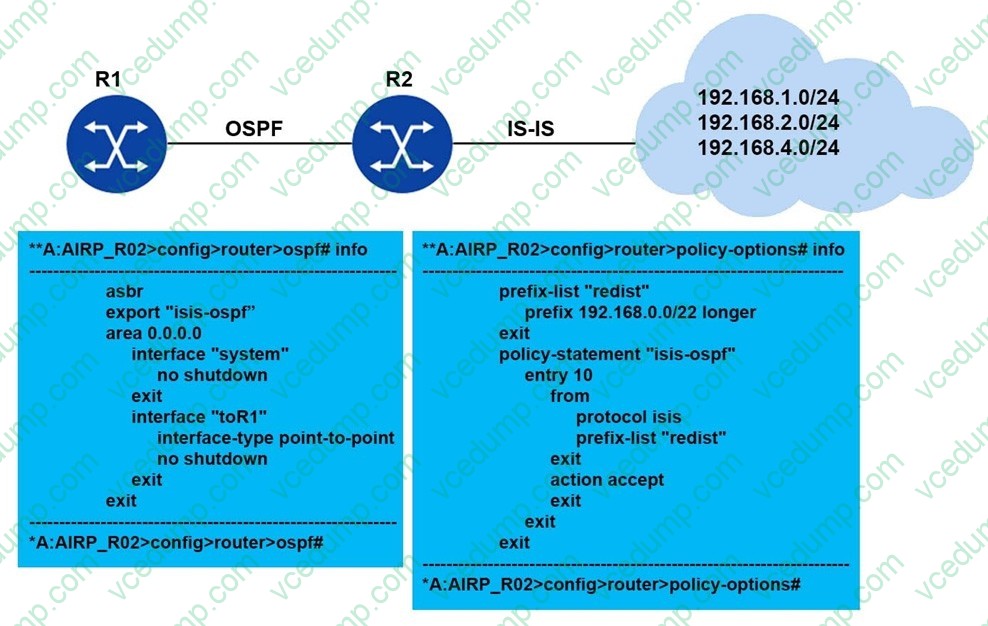

  Router R2 learns the networks shown from IS-IS. Router R2 is configured to redistribute routes from IS-IS to OSPF as shown. How many OSPF Type 5 LSAs will router R1 receive from router R2? Assume the OSPF and IS-IS adjacencies are operational.



  B. 1
  C. 2
  D. 3
  E. 4
  D. 3

• Question 436:

  At what point is the LSP SRM flag cleared when an LSP is sent on an IS-IS point-to-point link?

  Choose two answers.

  A. As soon as the LSP is transmitted.
  B. When an acknowledgment is received in the form of PSNP.
  C. When an older LSP is received.
  D. When a newer or same aged LSP is received.
  E. Only when a newer LSP is received
  B. When an acknowledgment is received in the form of PSNP.
  D. When a newer or same aged LSP is received.

• Question 437:

  Which of the following describes how a router sets the destination IP address for an RSVP RESV message?

  A. It sets the address to the system address of the head-end router.
  B. It sets the address to the next upstream hop from the ERO.
  C. It sets the address to the next upstream hop from the PSB.
  D. It sets the address to the next upstream hop from the RRO.
  C. It sets the address to the next upstream hop from the PSB.

• Question 438:

  Which of the following about LSPs is FALSE?

  A. IGP-based LSPs are calculated based on information contained in routing tables.
  B. Constraint-based LSPs are calculated using the head-end router's TED.
  C. Constraint-based LSPs must use RSVP-TE signaling.
  D. IGP-based LSPs must use LDP signaling.
  D. IGP-based LSPs must use LDP signaling.

• Question 439:

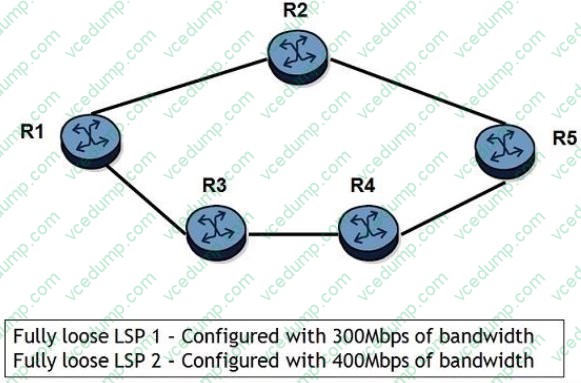

  Click on the exhibit.



  Initially, all links have 800Mbps of unreserved bandwidth. All links are of equal costs. Shared explicit reservation style is used. LSP 1 is signaled first with a setup and hold priority of 2. Then, LSP 2 is signaled with setup and hold priority of 5. Both LSPs go from R1 to R5. Which of the following is TRUE?

  A. LSP 1 will follow R1-R3-R4-R5. LSP 2 will follow R1-R2-R5.
  B. LSP1 will follow R1-R2-R5. LSP 2 will follow R1-R3-R4-R5.
  C. Both LSP 1 and LSP 2 will follow R1-R2-R5.
  D. Both LSP 1 and LSP 2 will follow R1-R3-R4-R5.
  C. Both LSP 1 and LSP 2 will follow R1-R2-R5.

• Question 440:

  Which of the following about Fast Reroute link protection tunnels is FALSE?

  A. Link protection tunnels are established if a router is unable to establish node protection tunnels.
  B. Link protection tunnels are only requested for a primary LSP path.
  C. Link protection tunnels can be created for both one-to-one or facility Fast Reroute.
  D. Link protection tunnels detour around a failed next downstream router.
  D. Link protection tunnels detour around a failed next downstream router.
