Nokia 4A0-C01 Online Practice Questions and Exam Preparation

Nokia 4A0-C01 Online Questions & Answers

• Question 371:

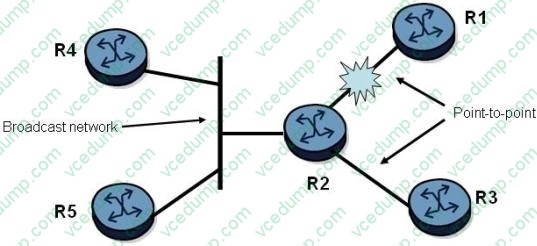

  Click on the exhibit.



  OSPF router R2 has both point-to-point and broadcast interfaces and it is not a DR for any interfaces. Router R2 detects the link failure between itself and router R1. Which of the following is correct?

  A. Router R2 sends an update to 224.0.0.5 on its broadcast and point-to-point interfaces. The DR does not send any updates.
  B. Router R2 sends an update to 244.0.0.5 on its point-to-point interfaces. The DR sends an update to 224.0.0.6 on the broadcast network.
  C. Router R2 sends an update to 224.0.0.5 out its point-to-point interfaces and an update to 224.0.0.6 out its broadcast interface. The DR sends updates to 224.0.0.5 on the broadcast network.
  D. Router R2 sends an update to 224.0.0.6 out its point-to-point interfaces and an update to 224.0.0.5 out its broadcast interface. The DR sends an update to 224.0.0.6 on the broadcast networks.
  C. Router R2 sends an update to 224.0.0.5 out its point-to-point interfaces and an update to 224.0.0.6 out its broadcast interface. The DR sends updates to 224.0.0.5 on the broadcast network.

• Question 372:

  Which of the following describes the purpose of 6over4 tunneling?

  A. To give IPv6 traffic preferential routing over IPv4 routes.
  B. To allow core routers running only IPv6 protocols to carry IPv4 traffic.
  C. To give IPv4 only routers the ability to route based on IPv6 addresses.
  D. To allow IPv6 traffic to pass through an IPv4 network.
  D. To allow IPv6 traffic to pass through an IPv4 network.

• Question 373:

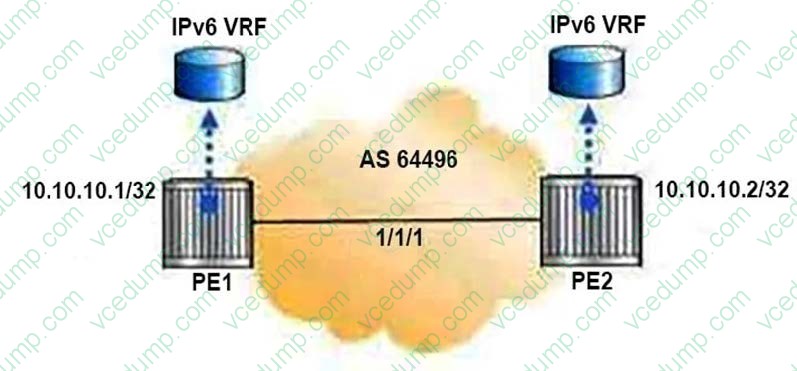

  The two PEs are providing 6VPE and IPv4 VPRNs. The core network is IPv4/MPLS. Which of the following is the BGP family configuration for the MP-BGP on the PEs?



  A. family ipv4 ipv6
  B. family vpn-ipv4 ipv6
  C. family vpn-ipv4 vpn-ipv6
  D. family ipv6 vpn-ipv6
  C. family vpn-ipv4 vpn-ipv6

• Question 374:

  Which of the following about the Link LDP discovery process on the Alcatel-Lucent 7750 SR is FALSE?

  A. LDP Hello messages are sent over TCP.
  B. LDP Hello messages are sent to the All Routers address 224.0.0.2.
  C. LDP Hello messages are exchanged between all directly connected LDP enabled routers.
  D. Each LDP enabled router must have its own unique system IP address.
  A. LDP Hello messages are sent over TCP.

• Question 375:

  A CE is connected to an IES interface. Which of the following is TRUE?

  A. The CE must be an IGP peer of the IES.
  B. The CE must be on the same subnet as the IES.
  C. The CE must use an E-pipe to connect to the IES.
  D. The CE must fragment any frames that are too large for the IES.
  B. The CE must be on the same subnet as the IES.

• Question 376:

  On which component is vc-type configured to create an E-pipe service that preserves the VLAN tag during transport?

  A. The SDP itself (outside of the epipe context).
  B. The SAP in the E-pipe.
  C. The mesh SDP in the E-pipe.
  D. The spoke SDP in the E-pipe.
  D. The spoke SDP in the E-pipe.

• Question 377:

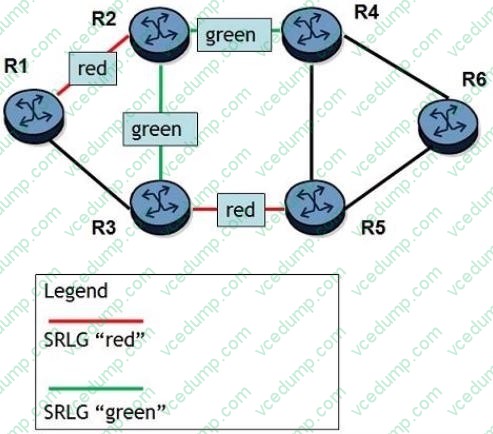

  Click on the exhibit.



  An LSP's primary path takes R1-R3-R5-R6. Its fully loose secondary path is configured for SRLG. All links are of equal cost. Which path will the secondary path take?

  A. The secondary path will take R1-R3-R2-R4-R6.
  B. The secondary path will take R1-R2-R4-R6.
  C. The secondary path will take R1-R2-R3-R5-R6.
  D. The secondary path will take R1-R3-R2-R4-R5-R6.
  A. The secondary path will take R1-R3-R2-R4-R6.

• Question 378:

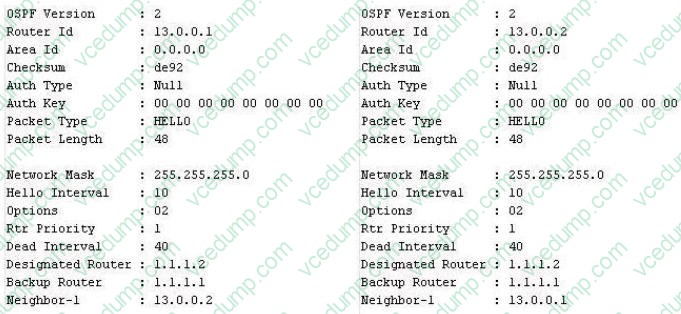

  Click on the exhibit.



  Two neighboring OSPF routers have exchanged the packets shown. What state is the adjacency in?

  A. Down
  B. Initializing
  C. 2-way
  D. Full
  D. Full

• Question 379:

  An OSPF adjacency is stuck in the exstart state. What is the most likely cause?

  A. The MTU does not match on both interfaces.
  B. OSPF is not enabled on one of the routers.
  C. The router ID is the same on both routers.
  D. An OSPF Hello has not been received from the neighbor.
  E. The interfaces are configured as point-to-point on one side and broadcast on the other.
  A. The MTU does not match on both interfaces.

• Question 380:

  An LSP path is configured as follows:

  -Shared-explicit reservation style

  -Make-before-break (MBB) enabled

  -

  500Mpbs bandwidth reserved on a 1Gbps link

  With 100Mbps of unreserved bandwidth remaining, the operator increases the LSP-path's bandwidth reservation to 900Mbps. What happens to the existing LSP?

  A. CSPF looks for the delta bandwidth, taking down the first path if necessary.
  B. CSPF looks for the delta bandwidth, implementing make-before-break.
  C. After 5 failed attempts to find the bandwidth requested, the head end disables the LSP.
  D. CSPF looks for the entire bandwidth requested, implementing MBB.
  B. CSPF looks for the delta bandwidth, implementing make-before-break.
