Nokia 4A0-C01 Online Practice Questions and Exam Preparation

Nokia 4A0-C01 Online Questions & Answers

• Question 221:

  What is the minimum Ethernet physical network MTU required for a Layer 2 service on an MPLS encapsulated SDP with a service MTU of 1500?

  A. 1500
  B. 1508
  C. 1514
  D. 1522
  D. 1522

• Question 222:

  In an OSPF Hello packet what fields must match all neighbor routers on the segment? (Choose 3)

  A. Area ID
  B. Hello and Dead Intervals
  C. Stub flag
  D. DR and BDR addresses
  E. The list of neighbors
  A. Area ID
  B. Hello and Dead Intervals
  C. Stub flag

• Question 223:

  What are the types of networks supported on an Alcatel-Lucent 7750 SR for OSPF? (Choose 2)

  A. Broadcast
  B. Non-Broadcast Multi-Access
  C. Point-to-Point
  D. Point-to-Multipoint
  A. Broadcast
  C. Point-to-Point

• Question 224:

  Which approach to LSP path diversity provides the most control, but the least flexibility?

  A. Administrative Groups
  B. Shared Risk Link Groups
  C. Strict hop LSP paths
  D. Fast reroute
  C. Strict hop LSP paths

• Question 225:

  What is the primary purpose of variable length subnet masks (VLSM)?

  A. To reduce the size of each routing update.
  B. To allow interoperability between routing protocols.
  C. To allow different subnet masks for different subnets.
  D. To reduce the size of the routing table.
  C. To allow different subnet masks for different subnets.

• Question 226:

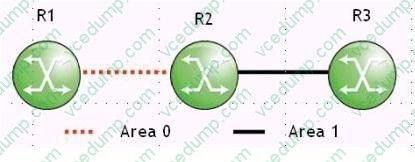

  Click on the exhibit button below:



  Consider the following:

  -Router R2 is an ABR in OSPF Areas 0 and 1.

  -

  Router R2 advertises the aggregate prefix 10.10.10.0/24 into Area 1.

  -

  Router R1 in Area 0 generates LDP labels for FECs 10.10.102/31 and 10.10.10.4/31

  Router R3 in Area 1 places these FECs in its LIB, but it does not place them in its LFIB. What can you do on router R3 to make it populate these labels in its LFIB?

  A. Disable route summarization on router R3
  B. Enable LDP aggregate prefix match
  C. Create an import policy to accept these FECs
  D. Disable LDP exact match on the specified FECs
  B. Enable LDP aggregate prefix match

• Question 227:

  If the Alcatel-Lucent 7750 SR is rebooted after an "admin save'' has been performed, which of the following about mirror services is TRUE?

  A. Only the mirror source must be re-configured.
  B. Only the mirror destination must be re-configured.
  C. Both the mirror destination and mirror source must be re-configured.
  D. Neither the mirror destination nor the mirror source must be re-configured.
  A. Only the mirror source must be re-configured.

• Question 228:

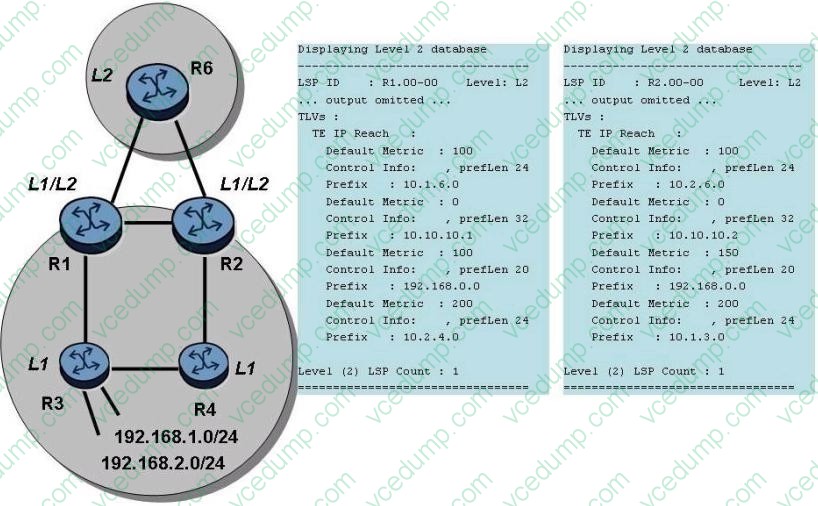

  Click on the exhibit.



  Given the contents of the LSPs from routers R1 and R2, which of the following is TRUE?

  A. Router R1 summarizes the prefixes from router R3 as 192.168.0.0/16 and router R2 does not summarize the prefixes.
  B. Router R1 does not summarize the prefixes from routers R3 and R2 summarizes them as 192.168.0.0/16.
  C. Router R1 summarizes the prefixes from router R3 as 192.168.0.0/20 and router R2 does not summarize the prefixes.
  D. Router R1 does not summarize the prefixes from routers R3 and R2 summarizes them as 192.168.0.0/20.
  E. Both routers R1 and R2 summarize the prefixes from R3 as 192.168.0.0/20.
  F. Neither router R1 nor router R2 summarizes the prefixes from router R3.
  E. Both routers R1 and R2 summarize the prefixes from R3 as 192.168.0.0/20.

• Question 229:

  Which of the following LDP messages are used in the successful establishment of LDP sessions? Choose three answers

  A. Label request message
  B. Notification message
  C. Address message
  D. Keepalive message
  E. Initialization message
  F. Hello message
  D. Keepalive message
  E. Initialization message
  F. Hello message

• Question 230:

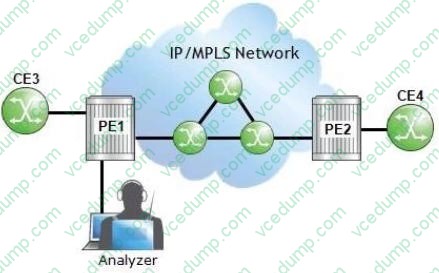

  Click the exhibit.



  The operator at PE1 wants to analyze the traffic between CE4 and PE2. On an Alcatel- Lucent 7750 SR, which of the following is required as part of the configuration?

  A. Both PE1 and PE2 need a mirror source.
  B. PE2 needs a mirror source with the remote source specified.
  C. PE1 needs a mirror source with the remote source specified.
  D. Both PE1 and PE2 need a mirror destination.
  E. PE2 needs a mirror destination that specifies a SAP.
  D. Both PE1 and PE2 need a mirror destination.
