Nokia 4A0-C01 Online Practice Questions and Exam Preparation

Nokia 4A0-C01 Online Questions & Answers

• Question 161:

  Which of the following statements regarding distance vectors protocols are true? (Choose two answers).

  A. RIPv1, RIPv2, and BGP are distance vector protocols.
  B. OSPF and IS-IS are distance vector protocols.
  C. Routing tables are exchanged between neighbors; however, no routing table is transmitted beyond the immediate neighbor.
  D. Distance vector protocols use the Dijkstra SPF algorithm.
  E. Routers that participate in distance vector routing protocols maintain full knowledge of distant routers and how they interconnect
  A. RIPv1, RIPv2, and BGP are distance vector protocols.
  C. Routing tables are exchanged between neighbors; however, no routing table is transmitted beyond the immediate neighbor.

• Question 162:

  How many bits of the MPLS header are used for the label field?

  A. 16
  B. 20
  C. 24
  D. 25
  E. 32
  B. 20

• Question 163:

  Which of the following items can NOT be used as a mirror source?

  A. A physical port.
  B. ASAP.
  C. Ingress MPLS frames with a specific label.
  D. Entries that match an IP filter.
  E. Entries that match a MAC filter.
  F. All of the above can be used as a mirror source.
  F. All of the above can be used as a mirror source.

• Question 164:

  Which of the following about T-LDP is FALSE?

  A. Link-based and T-LDP sessions may be configured on the same LSR.
  B. T-LDP supports sessions between non-directly connected devices.
  C. T-LDP can be configured between directly connected devices.
  D. T-LDP Hello messages are sent to a multicast address.
  D. T-LDP Hello messages are sent to a multicast address.

• Question 165:

  Which of the following about Link TLVs found inside Type 10 Opaque LSAs is FALSE?

  A. Link TLVs are used to advertise administrative group information.
  B. Link TLVs are exchanged once RSVP is enabled on the interfaces.
  C. Link TLVs are used to advertise router-IDs.
  D. Link TLVs are used to advertise bandwidth information.
  C. Link TLVs are used to advertise router-IDs.

• Question 166:

  What are some of the characteristics of Alcatel-Lucent's implementation of non-stop routing? (Choose two)

  A. No protocol extensions required
  B. Only supported by OSPF and IS-IS
  C. Transparent to routing neighbors
  D. Uses Graceful Restart to inter-operate with other vendors
  A. No protocol extensions required
  C. Transparent to routing neighbors

• Question 167:

  Which of the following about ADSPEC is FALSE?

  A. ADSPEC sets an SDP's MTU to the smallest MTU value found along the LSP path.
  B. RSVP must be enabled on all MPLS routers of a path to use ADSPEC.
  C. ADSPEC can automatically adjust the service MTU.
  D. ADSPEC can be enabled on individual LSPs.
  C. ADSPEC can automatically adjust the service MTU.

• Question 168:

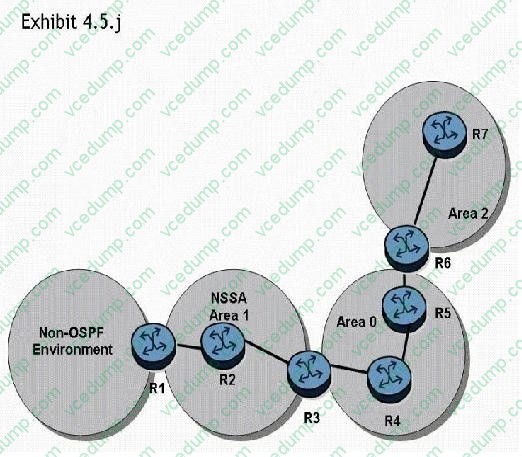

  Click the exhibit button.



  In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Which of the following statements regarding the OSPF LSAs in the network is true?

  A. Router R1 generates a type 5 LSA that is flooded through all OSPF areas.
  B. Router R1 generates a type 7 LSA that is flooded through all OSPF areas.
  C. Router R1 generates a type 5 LSA that is flooded through area 1. Router R2 generates a type 7 LSA that is flooded through areas 0 and 2.
  D. Router R1 generates a type 7 LSA that is flooded through area 1. Router R3 generates a type 5 LSA that is flooded through areas 0 and 2.
  D. Router R1 generates a type 7 LSA that is flooded through area 1. Router R3 generates a type 5 LSA that is flooded through areas 0 and 2.

• Question 169:

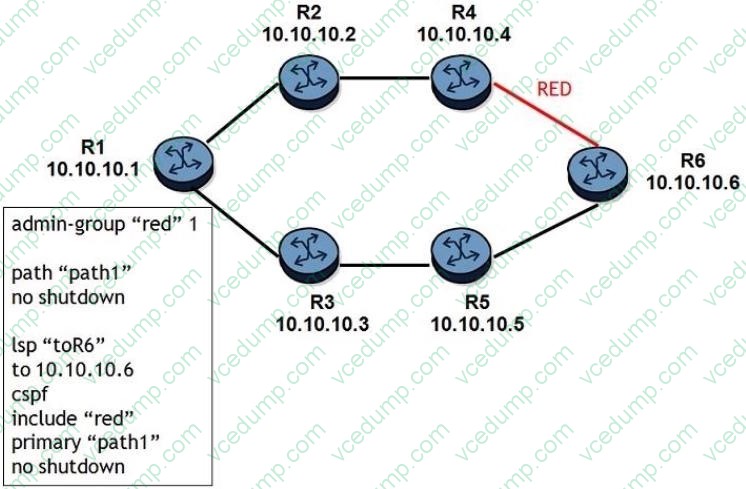

  Click on the exhibit.



  The link between routers R4 and R6 are configured with an admin group "red". What happens when the LSP is first signaled?

  A. The LSP will go through the path R1-R2-R4-R6.
  B. The LSP will go through the path R1-R3-R5-R6.
  C. The LSP is down because router R1 detects that no path can meet its constraints.
  D. The LSP is down because router R4 detects that no path can meet its constraints.
  C. The LSP is down because router R1 detects that no path can meet its constraints.

• Question 170:

  If OSPF is used in a multi-area OSPF network, which of the following statements regarding route summarization is true?

  A. Manual route summarization can only be done on autonomous system border routers.
  B. Manual route summarization must be done on all the backbone routers to be effective. Manual route summarization is optional on the routers in non-backbone areas.
  C. Manual route summarization is done on the ABRs. By default, automatic summarization is done; however, it may not be optimal for all networks.
  D. Manual route summarization is done on the ABRs. By default, no route summarization is done and all routes are advertised to all areas.
  D. Manual route summarization is done on the ABRs. By default, no route summarization is done and all routes are advertised to all areas.
