Cisco 400-201 Online Practice Questions and Exam Preparation

Cisco 400-201 Online Questions & Answers

• Question 881:

  Which two statements about spanning tree path cost are true? (Choose two.)

  A. The path cost can be changed for an interface using the spanning-tree cost command.
  B. The path cost can be changed for an interface using the stp path-cost command.
  C. The STP default path cost depends on the interface speed.
  D. The STP default path cost is similar for all interface.
  A. The path cost can be changed for an interface using the spanning-tree cost command.
  C. The STP default path cost depends on the interface speed.

• Question 882:

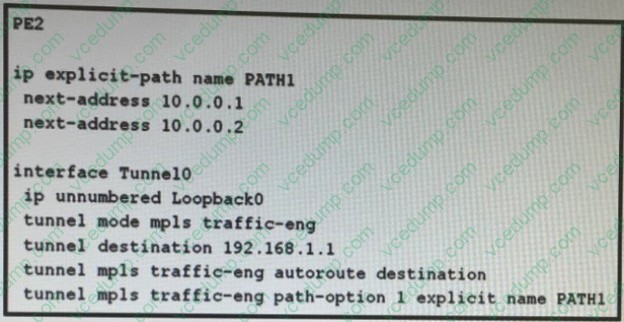

  Refer to the exhibit. A service provider is running MPLS TE across its network. IS-IS is deployed as the IGP for the ISP network. The MPLS TE tunnel 0 configured on PE2 is seen in an operational down state. PE2 is a level-1 router and the destination 192.168.1.1 is located in the IS-IS level-2 area. Which action is required to bring the MPLS TE tunnel 0 to up state?

  A. Configure the next-address entries as loose paths in the explicit-path.
  B. Change the autoroute option from destination to announce.
  C. Configure a bandwidth value for the tunnel.
  D. Configure an IPv4 address for the Tunnel 0.
  E. Add a dynamic path option to the tunnel.
  A. Configure the next-address entries as loose paths in the explicit-path.

• Question 883:

  An engineer is configuring an Embedded Packet Capture. Which two limitations must the engineer be aware of? (Choose two)

  A. EPC captures only multicast packets on ingress and does not capture the replicated packets on egress
  B. Existing EPC features can be supported on Cisco IOS and not on Cisco IOS-XR devices
  C. On Cisco IOS and Cisco IOS XE, the packet buffer is stored in DRAM and persists through reloads
  D. On Cisco IOS and Cisco IOS XE, the capture configuration is not stored in NVRAM and does not persist through reloads
  E. To limit the capture to desired traffic in EPC, control plane policing, access lists, and NBAR can be used
  A. EPC captures only multicast packets on ingress and does not capture the replicated packets on egress
  D. On Cisco IOS and Cisco IOS XE, the capture configuration is not stored in NVRAM and does not persist through reloads

• Question 884:

  Which two IOS commands are equivalents for putting a Cisco 7500 OC-12 RPR interface card into wrapped mode? Select all that apply A. shutdown [a | b]

  B. srp shutdown [a | b]
  C. srp ips request manual-switched [a | b]
  B. srp shutdown [a | b]
  C. srp ips request manual-switched [a | b]

• Question 885:

  An ISP provides MPLS L3VPN services and is required to set up a multicast VPN. Which routers will be enabled with MDT to support a multicast VPN?

  A. All service provider routers participating in the multicast VPN.
  B. All service provider route reflectors.
  C. All service provider PE routers.
  D. All service provider P routers.
  E. All service providers P, PE and route reflector routers.
  A. All service provider routers participating in the multicast VPN.

• Question 886:

  Which two steps take place in the BGP Link State architecture ? (Choose two)

  A. IGP is redistributed into BGP-LS
  B. Advertise the BGP-LS NLRIs to the topology server
  C. IGP uses BGP LS data from remote peers
  D. Enable access to the Adj-RIB-In (BGP raw format )of a peer border router or provider edge router
  E. BGP downloads the received BGP LS data to the IGP component on the router
  B. Advertise the BGP-LS NLRIs to the topology server
  C. IGP uses BGP LS data from remote peers

• Question 887:

  A customer is connected to a service provider by a low-speed link and wants to increase the bandwidth of this connectivity without creating additional IP addresses. Multiple physical links with the same bandwidth value are already available between the customer and the service provider. Which technology can be used to achieve these requirements?

  A. HDLC
  B. PPTP
  C. Multilink PPP
  D. Frame Relay
  C. Multilink PPP

• Question 888:

  Which two options best describe the purpose of session ID and cookie field in a L2TPv3 packet?

  A. The session ID is a 32-bit locally significant field used to identify the call on the destination or egress tunnel endport. The session ID will be negotiated by the control connection or statically defined if using the L2TP v3 data plane only.
  B. The cookie is a variable length (with a maximum of eight bytes),word-aligned optional field. The control connection can negotiate this as an additional level of guarantee beyond the regular session ID lookup to make sure that a data message has been directed to the correct session or that any recently reused session ID will not be misdirected.
  C. The cookie is a 32-bit locally significant field used to identify the call on the destination or egress tunnel endpoint. The cookie will be negotiated by the control connection or statically defined if using the L2TPv3 data plane only
  D. The session ID is a variable length (with a maximum of eight bytes), word-aligned optional field. The control connection can negotiate this as an additional level of guarantee beyond the regular cookie lookup to make sure that a data message has been directed to the correct session or that any recently reused cookie will not be misdirected.
  A. The session ID is a 32-bit locally significant field used to identify the call on the destination or egress tunnel endport. The session ID will be negotiated by the control connection or statically defined if using the L2TP v3 data plane only.
  B. The cookie is a variable length (with a maximum of eight bytes),word-aligned optional field. The control connection can negotiate this as an additional level of guarantee beyond the regular session ID lookup to make sure that a data message has been directed to the correct session or that any recently reused session ID will not be misdirected.

• Question 889:

  A company is given a 20 Mbps bandwidth guarantee provided over a FastEthernet connection by an ISP. Which QoS technology should be used to ensure that traffic conforms to the 20 Mbps contract?

  A. shaping
  B. LFI
  C. CIR
  D. burst protection
  A. shaping

• Question 890:

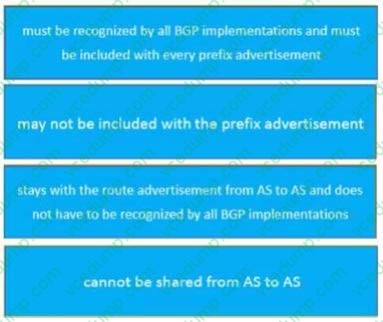

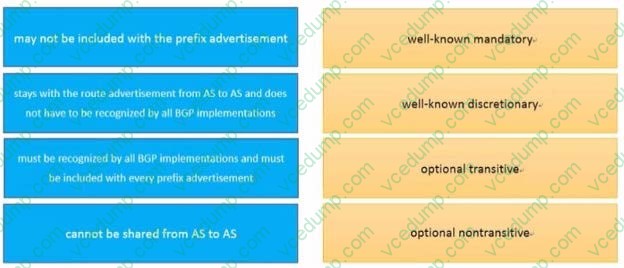

  Drag and drop the BGP path attributes description on the left onto the correct BGP path attribute classification on the right

  Select and Place:





  ---
