Cisco 400-201 Online Questions & Answers

• Question 801:

  A client has an MPLS inter-AS implementation that is required to have QoS deployed between ASBRs based on IP packet. At the same time, the client requires minimization of the routing configuration between ASBRs for better scalability. Which MPLS inter-AS option can achieve this goal?

  A. Option A
  B. Option B
  C. Option C
  D. Option AB
  D. Option AB

• Question 802:

  Which three of these can be a forwarding equivalence class? (Choose three)

  A. IPSec tunnel
  B. routing equivalence paths
  C. traffic engineering tunnel
  D. bridge or switch instance
  E. groups of IP addresses
  C. traffic engineering tunnel
  D. bridge or switch instance
  E. groups of IP addresses

• Question 803:

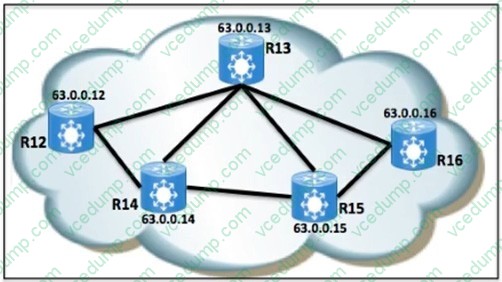

  Refer to the exhibit. R12 is configured with an MPLS TE tunnel with the 63.0.0.16 as the destination. The path taken must follow this order of the attempt criteria:

  1.

  First preferred path: must not pass through R13 to reach R16.

  2.

  Second preferred path: must go through R14 -- R15 -- R16.

  3.

  Last preferred path: based on IGP path information.

  Which Cisco IOS XR configuration implementation meets this requirement?

  A. explicit-path name PATH1 index 10 exclude-address ipv4 unicast 63.0.0.13 ! explicit-path name R14R15R16 index 10 next-address ipv4 strict unicast 63.0.0.14 index 20 next-address ipv4 strict unicast 63.0.0.15 index 30 next-address ipv4 strict unicast 63.0.0.16 ! interface tunnel-te1 path-option 1 explicit name NO-R13 path-option 5 explicit name R14R15R16 path-option 10 dynamic
  B. explicit-path name NO-R13 index 10 next-address ipv4 strict unicast 63.0.0.13 ! explicit-path name R14R15R16 index 10 exclude-address ipv4 unicast 63.0.0.14 index 20 exclude-address ipv4 unicast 63.0.0.15 index 30 exclude-address ipv4 unicast 63.0.0.16 ! interface tunnel-te1 path-option 1 dynamic path-option 5 explicit name R14R15R16 path-option 10 explicit name NO-R13
  C. explicit-path name NO-R13 index 10 exclude-address ipv4 unicast 63.0.0.13 ! explicit-path name R14R15R16 index 10 next-address ipv4 loose unicast 63.0.0.14 index 20 next-address ipv4 loose unicast 63.0.0.15 index 30 next-address ipv4 loose unicast 63.0.0.16 ! interface tunnel-te1 path-option 1 explicit name NO-R13 path-option 2 explicit name R14R15R16 path-option 3 dynamic
  D. explicit-path name NO-R13 index 10 next-address ipv4 loose unicast 63.0.0.13 ! explicit-path name R14R15R16 index 10 exclude-address ipv4 unicast 63.0.0.14 index 20 exclude-address ipv4 unicast 63.0.0.15 index 30 exclude-address ipv4 unicast 63.0.0.16 ! interface tunnel-te1 path-option 1 dynamic path-option 2 explicit name R14R15R16 path-option 3 explicit name NO-R13
  C. explicit-path name NO-R13 index 10 exclude-address ipv4 unicast 63.0.0.13 ! explicit-path name R14R15R16 index 10 next-address ipv4 loose unicast 63.0.0.14 index 20 next-address ipv4 loose unicast 63.0.0.15 index 30 next-address ipv4 loose unicast 63.0.0.16 ! interface tunnel-te1 path-option 1 explicit name NO-R13 path-option 2 explicit name R14R15R16 path-option 3 dynamic

• Question 804:

  In an Internet scenario with noncongruent unicast and multicast topologies, which protocol a scalable policy for performing multicast RPF checks?

  A. MADCAP
  B. MSDP
  C. MBGP
  D. PGM
  C. MBGP

• Question 805:

  Which two routers support cable access? (Choose two.)

  A. ME3000
  B. uBR10000
  C. ASR9000
  D. CRS-1
  E. ME3600
  F. uBR7200
  B. uBR10000
  F. uBR7200

• Question 806:

  An engineer is designing a SONET network using Cisco 7600 and the ONS 15454 platform. Which Cisco 7600 module allows for three 45 Mbps serial interfaces?

  A. OC-12c/STM-4c ATM
  B. OC-12/STM4 to DS3/E3
  C. OC-3c/STM-1 POS/SDH
  D. OC-12c/STM-4 POS/SDH
  B. OC-12/STM4 to DS3/E3

• Question 807:

  Which two implementations are standard Virtual Private LAN Service (VPLS) implementations that are supported by the IETF? (Choose two)

  A. VPLS uses LDP for signaling.
  B. VPLS uses BGP for autodiscovery and signaling.
  C. VPLS uses extended IS-IS for signaling
  D. VPLS uses OSPF version 3 for auto discovery and signaling
  E. VPLS uses spanning tree for signaling
  A. VPLS uses LDP for signaling.
  B. VPLS uses BGP for autodiscovery and signaling.

• Question 808:

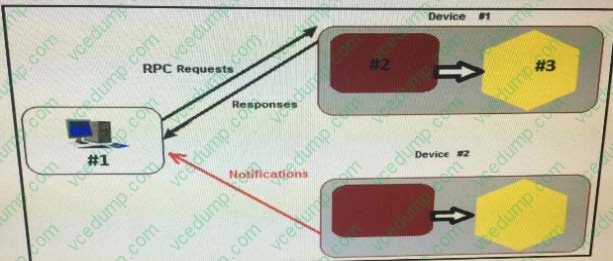

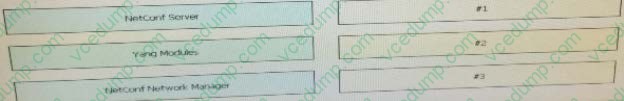

  Drag and drop the NetConf architecture components from the left on to the correct network functionality on the right



  Select and Place:





• Question 809:

  Which multicast feature listens multicast conversations maintaining a map in order to control which ports receive specific multicast traffic?

  A. Bidirectional PIM
  B. Source Specific Multicast
  C. PIM assertion
  D. IGMP snooping
  D. IGMP snooping

• Question 810:

  OSPF is used as PE-CE protocol. An operations engineer is concerned about CPU and memory shortage on PE routers caused by an OSPF misconfiguration on the CE routers. Which OSPF feature protects the PE routers against this shortage?

  A. OSPF Link-State Database Overload Protection
  B. OSPF ABR type 3 LSA Filtering
  C. OSPF Update Packet-Pacing Timers
  D. OSPF Flooding Reduction
  A. OSPF Link-State Database Overload Protection
