Cisco 400-201 Online Practice Questions and Exam Preparation

Cisco 400-201 Online Questions & Answers

• Question 761:

  On Cisco IOS devices, which IS-IS feature reduces the convergence time for prefixes designated as high priority?

  A. iSPF
  B. advertise passive only
  C. prefix prioritization
  D. Fast-Forwarding
  C. prefix prioritization

• Question 762:

  Which E3 alarm indicates that there could be an issue with the transmit signal with the local equipment?

  A. rxLoS
  B. rxLoF
  C. rxRAI
  D. txRAI
  E. txLoF
  F. txLoS
  C. rxRAI

• Question 763:

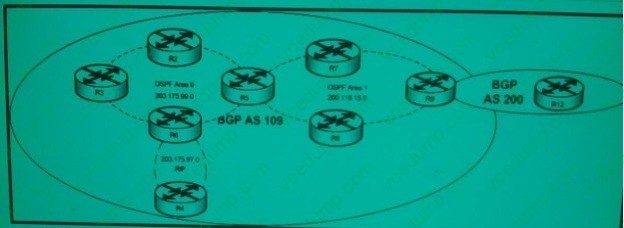

  Refer to the exhibit. Which command can be issued on R9 so that R12 receives all its internal and external OSPF routes inside the R12 BGP table?

  A. redistribute ospf 1 internal external 1 external 2
  B. redistribute ospf 1 match nssa-external 1 nssa-external 2
  C. redistribute ospf 1 internal nssa-external 1 nssa-external 2
  D. redistribute ospf 1 match internal external 1 external 2
  D. redistribute ospf 1 match internal external 1 external 2

• Question 764:

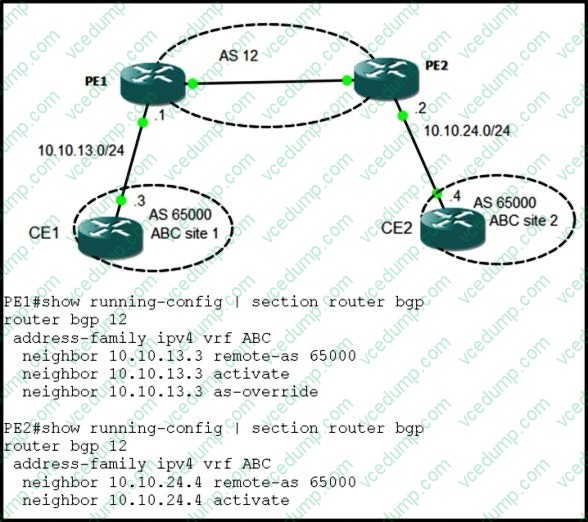

  Refer to the exhibit.



  An MPLS VPN service has been provisioned for an ABC customer. Based on the output from the VRF BGP configuration of PE1 and PE2, which statement describes the route exchange between ABC site 1 and site 2?

  A. Only CE1 will be able to install CE2 BGP updates in its BGP table.
  B. Only CE2 will be able to install CE1 BGP updates in its BGP table.
  C. CE1 can install the CE2 subnets in its BGP table and CE2 can install the CE1 subnets its BGP table.
  D. CE1 cannot install the CE2 subnets in its BGP table and CE2 cannot install the CE1 subnets its BGP table.
  E. "as-override" feature cannot be used in this scenario.
  A. Only CE1 will be able to install CE2 BGP updates in its BGP table.

• Question 765:

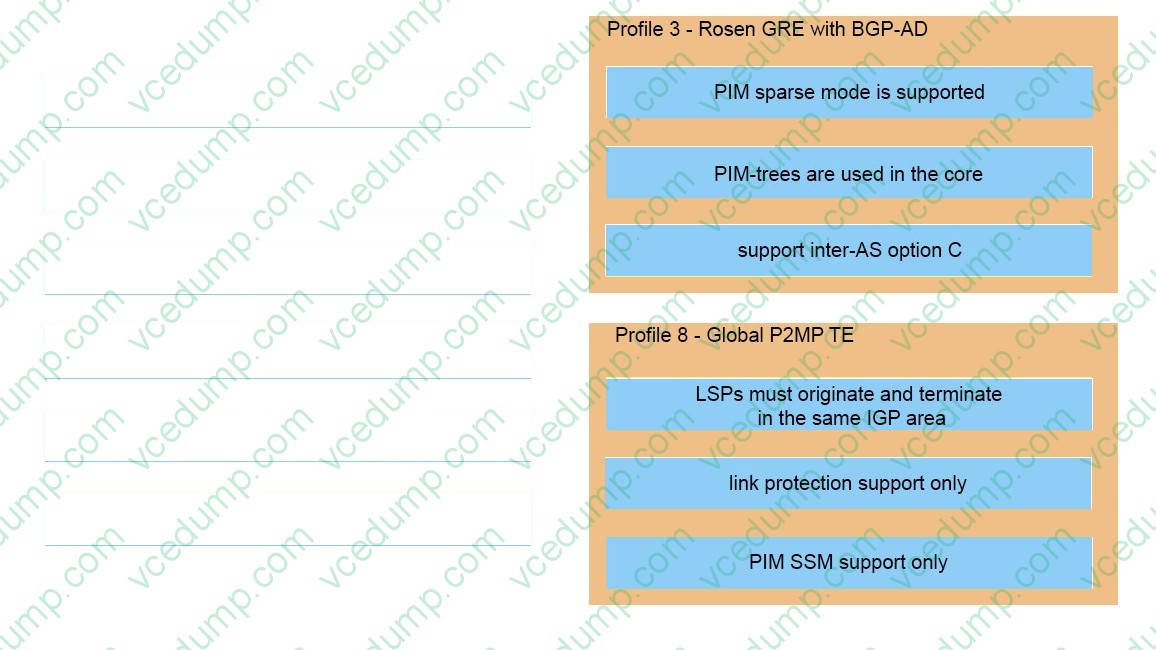

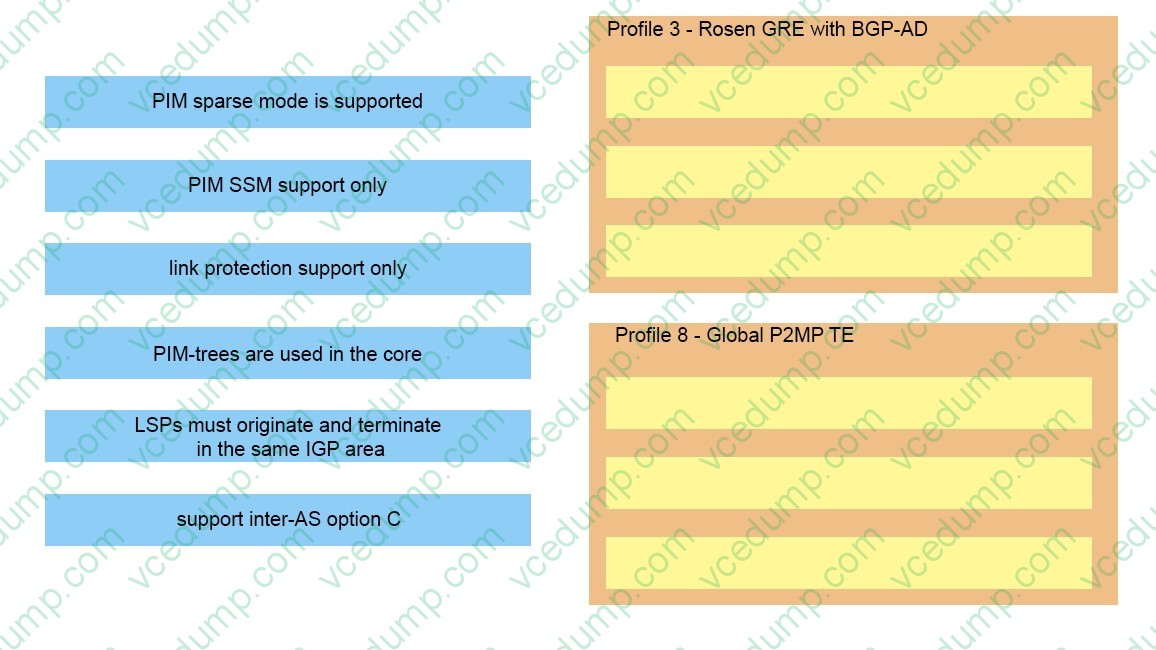

  Drag and drop the characteristics of the MVPN on the left onto the correct MVPN profile on the right.

  Select and Place:





• Question 766:

  ABC-BANK uses OSPF as the PE-CE routing protocol for the Layer 3 VPN services. A service provider engineer has a requirement to add a new branch for ABC-BANK to an existing PE, however, using EIGRP as the PE-CE routing protocol. Which Cisco IOS XR configuration template must the engineer deploy on PE router to activate this new connection?

  A. interface GigabitEthernet 0/1/0/1 vrf ABC-BANK ipv4 address 10.10.152.1 255.255.255.0 ! router ospf 24356 vfr ABC-BANK address-family ipv4 unicast redistribute eigrp 24356 ! router eigrp 24356 vrf ABC-BANK address-family ipv4 router-id 10.10.152.1 default-metric 10000 2000 255 1 1500 autonomous-system 24356 redistribute ospf 24356 interface GigabitEthernet 0/1/0/1
  B. vrf ABC-BANK interface GigabitEthernet 0/1/0/1 ipv4 address 10.10.152.1 255.255.255.0 ! router bgp 100 address-family ipv4 unicast redistribute eigrp 24356 ! router eigrp 24356 address-family ipv4 router-id 10.10.152.1 default-metric 10000 2000 255 1 1500 redistribute bgp 100 interface GigabitEthernet 0/1/0/1
  C. interface GigabitEthernet 0/1/0/1 vrf ABC-BANK ipv4 address 10.10.152.1 255.255.255.0 ! router bgp 100 vrf ABC-BANK address-family ipv4 unicast redistribute eigrp 24356 ! router eigrp 24356 vrf ABC-BANK address-family ipv4 router-id 10.10.152.1 default-metric 10000 2000 255 1 1500 autonomous-system 24356 redistribute bgp 100 interface GigabitEthernet 0/1/0/1
  D. vrf ABC-BANK interface GigabitEthernet 0/1/0/1 ipv4 address 10.10.152.1 255.255.255.0 ! router ospf 24356 address-family ipv4 unicast redistribute eigrp 24356 ! router eigrp 24356 address-family ipv4 unicast router-id 10.10.152.1 default metric 10000 2000 255 1 1500 redistribute ospf 24356 interface GigabitEthernet 0/1/0/1
  D. vrf ABC-BANK interface GigabitEthernet 0/1/0/1 ipv4 address 10.10.152.1 255.255.255.0 ! router ospf 24356 address-family ipv4 unicast redistribute eigrp 24356 ! router eigrp 24356 address-family ipv4 unicast router-id 10.10.152.1 default metric 10000 2000 255 1 1500 redistribute ospf 24356 interface GigabitEthernet 0/1/0/1

• Question 767:

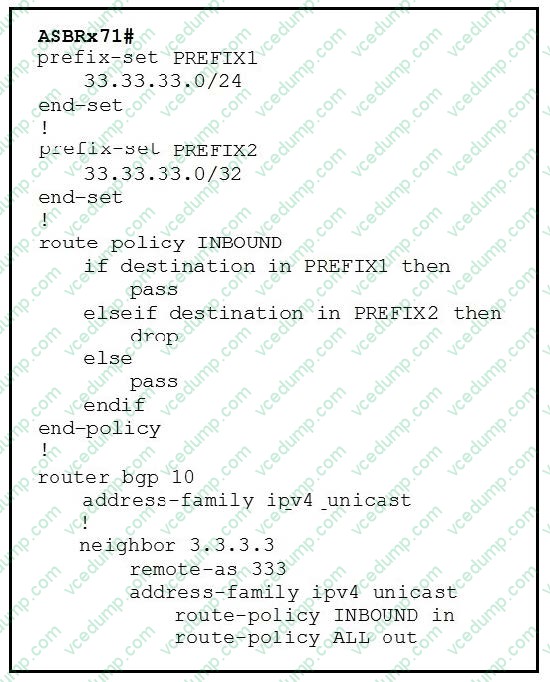

  Refer to the exhibit.



  Which action does the ASBRx71 take when it receives packets that are destined for 33.33.33.33?

  A. That traffic is permitted by the first if statement.
  B. That traffic is dropped by the explicit drop action.
  C. That traffic is permitted by the else statement.
  D. That traffic is dropped by the elseif statement.
  C. That traffic is permitted by the else statement.

• Question 768:

  Which statement about IPv6 PIM-SM is true?

  A. IGMP is used by the IPv6 hosts to report their multicast group memberships to the routers attached in the same segment.
  B. The list of a (*, G) entry includes all the interfaces elected as DF and that have received either an IGMP or PIM join message.
  C. Routers use the MLD protocol to learn whether members of a group are present on their directly attached interfaces.
  D. The source-based trees do not exist; instead, RP builds a shared tree used by source to forward the multicast traffic.
  C. Routers use the MLD protocol to learn whether members of a group are present on their directly attached interfaces.

• Question 769:

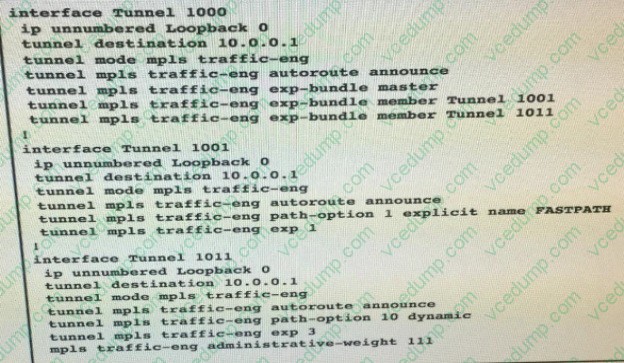

  Refer to the exhibit. Which technology is being implemented?

  A. CBTS
  B. DS-TE
  C. IP FRR
  D. PBTS
  A. CBTS

• Question 770:

  Which three IP/MPLS feature have been removed form MPLS-TP? (Choose three)

  A. Global and local label
  B. Dual-direction LSP
  C. LSP merging
  D. ECMP
  E. QoS mapping
  F. Protection
  G. PHP
  C. LSP merging
  D. ECMP
  G. PHP
