Cisco 400-201 Online Practice Questions and Exam Preparation

Cisco 400-201 Online Questions & Answers

• Question 711:

  Which BGP feature enables data plane fast convergences?

  A. BGP add-path
  B. BGP Prefix-Independent Convergence
  C. BGP Best External
  D. BGP IP Fast Reroute
  E. BGP Path-Independent Convergence
  B. BGP Prefix-Independent Convergence

• Question 712:

  Which two statements about 6RD are true? (Choose two.)

  A. The 6RD customer edge device forwards all packets to the 6RD border relay.
  B. The 6RD customer edge device can forward packets destined to other 6RD customer edge devices outside the local 6RD domain without traversing the 6RD border relay.
  C. Packets between 6RD customer edge devices in the same 6RD domain do not need to traverse the 6RD border relay.
  D. Packets received from a 6RD domain can easily be identified as such on the IPv6 Internet.
  E. The entry point into the local 6RD domain is deterministic.
  C. Packets between 6RD customer edge devices in the same 6RD domain do not need to traverse the 6RD border relay.
  E. The entry point into the local 6RD domain is deterministic.

• Question 713:

  Which statement describes a restriction of inter-AS MPLS VPN?

  A. Allows a VPN to cross more than one service provider backbone.
  B. Inter-AS functionality is available using both VPNv4 and VPNv6.
  C. Inter-AS functionality is available using VPNv4 only.
  D. Inter-AS functionality is available using VPNv6 only.
  C. Inter-AS functionality is available using VPNv4 only.

• Question 714:

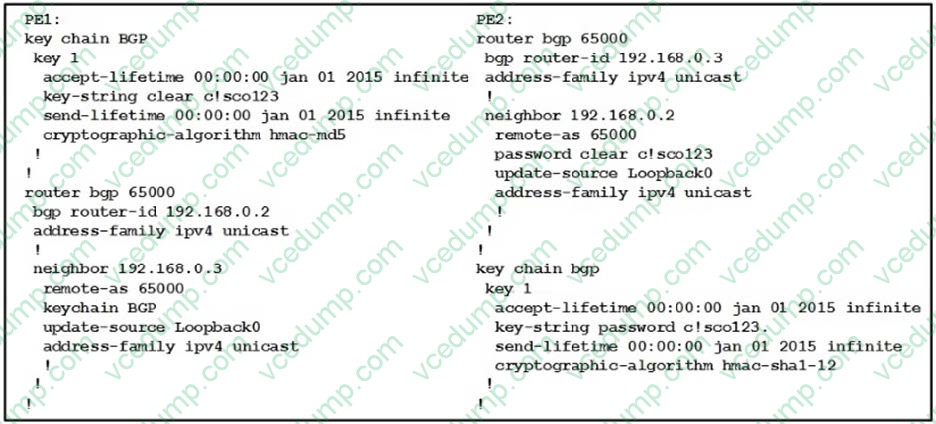

  Refer to the exhibit. After a planned configuration change, the iBGP session between two PE routers is failing. Which reason for the BGP session failure is true?

  A. Routers are using different cryptographic algorithms to compute the key.
  B. The configured encryption schemes used on the routers are invalid.
  C. Different passwords are used between PE1 and PE2.
  D. Nonmatching authentication key-strings are used on PE1 and PE2.
  E. Incompatible TCP authentication methods are used on PE1 and PE2.
  E. Incompatible TCP authentication methods are used on PE1 and PE2.

• Question 715:

  Which technology enables operations to move the functionality of networking devices such as routers and firewalls away from proprietary hardware to servers and off-the-shelf commercially available purpose-built hardware?

  A. Network Function Virtualization
  B. Business support systems
  C. Software Defined Networking
  D. Operations support systems
  E. OpenStack
  A. Network Function Virtualization

• Question 716:

  Which three common use cases for customers using multiple cloud providers are true? (Choose three.)

  A. bandwidth B. high availability
  C. feature disparity
  D. security
  E. analytics
  F. regional cloud provider access
  C. feature disparity
  F. regional cloud provider access

• Question 717:

  OSPF is enabled on PE-to-CE links. To ensure that OSPF routes from CE routers are seen as OSPF interarea routes access the backbone, which type of configuration should be deployed on the PE routers?

  A. the same domain ID value on both PE routers
  B. down bit set for all LSA interarea
  C. the same Site of Origin value on both PE routers
  D. a sham link between PE routers
  A. the same domain ID value on both PE routers

• Question 718:

  In Multicast VPN (MVPN) implementations, which two of the following statements are regarding the Default MDT Group? (Choose two).

  A. It is used for PIM control traffic.
  B. It is optionally configured for a high bandwidth multicast source to reduce multicast traffic replication to uninterested PE routers.
  C. Within the VRF configuration in the PE router, multiple Default MDT groups are configured so each VRF can support multiple multicast sources.
  D. There is a reduced multicast state in the MPLS core P routers.
  E. When multicast traffic exceeds a certain configured threshold, traffic from the Data MDT is switched to the Default MDT to conserve bandwidth.
  A. It is used for PIM control traffic.
  D. There is a reduced multicast state in the MPLS core P routers.

• Question 719:

  Which description of SaaS is true?

  A. a service offering a software environment in which applications can be build and deployed
  B. a service offering on-demand software downloads
  C. a service offering that allowing developers to build their own applications
  D. a service offering on-demand licensed applications for end users
  D. a service offering on-demand licensed applications for end users

• Question 720:



  Refer to the exhibit. IPTV video clients are connected to R6. Unicast and multicast traffic flows from R1 to R6. The OSPF cost of the R1-R2-R3-R6 path is lower than the R1-R5-R4-R3-R6 path. To enable load sharing and fast reroute, the design team decided to implement MPLS TE tunnels between R1 and R3. After the MPLS TE tunnels are deployed, the multicast traffic stops working.

  While troubleshooting the issue, the operations engineer noticed that the OSPF route to the multicast source is learned via the MPLS TE tunnel, which causes the RPF check to fail. Which two solutions can prevent the multicast traffic from being affected by the RPF check failure due to the MPLS TE tunnel deployment? (Choose two.)

  A. Enable the multitopology routing feature
  B. Enable the multicast-intact feature.
  C. Enable PIM on the MPLS TE tunnel towards the receiver.
  D. Create a static mroute on R3 with the RPF pointing to the MPLS TE tunnel.
  E. Enable the forwarding adjacency feature instead of autoroute announce feature.
  B. Enable the multicast-intact feature.
  D. Create a static mroute on R3 with the RPF pointing to the MPLS TE tunnel.
