Cisco 400-201 Online Practice Questions and Exam Preparation

Cisco 400-201 Online Questions & Answers

• Question 51:

  An engineer is troubleshooting Precision Time Protocol on Cisco ASR 9000 router and noticed the protocol is running in a Multicast mode. Which two results regarding the messages can the engineer expect? (Choose two)

  A. All messages for PTP will be sent as multicast messages
  B. PTP messages that use unicast messages and those that use multicast messages must be specified
  C. Announce and Sync messages are sent as multicast messages
  D. Signaling, Delay-Request, and Delay-Response messages are sent as unicast messages
  E. Signaling, Delay-Request, and Delay-Response messages are sent as multicast messages
  C. Announce and Sync messages are sent as multicast messages
  D. Signaling, Delay-Request, and Delay-Response messages are sent as unicast messages

• Question 52:

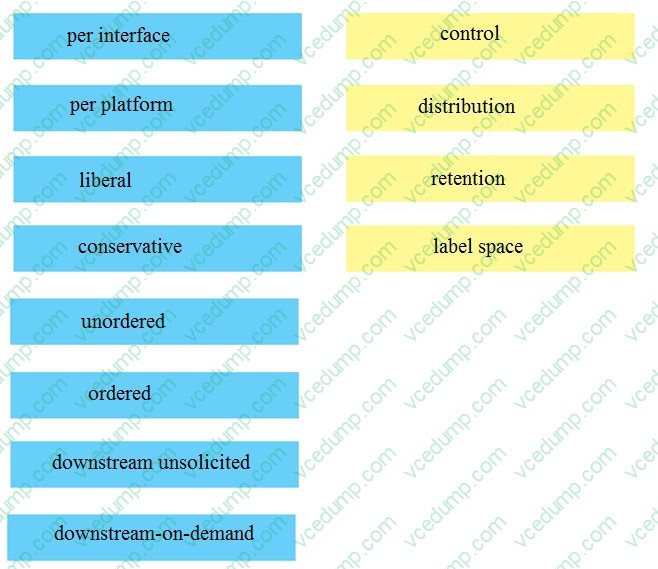

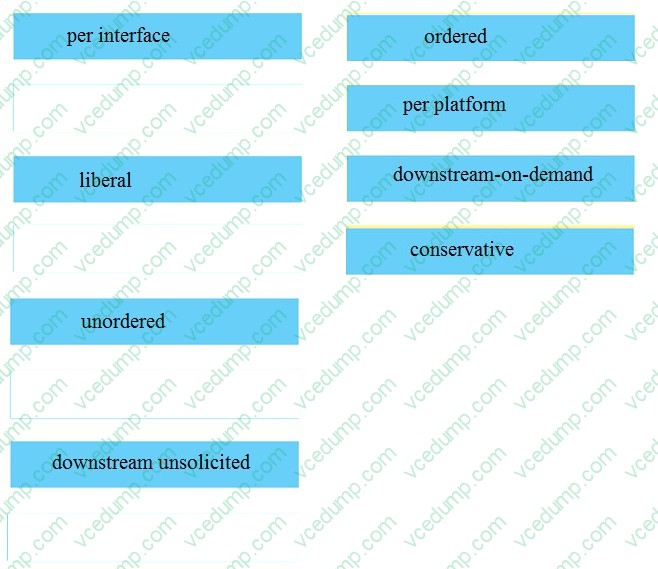

  Based on the terminology that was introduced in RFC 3031, drag and drop the mode of generating and distributing labels that is used by RSVP-TE on the correct label distribution method on the right

  Select and Place:





• Question 53:

  Two customers have routers that run OSPF and belong to the same OSPF area. These two routers are connected by an MPLS backbone and by a low-bandwidth point-to-point link (used as a backup link). Which two minimum configurations are required to connect these two routers? (Choose two.)

  A. site-of-origin
  B. sham-link
  C. domain tag
  D. down bit
  E. link cost
  F. virtual-link
  B. sham-link
  E. link cost

• Question 54:

  A network engineer is using IS-IS IGP protocol to design a network.

  Which three design elements should be used to divide the network into a hierarchy of areas? (Choose three.)

  A. Core routers will be only level-2.
  B. Routers on the edge of the network will be only level-1.
  C. Router between core and edge routers will be level-1-2.
  D. Core routers will be only level-1.
  E. Routers on the edge of the network will be only level-2.
  F. Router between core and edge routers will be only level-2.
  G. Router between core and edge routers will be only level-1.
  A. Core routers will be only level-2.
  B. Routers on the edge of the network will be only level-1.
  C. Router between core and edge routers will be level-1-2.

• Question 55:

  Which three parameters should be checked when you are troubleshooting DWDM technology? (Choose three.)

  A. out-of-multiframe
  B. signal-to-noise-ratio
  C. loss of pointer
  D. crosstalk
  E. channel power
  F. wavelength
  A. out-of-multiframe
  C. loss of pointer
  F. wavelength

• Question 56:

  When should traffic shaping be implemented on Frame Relay PVCs? (Choose two)

  A. When you want to drop excess traffic above the CIR
  B. When there is a speed mismatch between the central site and the remote site.
  C. When using Frame Relay SVCs
  D. When over-subscribing the central site link
  E. When LLQ is implemented on the Frame Relay PVC.
  F. When Multilink PPP LFI is implemented on the Frame Relay PVC.
  B. When there is a speed mismatch between the central site and the remote site.
  D. When over-subscribing the central site link

• Question 57:

  A router is able to assign labels to the prefixes and MPLS is enabled on all of the router interfaces. However, this router is unable to establish an LDP session with its LDP neighbors. What could be the cause of this problem?

  A. ip cef is not enabled.
  B. mpls ip is missing in the global configuration mode.
  C. The LDP router ID is unreachable.
  D. LIB has no label.
  C. The LDP router ID is unreachable.

• Question 58:

  In the MVPN profile 3 ( Rosen GRE with BGP-AS), which information is included inside of the opaque value?

  A. Type 2- Root Address: VPN-ID; 0-n
  B. Type 1-source-PE: Global-ID
  C. RD:S,G
  D. Not applicable for this profile
  D. Not applicable for this profile

• Question 59:

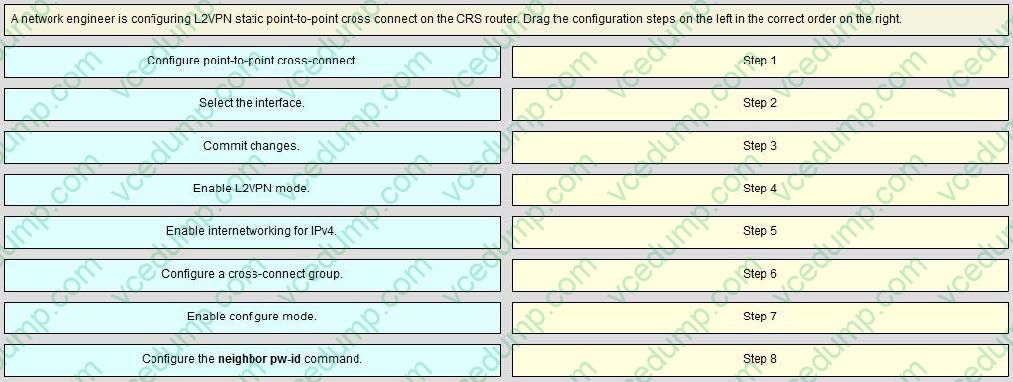

  A network engineer is configuring L2VPN static point-to-point cross connect on the CRS router. Drag the configuration steps on the left in the correct order on the right.

  Select and Place:





• Question 60:

  An operations engineer from AS 2000 must deploy this inbound routing policy.

  1.

  Based on RFC1998, modify the local-preference value for prefixes containing BGP community values 2000.90 and 2000:110

  2.

  Strip any BGP community of the BGP prefixes received from customers that are in the range between 2000:1 and 2000:2000. Any other BGP community values must not be removed

  3.

  Apply 2000:1003 BGP community value, which indicates that the BGP prefix is learned from a customer Which configuration accomplishes this BGP routing policy?

  A. route-policy CUSTOMER-COMMUNITIES if community matches-any (2000:90) then set local-preference 90 elseif community matches-any (2000:110) then set local-preference 110 endif if community matches-any (2000:[1..89], 2000:[91..109], 2000:[111..2000]) then delete community all endif set community (2000:1003) end-policy
  B. route-policy CUSTOMER-COMMUNITIES if community matches-any (2000:90) then set local-preference 90 elseif community matches-any (2000:110) then set local-preference 110 endif delete community in (2000:[1…2000]) set community (2000:1003) end-policy
  C. route-policy CUSTOMER-COMMUNITIES if community matches-any (2000:90) then set local-preference 90 elseif community matches-any (2000:110) then set local-preference 110 endif set community (2000:1003) additive delete community in (2000:[1..2000]) end-policy
  D. route-policy CUSTOMER-COMMUNITIES delete community in (2000:[1:2000]) if community matches-any (2000:90) then set local-preference 90 elseif community matches-any (2000:110) then set local-preference 110 endif set community (2000:1003) additive end-policy
  D. route-policy CUSTOMER-COMMUNITIES delete community in (2000:[1:2000]) if community matches-any (2000:90) then set local-preference 90 elseif community matches-any (2000:110) then set local-preference 110 endif set community (2000:1003) additive end-policy
