Cisco 400-201 Online Practice Questions and Exam Preparation

Cisco 400-201 Online Questions & Answers

• Question 441:

  Network Operations team has configured the routers with the logging buffered warnings command. Which three severity levels appear in the router syslog? (Choose three)

  A. Informational
  B. Alerts
  C. Notifications
  D. Emergencies
  E. Errors
  F. Debugging
  B. Alerts
  D. Emergencies
  E. Errors

• Question 442:

  For the Cisco ASR 1000 Series, which module provides the physical and electrical terminal for the shared port

  A. SPA
  B. RP
  C. ESP
  D. SIP
  A. SPA

• Question 443:

  Which three BGP features improve convergence? (Choose three.)

  A. route reflector
  B. BGP cost community
  C. BGP autodiscovery
  D. BGP soft reconfiguration
  E. Fast Peering Session Deactivation
  F. eBGP multihop
  G. BGP PIC
  H. next-hop address tracking
  E. Fast Peering Session Deactivation
  G. BGP PIC
  H. next-hop address tracking

• Question 444:

  Which option propagates SRLG membership information to the network?

  A. BGP attribute
  B. IGP extension
  C. RSVP extension
  D. LDP extension
  E. PIM extension
  B. IGP extension

• Question 445:

  Which Cisco IOS XR security component can protect the route processor of the Cisco CRS router?

  A. Receive ACL
  B. Interface ACL
  C. Local Packet Transport Services
  D. Control Plane Policing
  C. Local Packet Transport Services

• Question 446:

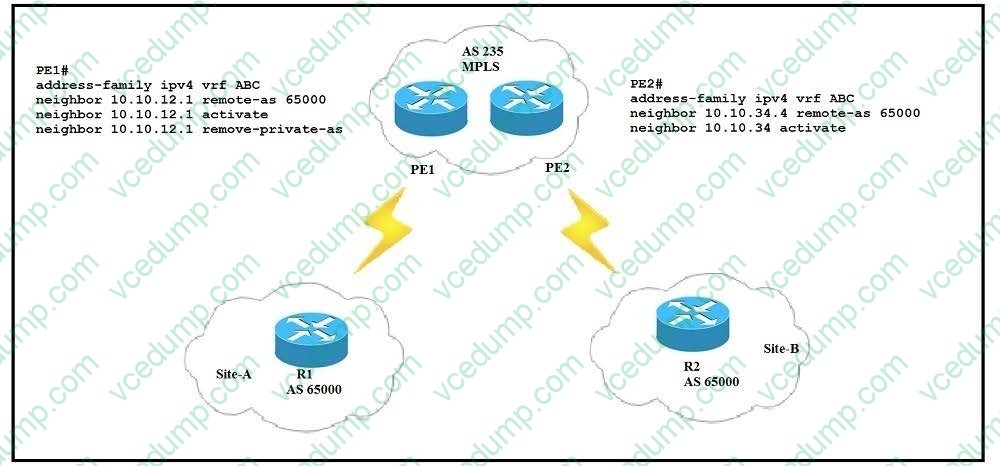

  Refer to the exhibit. An MPLS offers MPLS VPN service to a customer, who complains that they cannot connect from Site-A to Site-B. Which action fixes the issue?



  A. On PE1, add the command neighbor 10.10.12.1 as-override and on PE2, add the command neighbor 10.10.34.4 as-override
  B. On PE2, add the command neighbor 10.10.34.4 remove-private-as
  C. On PE1, add the command neighbor 10.10.12.1 allowas-in 2 and on PE2, add the command neighbor 10.10.34.4 allowas-in 2
  D. On PE1, remove the command neighbor 10.10.12.1 remove-private-as
  B. On PE2, add the command neighbor 10.10.34.4 remove-private-as

• Question 447:

  DRAG DROP

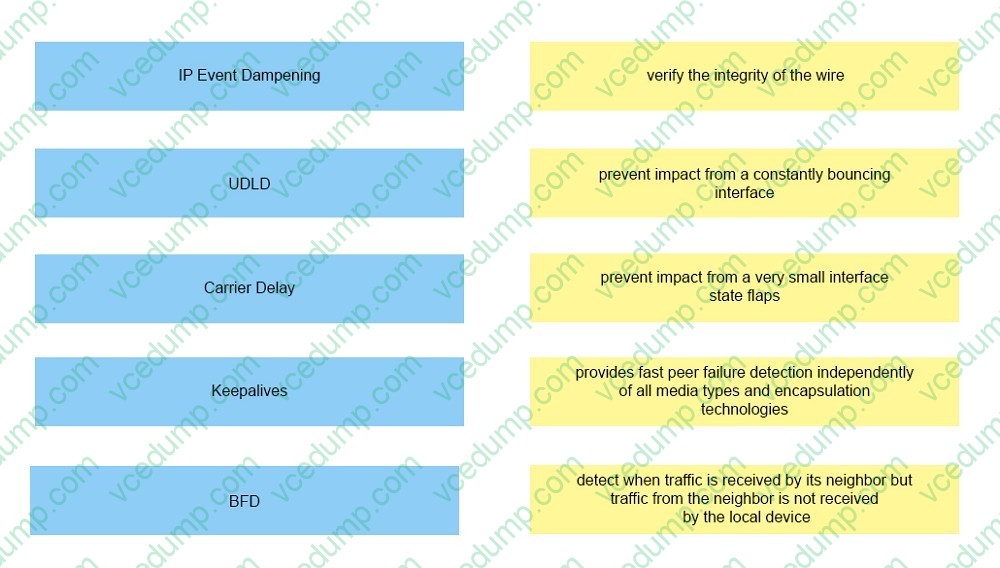

  Drag and drop each fast detection mechanism on the left to its definition on the right.

  Select and Place:





• Question 448:

  Which of the following statements regarding Control Plane Policing (CoPP) is correct? (Choose three.)

  A. Control Plane Policing (CoPP) addresses the need to protect the management planes, ensuring routing stability, availability, and critical packet delivery.
  B. Control Plane Policing (CoPP) leverages MQC to define traffic classification criteria and to specify configurable policy actions for the classified traffic.
  C. Control Plane Policing (CoPP) uses a dedicated "control-plane" command via the Modular QoS CLI (MQC) to provide filtering and rate limiting capabilities.
  D. Control Plane Policing (CoPP) uses "service policy" command under relevant interfaces to filter DOS packet to protect routing packets.
  E. Control Plane Policing (CoPP) protects the transit management and data traffic through the router.
  A. Control Plane Policing (CoPP) addresses the need to protect the management planes, ensuring routing stability, availability, and critical packet delivery.
  B. Control Plane Policing (CoPP) leverages MQC to define traffic classification criteria and to specify configurable policy actions for the classified traffic.
  C. Control Plane Policing (CoPP) uses a dedicated "control-plane" command via the Modular QoS CLI (MQC) to provide filtering and rate limiting capabilities.

• Question 449:

  Which two Cisco CRS hardware components are associated to a non-owner SDR system? (Choose two.)

  A. DRP
  B. line card
  C. switch fabric cards
  D. FCC
  E. LCC
  A. DRP
  B. line card

• Question 450:

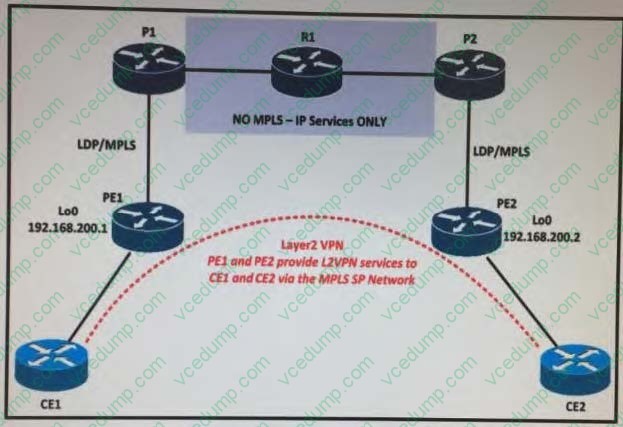

  Refer to the exhibit.

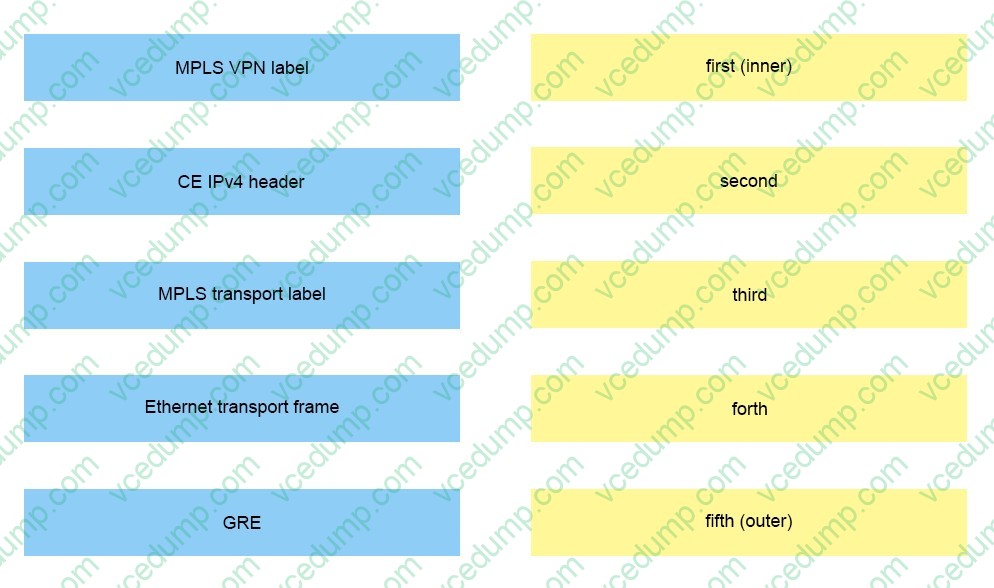

  PE1 and PE2 has a Layer 2 VPN over a GRE tunnel. This GRE tunnel built between P1 and P2 has LDP enabled. Consider a packet capture of the packets from CE1 and CE2 at P1 and R1 link. Drag the headers on the left and drop them on the right in the order of the encapsulation, starting from the inner header (at the top) to the outer header (at the bottom).

  Select and Place:
