• Question 361:

  Based on the 802.3ae definition, which capability is a function of WIS?

  A. interoperability on the same link with POS, by adapting the Ethernet MAC frames to be based on a serial protocol such as PPP.
  B. line clocking based on the synchronous nature of the POS requirements either clocking when the interface is connected back to back or external clocking when connected through DWDM.
  C. an equivalent POS optical and electrical signal on SONET/SDH protocols and APS to restore link failures in 50 ms.
  D. ability for WAN-PHY equipment to generate an Ethernet data stream to map to an OC-192 concatenated payload at the PHY level, without any MAC layer processing.
  D. ability for WAN-PHY equipment to generate an Ethernet data stream to map to an OC-192 concatenated payload at the PHY level, without any MAC layer processing.

• Question 362:

  What is true regarding Autonomous Systems (AS)?

  A. All of the Above
  B. AS numbers are assigned by the IANA
  C. AS numbers are used by BGP (Border Gateway protocol to exchange IP routing information with neighboring AS
  D. In the internet, an Autonomous System (AS) is a collection of IP networks and routers under the control
  A. All of the Above

• Question 363:

  Which feature provides rapid failure detection times between the forwarding engines, while maintaining low overhead?

  A. Resource Reservation protocol
  B. Precision Time protocol
  C. bidirectional forwarding detection
  D. MPLS traffic engineering
  E. fast hello
  F. nonstop forwarding
  C. bidirectional forwarding detection

• Question 364:

  What is the port number of an IPsec Encapsulating Security Payload packet? (ESP)

  A. IP protocol 51
  B. UDP port 50
  C. Ip protocol 50
  D. TCP Port 50
  E. UDP port 51
  F. TCP port 51
  C. Ip protocol 50

• Question 365:

  A service provider with MPLS traffic-eng tunnels is supporting multicast traffic that uses RPF to ensure the source of the sender. The unicast routing table points the source through TE, which does not support multicast and RPF fails.

  Which action fixes the issue?

  A. Use auto-route announce under MPLS TE.
  B. Use multicast-intact under IGP.
  C. Use IGMP snooping.
  D. Use CGMP.
  B. Use multicast-intact under IGP.

• Question 366:

  Which three fields are used by the NetFlow to define a unique flow? (Choose three.)

  A. IP header TTL value
  B. type of service
  C. Layer 3 protocol type
  D. TCP sequence number
  E. EtherType
  F. input logical interface
  B. type of service
  C. Layer 3 protocol type
  F. input logical interface

• Question 367:

  Select the three best answers which best describe Private Network-to Network Interface (PNNI) in an ATM network (Choose three.)

  A. It is the Routing protocol used between ATM switches
  B. PNNI uses the same Dijsktra algorithm for SPF calculation
  C. PNNI and OSPF use the same Database to make cohesive decision for packet forwarding
  D. PNNI measures line capacities and delays in addition to simple cost metrics
  A. It is the Routing protocol used between ATM switches
  B. PNNI uses the same Dijsktra algorithm for SPF calculation
  D. PNNI measures line capacities and delays in addition to simple cost metrics

• Question 368:

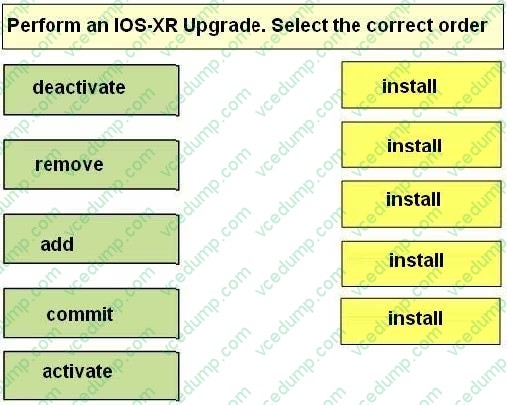

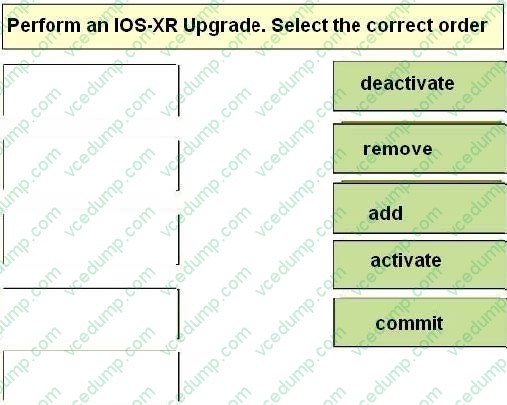

  Drag Drop

  Select and Place:





• Question 369:

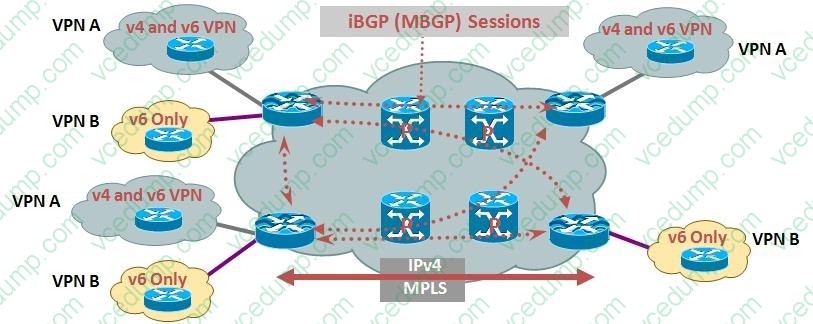

  Refer to the exhibit.



  Which IPv6 deployment feature is displayed?

  A. MPLS 6PE
  B. MPLS 6VPE
  C. 6 to 4 Replay Service D. native IPv6 over MPLS
  E. 6 to 4 Tunnel
  B. MPLS 6VPE

• Question 370:

  Refer to the exhibit. A service provider is providing Layer 2 VPN between CE1 and CE2 via a pseudowire created between R1 and R5. What is the label stack of the packets leaving R6 going toward R5 for traffic flowing from CE1 to CE2?

  A. Single label of 17
  B. 24(top) and 0 (Bottom)
  C. Single label of 24
  D. 3 (top) and 24 (bottom)
  E. 0 (top) and 24 (bottom)
  F. 0 (top) and 17 (bottom)
  G. 3 (top) and 24 (bottom)
  H. 17 (top) and 0 (bottom)
  F. 0 (top) and 17 (bottom)
