Cisco 400-201 Online Practice Questions and Exam Preparation

Cisco 400-201 Online Questions & Answers

• Question 261:

  What type of IPv6 address is the address FF05::2:260:8F908?

  A. Multicast temporary site local
  B. Multicast permanent node link local
  C. Multicast permanent site local
  D. Multicast permanent link local
  C. Multicast permanent site local

• Question 262:

  Which three IS-IS TLVs are used to support MPLS traffic engineering? (Choose three).

  A. extended TLV 22
  B. extended TLV 23
  C. extended TLV 134
  D. extended TLV 135
  E. extended TLV 136
  F. extended TLV 138
  A. extended TLV 22
  C. extended TLV 134
  D. extended TLV 135

• Question 263:

  Which two statements best describe EtherChannel? (Choose two).

  A. EtherChannel technology helps aggregate traffic grouping multiple, full-duplex point-to- point links together
  B. EtherChannel technology is based on the 802.1 IEEE stand
  C. EtherChannel can aggregate up to 800 Mbps,8 Gbps,or 80Gbps of aggregate bandwidth for a Fast EtherChannel, Gigabit EtherChannel,or 10 Gigabit EtherChannel connection respectively.
  D. EtherChannel is defined for Rapid Spanning Tree for faster convergence.
  A. EtherChannel technology helps aggregate traffic grouping multiple, full-duplex point-to- point links together
  C. EtherChannel can aggregate up to 800 Mbps,8 Gbps,or 80Gbps of aggregate bandwidth for a Fast EtherChannel, Gigabit EtherChannel,or 10 Gigabit EtherChannel connection respectively.

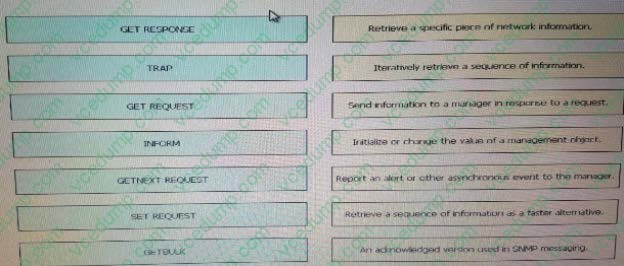

• Question 264:

  Drag and Drop the SNMP message type on the left onto the corresponding functionality on the right?

  Select and Place:





  ---



• Question 265:

  An engineer from AS 83 must enable bilateral peering with AS 3792. However, AS 3792 must not be a transit provider for AS 83. Which BGP filtering meets this requirement?

  A. ip as-path acces-list 1 permit ^3792+$
  B. ip as-path access-list 1 permit ^(3792)+$
  C. ip as-path access-list 1 permit ^_3792+$
  D. ip as-path access-list 1 permit ^(3792_)+$
  E. ip as-path access-list 1 permit ^3792$
  E. ip as-path access-list 1 permit ^3792$

• Question 266:

  A client has a Layer 2 handoff with a service provider using HSRP. This client has a requirement to optimize the HSRP configuration in it reacts when an indirect failure occurs. Which feature interacts with HSRP to achieve this goal?

  A. IP SLA
  B. MPLS node protection
  C. IP Fast Reroute
  D. Anycast
  A. IP SLA
  C. IP Fast Reroute

• Question 267:

  Which two components does the IS-IS IPv4 Loop-Free Alternate Fast Reroute feature fail to protect? (Choose two.)

  A. ECMP
  B. port channel
  C. downstream path
  D. subinterface
  E. MPLS TE tunnels
  D. subinterface
  E. MPLS TE tunnels

• Question 268:

  Which protocol provides an alternative to the STP, which provides a way to control network loops, handle link failures, and improve convergence time and can coexist with STP?

  A. PBB-EVPN
  B. IEEE 802.1ah
  C. Flex links
  D. E-TREE
  E. REP
  E. REP

• Question 269:

  Which option describes a service function as defined in SDN?

  A. a virtual server
  B. a virtual chain
  C. a virtual network function
  D. a virtual device
  C. a virtual network function

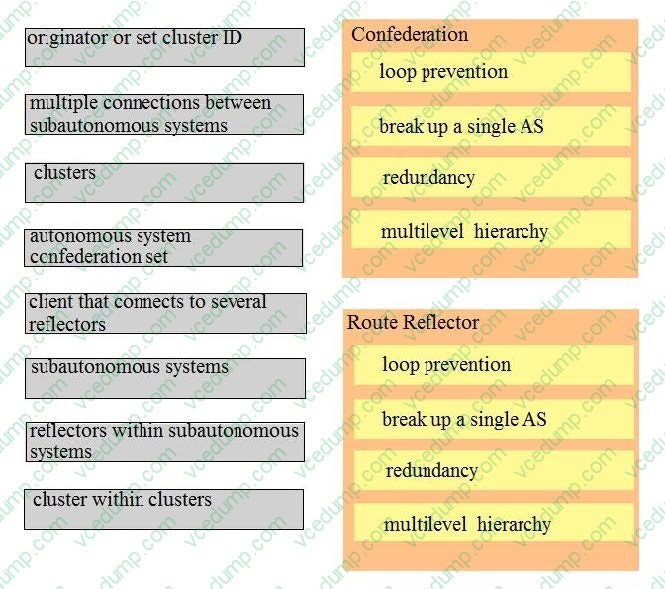

• Question 270:

  DRAG DROP

  Drag and drop the BGP AS confederation or route-reflector characteristic from the left onto the correct scalability topic on the right.

  Select and Place:
