Cisco 400-201 Online Practice Questions and Exam Preparation

Cisco 400-201 Online Questions & Answers

• Question 211:

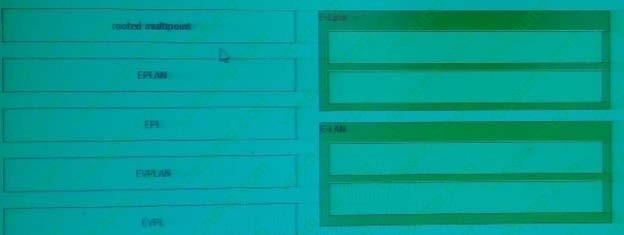

  According to MEF definition, drag and drop the EVP types on the left onto the correct EVC services. Not all options are used

  Select and Place:





• Question 212:

  Which SONET protocol layer is in charge of clock synchronization and timing issues?

  A. Photonic
  B. Section
  C. Path
  D. Line
  B. Section

• Question 213:

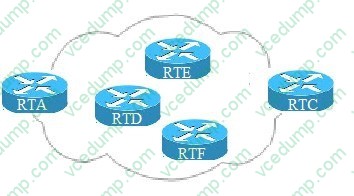

  Refer to the exhibit. A service provider requires building a multihop LDP neighborship between RTA and RTC routers. Which kind of message does RTA send to RTC to establish an LDP session?



  A. a unicast targeted hello message as a UDP packet
  B. a multicast targeted hello message as a UDP packet
  C. a unicast targeted hello message as a TCP packet
  D. a multicast targeted hello message as a TCP packet
  C. a unicast targeted hello message as a TCP packet

• Question 214:

  Which two statements about MPLS LDP Session Protection are true? (Choose two.)

  A. LDP session can be applied onto to a directly connected neighbor.
  B. LDP label bindings must be re-advertised when the directly connected link comes back.
  C. LDP session stays up as long as the LDP peer is reachable after a network failure.
  D. MPLS LDP session protection uses LDP targeted hellos.
  E. MPLS LDP session protection and LDP IGP synchronization are mutually exclusive features.
  C. LDP session stays up as long as the LDP peer is reachable after a network failure.
  D. MPLS LDP session protection uses LDP targeted hellos.

• Question 215:

  DRAG DROP

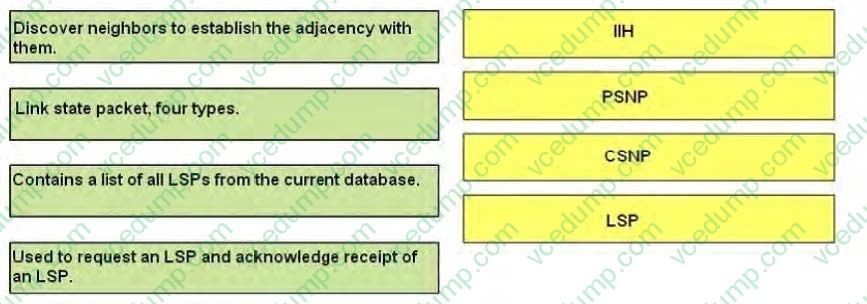

  Drag the ISIS packet types to correct type definition.

  Select and Place:





• Question 216:

  DRAG DROP

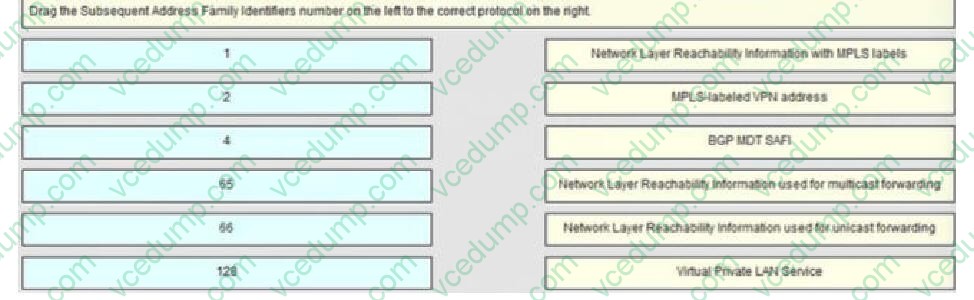

  Select and Place:





• Question 217:

  Which of the following descriptions about IP spoofing is correct?

  A. IP destination address is forged
  B. IP source address is forged
  C. IP TCP destination port is forged
  D. None of above
  E. IP TCP source port is forged
  B. IP source address is forged

• Question 218:

  Which router or router combination is used to calculate the MPLS traffic engineering tunnel path?

  A. head-end router and tail-end router
  B. middle-point router
  C. head-end router
  D. tail-end router
  C. head-end router

• Question 219:

  Which are the three mandatory BGP attributes? (Choose three.)

  A. AS path
  B. origin
  C. local preference
  D. next hop
  E. MED value
  F. communities
  A. AS path
  B. origin
  D. next hop

• Question 220:

  You are enabling NSF for IS-IS. What are two advantages of Cisco NSF variation over IEFT NSF? (Choose two.)

  A. It does not rely on NSF-aware neighbors.
  B. It continues forwarding IP packets until route convergence is complete.
  C. It provides NSR in addition to NSF.
  D. NSF-capable router receives the adjacency and link-state information from NSF-aware neighbors.
  E. It allows the standby RP to take control of the device after a hardware or software fault on the active RP.
  A. It does not rely on NSF-aware neighbors.
  E. It allows the standby RP to take control of the device after a hardware or software fault on the active RP.
