Cisco 400-201 Online Questions & Answers

• Question 101:

  An operations engineer configured a BGP session between two routers, After deploying the configuration, the engineer notices that the BGP session cannot be established and he sees an error message in the system log. After the show bgp summary command is issue, the engineer sees in the output that BGP router ID is set to 0.0.0.0 what is the root cause of this issue?

  A. A cease notification message is being sent to the neighbor because neighbor router ID does not match the neighbor configuration
  B. The router did obtain a BGP router ID. The bgp router-id command was not found. The router does have an interface with an IPv4 address assigned that is in the up/up state
  C. The BGP capalility negotiation failed to negotiate the router ID information between BGP neighbors
  D. The router has found a better router ID and it is in the process of switching to the new router ID
  B. The router did obtain a BGP router ID. The bgp router-id command was not found. The router does have an interface with an IPv4 address assigned that is in the up/up state

• Question 102:

  Which are the three characteristics of Cisco IOS Embedded Packet Capture? (Choose three)

  A. It has the facility to the export the packet capture in pcap format
  B. It uses EXEC-level commands to start and stop the capture
  C. The Cisco IOS output is displayed in a human-readable format
  D. It has the ability to preserve Ethernet encapsulation information when exported
  E. It has the ability to capture packets in the Cisco Express Forwarding path
  F. The capture can be performed only on physical interfaces and subinterfaces
  A. It has the facility to the export the packet capture in pcap format
  B. It uses EXEC-level commands to start and stop the capture
  E. It has the ability to capture packets in the Cisco Express Forwarding path

• Question 103:

  Which four of these statements are restrictions for Frame Relay PVC bundles with QoS support for IP and MPLS? (Choose four)

  A. A PVC bundle will not come up unless all the precedence, DSCP, and EXP levels are configured in the bundle.
  B. A PVC bundle can perform precedence and DSCP matching at the same time
  C. A PVC bundle may contain no more than sixteen PVCs
  D. A PVC can be in only one PVC bundle
  E. A PVC bundle cannot perform precedence and DSCP matching at the same time.
  F. A PVC bundle may contain no more than eight PVCs.
  A. A PVC bundle will not come up unless all the precedence, DSCP, and EXP levels are configured in the bundle.
  D. A PVC can be in only one PVC bundle
  E. A PVC bundle cannot perform precedence and DSCP matching at the same time.
  F. A PVC bundle may contain no more than eight PVCs.

• Question 104:

  On which two protocols is VNC based? (Choose two)

  A. Rdesktop
  B. Terminal Services Client
  C. TCP
  D. RFB
  E. UDP
  F. CoRD
  C. TCP
  D. RFB

• Question 105:

  A customer has a requirements record voice calls for IPT connected on switch A using VLAN 200.Record traffic should be forwarded to the IPCC recording server, which is connected on switch B, voice recording is not working. Assuming that RSPAN source monitoring is properly set, which action fixes this problem?

  A. On switch B, the monitor session 1 destination remote command must be applied
  B. On switch B, the port connects to the recording server must have an IP address and be accessible via VLAN 200
  C. On switch B, the port that connects to the reording server must be accessed on VLAN
  D. On switch A and switch B, the remote-span command must be configured on the mirroring dedicated VLAN
  D. On switch A and switch B, the remote-span command must be configured on the mirroring dedicated VLAN

• Question 106:

  What is the default maximum transmission unit on the Cisco router ATM interface?

  A. 4470 bytes
  B. 1516 bytes
  C. 9288 bytes
  D. 1500 bytes
  E. 1492 bytes
  A. 4470 bytes

• Question 107:

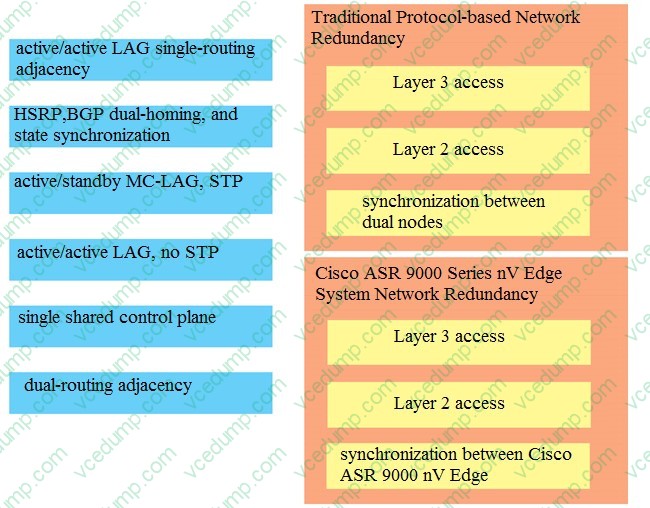

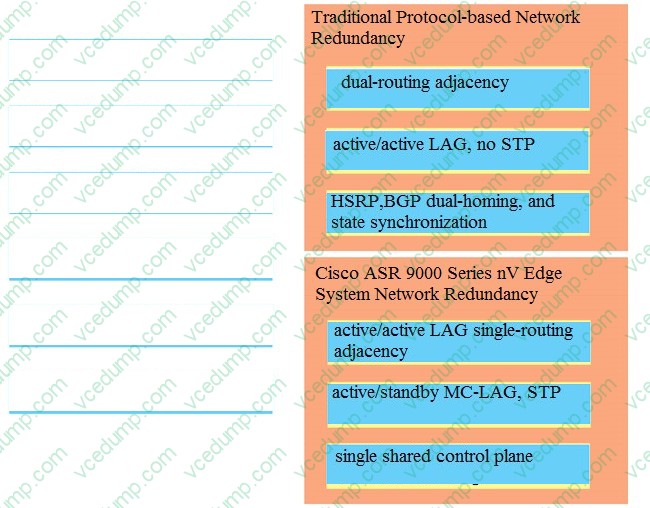

  DRAG DROP

  Drag and drop the characteristics of nV Satellite and traditional protocol-based network redundancy from the left onto the correct functionality on the right as per each network redundancy solution.

  Select and Place:





• Question 108:

  On Cisco IOS devices, which IS-IS feature reduces the convergence time for prefixes designated as high priority?

  A. iSPF
  B. advertise passive only
  C. prefix prioritization
  D. Fast-Forwarding
  E. Route tagging
  E. Route tagging

• Question 109:

  As described in RFC 3270, short-pipe mode operation, the PE to CE egress polices are based upon:

  A. customer marking
  B. remarked IP tos value
  C. Qos groups/discard class
  D. innermost label exp value
  E. MDRR quantam
  F. topmost label exp value
  A. customer marking

• Question 110:

  ISP_X has IPv4 only enabled in the MPLS backbone. ISP_X must provide IPv6 services to its customers including IPv6 Internet access. Which IPv6 transition mechanism allows ISP_X to provide IPv6 connected by leveraging the existing MPLS IPv4 core network?

  A. 6to4 tunnels
  B. NAT444
  C. 6PE
  D. NAT64
  E. 6RD
  F. DS Lite
  A. 6to4 tunnels
