VMware VCAP6.5-DCV Design 3V0-624 Questions & Answers

• Question 1:

  VXLAN and Storage deduplication are in place, Architect recommends VM encryption which teams need to be involved?

  A. Storage team

  B. Security team

  C. Networks Team

  D. AD Team

  Correct Answer: AB

• Question 2:

  A solution architect has been tasked with designing a new environment that meets the growing needs of a company, and as obtained this information:

  1.

  Each new server will use a single 2-port 10Gb Converged Network Adapter (CNA) for both network and storage access.

  2.

  The network team has replaced all network equipment with a 10Gb fabric.

  3.

  The new environment will host both web servers and Oracle database servers.

  4.

  Resources will not be overcommitted under regular operations to mitigate performance issues.

  5.

  The business needs a tool to understand application failures.

  6.

  $1million has been budgeted for the data center expansion project.

  Based on the information obtained, which two statements are risks for the new design? (Choose two.)

  A. The Converged Network Adapters may not be able to support both network and storage throughput.

  B. The Converged Network Adapters are compatible with vSphere 6.5.

  C. The Oracle database servers are configured for high availability.

  D. The total project costs may be over budget due to not overcommitting resources.

  Correct Answer: AD

• Question 3:

  A company has a cluster consisting of 72GHZ of processor resources and has these requirements:

  1.

  Virtual machines in the Production pool must run without contention of any CPU resources with the other pools, while Development and QA VMs do NOT share this restriction.

  2.

  QA VMs are considered the least important in this environment.

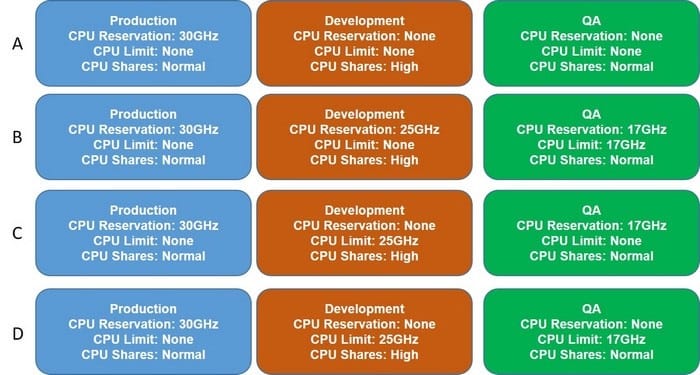

  Which resource pool design would achieve the company's need without introducing unnecessary contention?



  A. Exhibit A

  B. Exhibit B

  C. Exhibit C

  D. Exhibit D

  Correct Answer: A

• Question 4:

  A company uses Strick Lockdown mode in the design for a new data center, but the vSphere administrator must still allow access to an ESXi host for third-party solutions. How is it possible to override and add trusted users?

  A. Use DCUI Access

  B. Use Exception Users

  C. Use Security Profiles

  D. Use Promiscuous Mode

  Correct Answer: B

  The host can only be accessed through vCenter Server. If SSH or the ESXi Shell is enabled, running sessions for accounts in the DCUI.Access advanced option and for Exception User accounts that have administrator privileges remain enabled. All other sessions are terminated.

• Question 5:

  A customer uses servers without internal storage and asks a systems architect to design a solution with a Fiber Channel array and blade servers as options. The customer requires:

  1.

  Easier server replacement

  2.

  Booting through HBA or FCoE

  3.

  Less wasted space

  4.

  Improved management

  5.

  Batter reliability

  6.

  Inexpensive servers

  7.

  Easier backup processes

  Which design element will follow VMware recommended best practices and also meet customer requirements?

  A. VMware Virtual SAN

  B. Auto Deploy

  C. PXE boot

  D. Boot from SAN

  Correct Answer: D

• Question 6:

  The web developer has stated that the site must come back online after a hardware failure without administrative intervention.

  What is a non-functional requirement?

  A. The virtual machine restart priority must be set to High

  B. The virtual machine must be automatically restarted after a catastrophic host failure

  C. VMware Fault Tolerance (FT) must be enabled for the virtual machine

  D. VMware High Availability (HA) must be enabled on the ESXi cluster, which must contain at least 1 spare host

  Correct Answer: D

• Question 7:

  A customer has requested that a new vSphere 6.5 environment be designed with its upcoming data center consolidation effort in mind.

  1.

  The existing environment is a mix of physical and virtual servers.

  2.

  Fibre Channel storage is used for 100 vSphere ESXi hosts and 600 physical servers across three data centers, some of which are latency-sensitive.

  3.

  The customer expects to increase its virtualization ratio from 50% today to 90% at the conclusion of this effort.

  4.

  The customer would like the new design to feature a software-defined storage solution that will decrease its TCO.

  Which two statements are the risks described in this scenario? (Choose two.)

  A. Multiple changes occurring at once.

  B. The design must be implemented within three months.

  C. Some legacy applications are latency-sensitive.

  D. The design must increase consolidation ratio.

  E. Existing clusters are at capacity and must be expanded.

  Correct Answer: AC

• Question 8:

  A company has asked a systems architect to include an existing. Which design concept applies to this situation?

  A. Constraint

  B. Assumption

  C. Requirement

  D. Risk

  Correct Answer: A

• Question 9:

  A university is going through an IT transformation project and is re-evaluating how to use technology to provide a better academic experience for its 15,000 students. The university is a current VMware customer and has a single data center.

  1.

  Within that data center, the university is using blade servers backed by a Fibre Channel array for its business critical applications

  2.

  It has two iSCSI arrays (one for the development environment and other for the no-critical production environment)

  3.

  The university's VMware environment consists of three clusters. The first cluster contains all development virtual machines (VMs), the second cluster is dedicated to DMZ VMs, and the final cluster contains production VMs

  4.

  The university requires the ability to perform hardware maintenance without a service interruption, and can only sustain 4 minutes of downtime per month

  From the list below, which three are constraints? (Choose three.)

  A. 99.9% uptime is required for the environment

  B. The Network Operation Center uses SolarWinds for all monitoring and alerting

  C. Blade servers must be used to consolidate space

  D. Provide capacity to support 20% Year-over-Year growth for the next 3 years

  E. There area current contracts in place with Dell to provide all server hardware

  Correct Answer: BCE

• Question 10:

  A company has requested a design for a secure cluster of ESXi 6.5 hosts its accounting business unit. The company has also requested that host administrator accounts have SSH access, but for direct console access to the completely blocked.

  Without making changes to the customer's configuration request, which host security settings would meet these requirements?

  A. Normal Lockdown Mode Host administrator accounts added to Cluster with Administrator Role

  B. Strict Lockdown Mode Host administrator accounts added to Cluster with Administrator Role

  C. Normal Lockdown Mode Host administrator accounts added to Exception Users

  D. Strict Lockdown Mode Host administrator accounts added to Exception Users

  Correct Answer: D
