VMware VCAP-CMA Design 2021 3V0-32.21 Questions & Answers

• Question 1:

  An organization's cloud team would like to reduce template sprawl. Below are the applications they want to deploy using cloud templates:

  MS SQL and Web IIS applications on OS types Windows 2016 and Windows 2019 Oracle WebLogic and Oracle DB applications on OS types RHEL7 and RHEL 8

  Which two options would meet these requirements? (Choose two.)

  A. Create an image mapping for Windows and RHEL OS types

  B. Create a Cloud Template for each application type with a combination of OS types

  C. Create a Cloud Template or upgrade an existing one with user input to select the OS type

  D. Create a Cloud Template for each OS type and have a user input option to pick the application type.

  E. Create image mappings for OS types Windows 2016, Windows 2019, RHEL7 and RHEL8

  Correct Answer: AC

• Question 2:

  An architect is designing a certificate strategy for vRealize Operations (vROps) to satisfy the following requirements:

  Enhance security Avoid browser warnings The certificate must be applicable for all vROps servers

  Which three design decisions would fulfill the requirements? (Choose three.)

  A. Certificates will use the PEM format.

  B. Certificates will be created using the Diffie-Hellman security-key algorithm.

  C. Certificates will use the PFX and/or PKCS12 format.

  D. The solution will use CA-signed certificates.

  E. Certificates will use multiple Subject Alternative Name (SAN) entries.

  F. The solution will use self-signed certificates.

  Correct Answer: ADE

• Question 3:

  A cloud architect is planning to scale out the small deployment of vRealize Automation to address high availability requirements.

  When creating an implementation plan, which prerequisite should be documented?

  Note: FQDN: Fully qualified domain name VIP: Virtual IP address

  A. Request certificate containing VIP FQDN for each Organization for VMware Identity Manager VIP

  B. Request Certificate Authority (CA)-signed certificate containing the VIP FQDN and the FQDN of the VMware Identity Manager nodes

  C. Request Certificate Authority (CA)-signed certificate containing the VIP FQDN and the FQDN of all the cluster nodes

  D. Request certificate containing VIP FQDN for each Organization for vRealize Automation VIP

  Correct Answer: C

• Question 4:

  An architect is tasked with the following:

  Build a private cloud solution for an organization using VMware vRealize Automation. This private cloud needs to manage two different datacenters separated geographically. The private cloud solution needs to be highly available.

  Which of the following approaches can the architect take to achieve this?

  Note: VMware Identity Manager has been renamed as VMware Workspace ONE Access.

  A. Deploy a Workspace ONE Access cluster in a multi-site design architecture with 3-nodes spanning both the datacenters.

  B. Deploy a 3-node Workspace ONE Access cluster in a single-site design architecture in one of the datacenters.

  C. Deploy a single-node Workspace ONE Access instance in a single-site design architecture in one of the datacenters.

  D. Deploy a Workspace ONE Access cluster in a multi-site design architecture with 3-nodes in each of the datacenters.

  Correct Answer: D

• Question 5:

  An organization has a set of requirements for its private cloud:

  Provide the ability to reclaim idle VMs deployed in vRealize Automation (vRA) Report on the health of resources provisioned in vRA Calculate the cost of VMs provisioned in vRA Optimally place vRA deployment workloads to vSAN and avoid contention

  Which cloud management product should be integrated with vRA to meet these requirements?

  A. vRealize Operations

  B. vRealize Orchestrator

  C. vRealize Suite Lifecycle Manager

  D. vRealize Log Insight

  Correct Answer: B

• Question 6:

  A customer wants to implement vRealize Suite Lifecycle Manager (vRSLCM) as a part of a new SDDC

  deployment.

  The customer has two physical data centers and number of branch offices.

  The customer has recently purchased Hyper-converged Infrastructure (HCI) hardware that has to be

  implemented and configured.

  The customer has a target availability Service Level Agreement (SLA) of 99.99%, measured quarterly, for

  the management components.

  Which recommendation should the architect make to achieve the requirements?

  A. Deploy a 3-node vRSLCM cluster on a vSAN stretched cluster

  B. Deploy a vRSLCM appliance in one DC and replicate it to the second DC

  C. Deploy a vRSLCM appliance on a vSAN stretched cluster

  D. Deploy a vRSLCM appliance on a vSAN cluster

  Correct Answer: D

• Question 7:

  An architect is designing a greenfield Cloud Management solution. During the requirements gathering workshop with the customer, the following information was captured:

  The log monitoring solution must be capable of collecting a minimum of 10,000 evets per second. The automation solution must be capable of deploying at least 20 concurrent workloads.

  When creating the design documentation, which design quality should be used to classify the requirements?

  A. Availability

  B. Manageability

  C. Performance

  D. Recoverability

  Correct Answer: C

• Question 8:

  A healthcare company has mandated that all IP and DNS entries be allocated from an existing third-party IPAM solution. Also, for auditing purposes, all systems must handle user authentication via the existing open source LDAP directory.

  When considering a logical design for this scenario, which is true about the dependency relationships of these systems?

  A. The IPAM system is an upstream dependency and the LDAP system is a downstream dependency of vRealize Automation.

  B. Both the IPAM and LDAP systems are external, upstream dependencies of vRealize Automation.

  C. Both the IPAM and LDAP systems are external, downstream dependencies of vRealize Automation.

  D. The LDAP system is an upstream dependency and the IPAM system is a downstream dependency of vRealize Automation.

  Correct Answer: C

• Question 9:

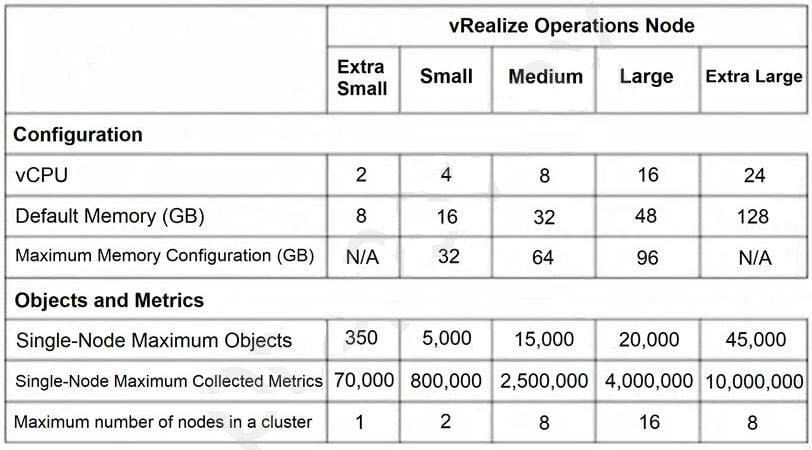

  A customer wants to collect data from 120,000 objects and given the vRealize Operations sizing guide: (See exhibit.)



  Assuming the customer has no requirements for continuous availability or high availability, what recommendation for the quantity and type of nodes should the architect provide?

  A. 3 Extra Large Nodes

  B. 6 Large Nodes

  C. 12 Large Nodes

  D. 8 Medium Nodes

  Correct Answer: D

• Question 10:

  A customer will use their vRealize Automation solution to provision and manage both production and development workloads.

  During workshops, the customer has communicated the following information about the environment:

  The production and development workloads are deployed to separate vCenter Servers.

  Three different user groups have been identified for access to the solution: Application Developers,

  Application Owners, and Infrastructure Operators

  The customer has communicated the following requirements:

  Only Application Owners and Infrastructure Operators may be permitted to deploy production workloads.

  A limit should be applied to the number of development workloads concurrently deployed by each user

  type.

  Application Owners must not be able to view or modify another user's deployment(s).

  In addition to the creation of separate Production and Development Cloud Zones, which three design

  decisions meet the requirements? (Choose three.)

  A. Add the Application Owners and Infrastructure Operators groups to the production project.

  B. Define a Cloud Assembly project for each user group.

  C. Define a Cloud Assembly project for production and another for development.

  D. Define an instance limit for projects using the development Cloud Zone.

  E. Define a priority of 0 for the production Cloud Zone in the project used by Application Developers.

  F. The deployment sharing option should be turned off for the Application Owners project.

  Correct Answer: BDE
