Cisco 352-001 Online Practice Questions and Exam Preparation

Cisco 352-001 Online Questions & Answers

• Question 251:

  In a routed access hierarchical campus design, the access-to-distribution Layer 2 uplink trunks are replaced with Layer 3 point-to-point routed links. Why is it recommended that VLANs are confined on a single access switch rather than span across multiple access switches?

  A. to allow for better convergence time
  B. to prevent the occurrence of Layer 2 loops
  C. to allow for fault isolation
  D. to prevent routing black holes
  D. to prevent routing black holes

• Question 252:

  A multinational enterprise company has many branches in the Americas, Europe, and Asia Pacific with headquarters in London. Branch offices use Ethernet (bandwidth range from 1 Mb/s to 10 Mb/s) as access technology to connect to the headquarters and the regional hubs. The company is currently implementing VolP and QoS in all their locations, and they are worried about jitter between their branches and the headquarters. Which option reduces the effect of jitter?

  A. buffering at endpoints
  B. Call Admission Control
  C. increase the bandwidth of the links
  D. WRED
  A. buffering at endpoints

• Question 253:

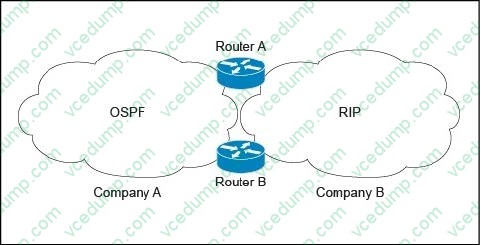

  Refer to the exhibit.



  Company A is running a single-area OSPF, and Company B is running RIP as the IGP with no overlapping IP address spaces. Company A has just acquired Company B and both networks must be merged. Which three design components are recommended to guarantee connectivity and redundancy between the two networks? (Choose three.)

  A. Enable mutual redistribution between OSPF and RIP on one border router.
  B. Enable mutual redistribution between OSPF and RIP on Router A and Router B using route tags.
  C. Increase the administrative distance to 130 for the OSPF external prefixes on Router A and Router
  D. Implement an ACL on Router A and Router B to prevent OSPF external routes from being installed in the OSPF database.
  E. Filter external routes on Router A and Router B based on route tags.
  B. Enable mutual redistribution between OSPF and RIP on Router A and Router B using route tags.
  C. Increase the administrative distance to 130 for the OSPF external prefixes on Router A and Router
  E. Filter external routes on Router A and Router B based on route tags.

• Question 254:

  An enterprise company needs to transport multicast traffic between its hub-and-spoke WAN routers over an MPLS Layer 3 VPN provider that does not currently support multicast. Which option describes how this enterprise how this enterprise can achieve this requirement in a cost-effective way?

  A. Use MSDP over the WAN.
  B. Enable multicast routing on the WAN physical and tunnel interfaces.
  C. Create multicast-enabled GRE tunnels over the WAN between the hub-and-spoke routers.
  D. Provide an Internet link to each site and use DMVPN over the Internet.
  C. Create multicast-enabled GRE tunnels over the WAN between the hub-and-spoke routers.

• Question 255:

  An enterprise campus is adopting a network virtualization design solution with these requirements



  It must include the ability to virtualize the data plane and control plane by using VLANs and VRFs



  It must maintain end-to-end logical path transport separation across the network



  resources available grouped at the access edge

  Which two primary models can this network virtualization design be categorized? (Choose two)

  A. Path isolation
  B. Session isolation
  C. Group virtualization
  D. Services virtualization
  E. Edge isolation
  A. Path isolation
  D. Services virtualization

• Question 256:

  When using LDAP servers, you should configure the password policy to prevent _____.

  A. DoS attacks
  B. dictionary attacks
  C. flood attacks
  D. man-in-the-middle attacks
  B. dictionary attacks

• Question 257:

  Acme Corporation indicates that their network design must support the ability to scale to support a high number of remote sites. Which IGP is considered to scale better for a hub-and-spoke topology?

  A. BGP
  B. OSPF
  C. IS-IS
  D. EIGRP
  D. EIGRP

• Question 258:

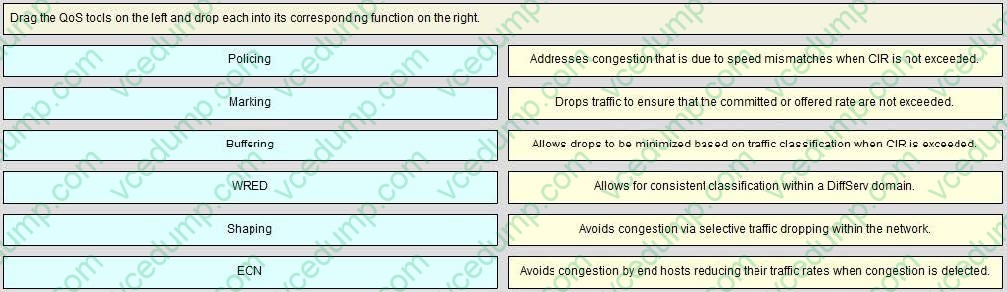

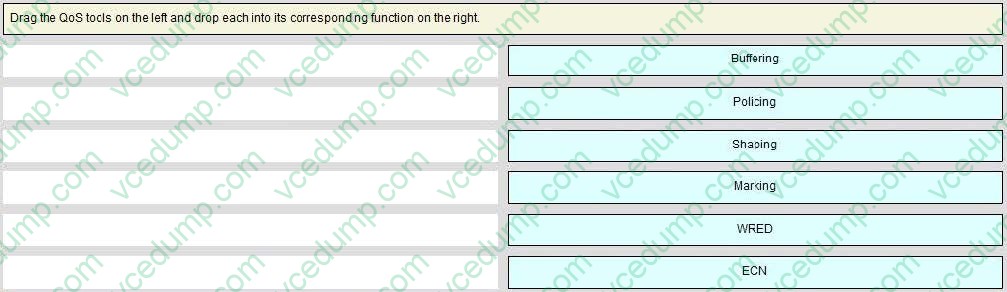

  DRAG DROP

  Select and Place:





• Question 259:

  Which three options are important design functions of IPv6 first-hop security? (Choose three)

  A. It prevents rogue DHCP servers farms assigning IPv6 addresses.
  B. It prevents IPv6 packets fragmentation.
  C. It limits IPv6 route the advertisement in the network.
  D. It implements a broadcast-control mechanism.
  E. It suppresses excessive multicast neighbor discovery.
  F. It implements multihoming security.
  A. It prevents rogue DHCP servers farms assigning IPv6 addresses.
  C. It limits IPv6 route the advertisement in the network.
  E. It suppresses excessive multicast neighbor discovery.

• Question 260:

  You are the SAN designer for the ABC Company. Due to budget constraints, there is increased pressure by management to further optimize server utilization by implementing virtualization technologies on all servers and increase virtual machines density. Faced with some SAN challenges, the server team requests your help in the design and implementation of the SAN in the new virtualized environment. In which two ways can NPIV be used in your proposed design? (Choose two.)

  A. NPIV is used to assign multiple FCIDs to a single N Port.
  B. NPIV is used to define and bind multiple virtual WWNs (VIs) to a single physical pWWN.
  C. You recommend NPIV so that hosts can be members of different zones.
  D. NPIV can be used to allow multiple applications on the same port to use different IDs in the same VSAN.
  A. NPIV is used to assign multiple FCIDs to a single N Port.
  D. NPIV can be used to allow multiple applications on the same port to use different IDs in the same VSAN.
