Cisco 351-001 Online Practice Questions and Exam Preparation

Cisco 351-001 Online Questions & Answers

• Question 711:

  DRAG DROP

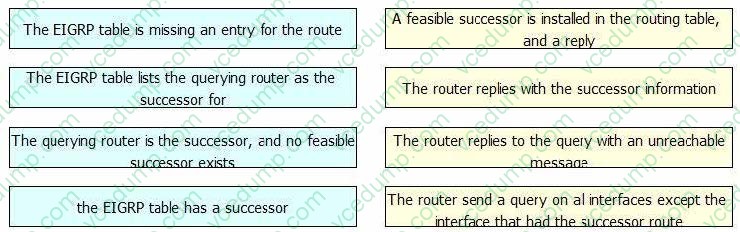

  Drag and drop the EIGRP query condition on the left to the corresponding action taken by the router on the right.

  Select and Place:





• Question 712:

  What are the minimal configuration steps that are required to configure EIGRP HMAC- SHA2 authentication?

  A. classic router mode, interface XX, authentication mode hmac-sha-256
  B. named router mode, address-family statement, authentication mode hmac-sha-256
  C. named router mode, address-family statement, af-interface default, authentication mode hmac-sha-256
  D. named router mode, address-family statement, authentication mode hmac-sha-256
  C. named router mode, address-family statement, af-interface default, authentication mode hmac-sha-256

  ---

  The example below shows how to configure EIGRP HMAC-SHA2 on Cisco router:

  Device(config)# router eigrp name1

  Device(config-router)# address-family ipv4 autonomous-system 45000 Device(config-router-af)# af-interface ethernet 0/0 Device(config-router-af-interface)# authentication mode hmac-sha-256 0 password1 Device(config-router-af-interface)#

  end

  Reference: http://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_eigrp/configuration/15- sy/ire-15-sy-book/ire-sha-256.html

• Question 713:

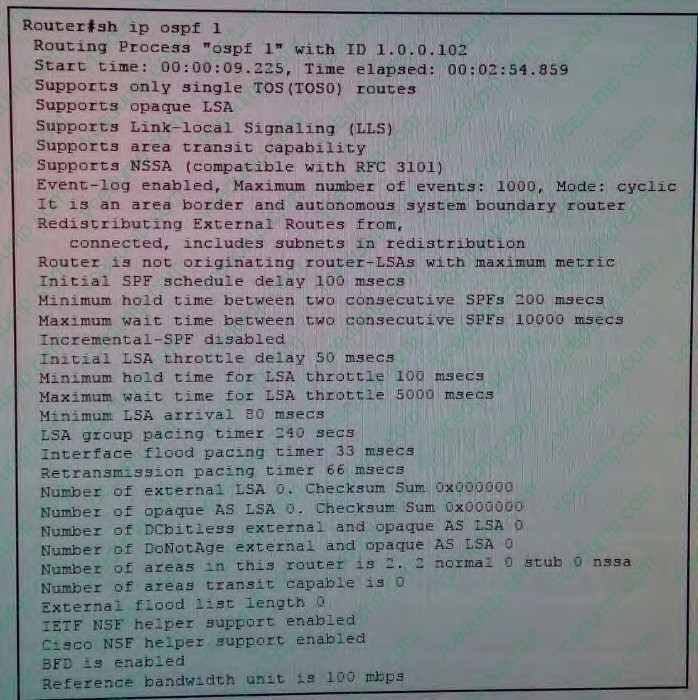

  Refer to the exhibit,



  which statement is true?

  A. BFD, SPF and LSA timers are tuned for faster convergence
  B. Fast convergence is not configured
  C. BFD and SPF throttling are configured
  D. Only BFD is enabled
  A. BFD, SPF and LSA timers are tuned for faster convergence

• Question 714:

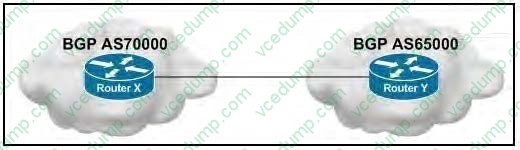

  Refer to the exhibit.



  How can Router X in AS70000 peer with Router Y in AS65000, in case Router Y supports only 2-byte ASNs?

  A. Router X should be configured with a remove-private-as command, because this will establish the peering session with a random private 2-byte ASN.
  B. It is not possible. Router Y must be upgraded to an image that supports 4-byte ASN.
  C. Router Y should be configured with a 4-byte AS using the local-as command.
  D. Router X should be configured with a 2-byte AS using the local-as command.
  D. Router X should be configured with a 2-byte AS using the local-as command.

  ---

  Since router Y does not support 4-byte ASN,s it will not understand any AS numbers larger than 65535, so router X should use the local-as command on the peering statement to router Y to so that it sends in a 2-byte ASN to router Y.

• Question 715:

  A configuration includes the line ip nbar port-map SSH tcp 22 23 443 8080. Which option describes the effect of this configuration line?

  A. It configures NBAR to search for SSH using ports 22, 23, 443, and 8080.
  B. It configures NBAR to allow SSH connections only on ports 22, 23, 443, and 8080.
  C. It enables NBAR to inspect for SSH connections.
  D. It creates a custom NBAR port-map named SSH and associates TCP ports 22, 23, 443, and 8080 to itself.
  A. It configures NBAR to search for SSH using ports 22, 23, 443, and 8080.

  ---

  The ip nbar-port-map command configures NBAR to search for a protocol or protocol name using a port number other than the well-known port.

  Reference: http://www.cisco.com/c/en/us/td/docs/ios/12_2/qos/command/reference/fqos_r/qrfcmd10.pd f

• Question 716:

  Which three actions are required when configuring NAT-PT? (Choose three.)

  A. Enable NAT-PT globally.
  B. Specify an IPv4-to-IPv6 translation.
  C. Specify an IPv6-to-IPv4 translation.
  D. Specify a ::/96 prefix that will map to an IPv4 address.
  E. Specify a ::/48 prefix that will map to a MAC address.
  F. Specify a ::/32 prefix that will map to an IPv6 address.
  B. Specify an IPv4-to-IPv6 translation.
  C. Specify an IPv6-to-IPv4 translation.
  D. Specify a ::/96 prefix that will map to an IPv4 address.

  ---

  The detailed steps on configuring NAY-PT is found at the reference link below:

  Reference:

  http://www.cisco.com/c/en/us/td/docs/ios/ipv6/configuration/guide/12_4t/ipv6_12_4t_book/i p6-nat_trnsln.html

• Question 717:

  Which two BGP attributes are optional, non-transitive attributes? (Choose two.)

  A. AS path
  B. local preference
  C. MED
  D. weight
  E. cluster list
  C. MED
  E. cluster list

• Question 718:

  Which two security risks can occur with PMTUD? (Choose two)

  A. An attacker can block valid Datagram Too small messages, to cause a DDos.
  B. An attacker can block valid Datagram Too small messages, to cause a Dos.
  C. An attacker can slow data flow by sending false messages that indicate that the PMTU is significantly smaller than the true PMTU.
  D. An attacker can cause data lost by sending false messages that indicate that the PMTU is significantly smaller than the true PMTU.
  E. An attacker can cause data lost by sending false messages that indicate that the PMTU is significantly larger than the true PMTU.
  F. An attacker can slow data flow by sending false messages that indicate that the PMTU is significantly larger than the true PMTU.
  B. An attacker can block valid Datagram Too small messages, to cause a Dos.
  D. An attacker can cause data lost by sending false messages that indicate that the PMTU is significantly smaller than the true PMTU.

• Question 719:

  What are the three required attributed in a BGP update message? (Choose three )

  A. AS_PATH
  B. COMMUNITY
  C. AGGREGATOR
  D. MED
  E. NEXT_HOP
  F. ORIGIN
  A. AS_PATH
  E. NEXT_HOP
  F. ORIGIN

• Question 720:

  Which three features does GETVPN support to improve deployment and scalability? (Choose three.)

  A. configuration of multiple key servers to work cooperatively
  B. allowing traffic to be discarded until a group member registers successfully
  C. local exceptions in the traffic classification ACL
  D. GDOI protocol configuration between group members and the key server
  E. redundant IPsec tunnels between group members and the key server
  F. redundant multicast replication streaming through the use of a bypass tunnel
  A. configuration of multiple key servers to work cooperatively
  B. allowing traffic to be discarded until a group member registers successfully
  C. local exceptions in the traffic classification ACL
