Cisco 351-001 Online Questions & Answers

• Question 651:

  Which two statements about IBGP multipath are true? (Choose two.)

  A. The IGP metric of the BGP next hop can be different from the best-path IGP metric if you configure the router for unequal-cost IBGP multipath.
  B. The IGP metric of the BGP next hop must be the same as the best-path IGP metric.
  C. The equivalent next-hop-self is performed on the best path from among the IBGP multipaths before it is forwarded to external peers.
  D. The path should be learned from an external neighbor.
  E. The router BGP process must learn the path from a confederation-external or external neighbor.
  F. The router BGP process must learn the path from an internal neighbor.
  A. The IGP metric of the BGP next hop can be different from the best-path IGP metric if you configure the router for unequal-cost IBGP multipath.
  F. The router BGP process must learn the path from an internal neighbor.

• Question 652:

  Which two statements about the command distance bgp 90 60 120 are true? (Choose two.)

  A. Implementing the command is a Cisco best practice.
  B. The external distance it sets is preferred over the internal distance.
  C. The internal distance it sets is preferred over the external distance.
  D. The local distance it sets may conflict with the EIGRP administrative distance.
  E. The internal distance it sets may conflict with the EIGRP administrative distance.
  F. The local distance it sets may conflict with the RIP administrative distance.
  C. The internal distance it sets is preferred over the external distance.
  F. The local distance it sets may conflict with the RIP administrative distance.

  ---

  To allow the use of external, internal, and local administrative distances that could be a better route than other external, internal, or local routes to a node, use the distance bgp command in address family or router configuration mode. To return to the default values, use the no form of this command. distance bgp external-distance internal-distance local-distance no distance bgp

  Syntax Description external-distance Administrative distance for BGP external routes. External routes are routes for which the best path is learned from a neighbor external to the autonomous system. Accept table values are from 1 to 255. The default is 20. Routes with a distance of 255 are not installed in the routing table. internal-distance Administrative distance for BGP internal routes. Internal routes are those routes that are learned from another BGP entity within the same autonomous system. Accept table values are from 1 to 255. The default is 200. Routes with a distance of 255 are not installed in the routing table. local-distance Administrative distance for BGP local routes. Local routes are those networks listed with a network router configuration command, often as back doors, for that router or for networks that are being redistributed from another process. Accept table values are from 1 to 255. The default is 200. Routes with a distance of 255 are not installed in the routing table. Defaults external-distance: 20 internal-distance: 200 local-distance: 200

  In this case, the internal distance is 60 and the external is 90, and the local distance is 120 (same as RIP).

  Reference: http://www.cisco.com/c/en/us/td/docs/ios/12_2/iproute/command/reference/fiprrp_r/1rfbgp1. html#wp1113874

• Question 653:

  How are the Cisco Express Forwarding table and the FIB related to each other?

  A. The FIB is used to populate the Cisco Express Forwarding table.
  B. The Cisco Express Forwarding table allows route lookups to be forwarded to the route processor for processing before they are
  C. There can be only one FIB but multiple Cisco Express Forwarding tables on IOS devices.
  D. Cisco Express Forwarding uses a FIB to make IP destination prefix-based switching decisions.
  D. Cisco Express Forwarding uses a FIB to make IP destination prefix-based switching decisions.

• Question 654:

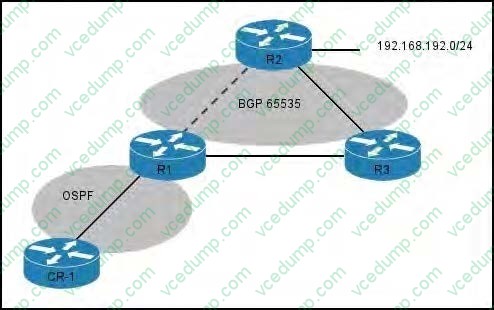

  Refer to the exhibit.



  If a connection failure occurs between R1 and R2, which two actions can you take to allow CR-1 to reach the subnet 192.168.192.0/24 on R2? (Choose two.)

  A. Create a static route on R1 for subnet 192.168.192.0/24 towards R3 and redistribute it into OSPF.
  B. Turn up a BGP session between CR-1 and R1.
  C. Create a static route on R1 for subnet 192.168.192.0/24 towards R3 and redistribute it into BGP.
  D. Turn up an EIGRP session between R1 and R3 with AS 65535.
  E. Create an OSPF virtual link between CR-1 and R2 to bypass R1.
  A. Create a static route on R1 for subnet 192.168.192.0/24 towards R3 and redistribute it into OSPF.
  B. Turn up a BGP session between CR-1 and R1.

• Question 655:

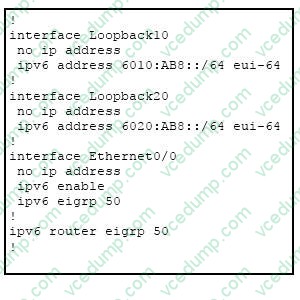

  Refer to the exhibit.



  Assuming that the peer is configured correctly and the interface is up, how many neighbors will be seen in the EIGRPv6 neighbor table on this IPv6-only router?

  A. one neighbor, which will use a local router-id of 6010. AB8. . /64
  B. one neighbor, which will use a local router-id of 6020. AB8. . /64
  C. none, because EIGRPv6 only supports authenticated peers
  D. none, because of the mismatch of timers
  E. none, because there is no EIGRP router ID configured
  E. none, because there is no EIGRP router ID configured

  ---

  Configuring EIGRP for IPv6 has some restrictions; they are listed below:

  The interfaces can be directly configured with EIGRP for IPv6, without the use of a global IPv6 address. There is no network statement in EIGRP for IPv6. The router ID needs to be configured for an EIGRPv6 protocol instance before it can

  run.

  EIGRP for IPv6 has a shutdown feature. Ensure that the routing process is in "no shut" mode to start running the protocol.

  Reference: http://www.cisco.com/c/en/us/support/docs/ip/enhanced-interior-gateway- routing-protocol-eigrp/113267-eigrp-ipv6-00.html

• Question 656:

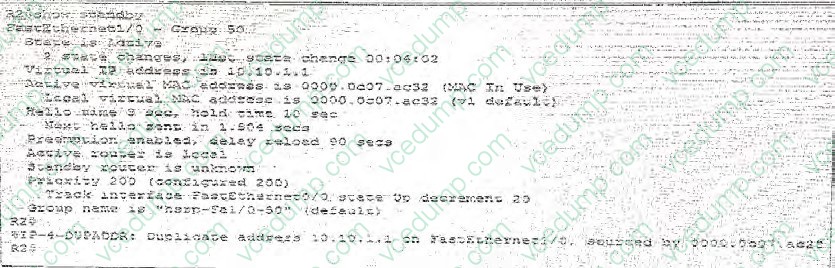

  Refer to the exhibit.



  Which option is the most likely explanation of the duplicate address message logged?

  A. HSRP misconfiguration
  B. a PC with IP of 10.10.1.1
  C. spanning-tree-loop
  D. a hardware problem
  A. HSRP misconfiguration

• Question 657:

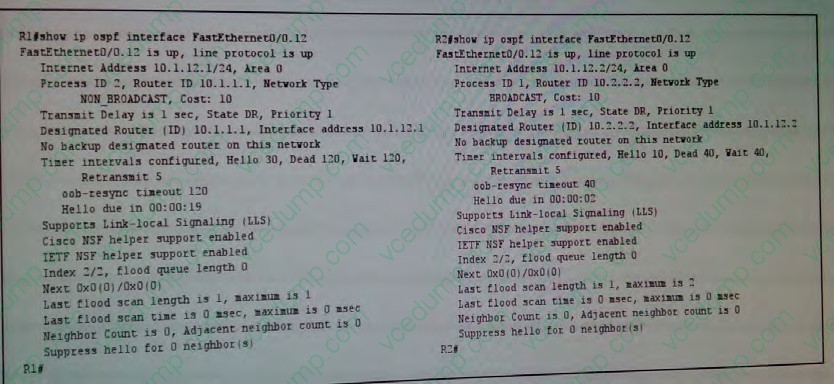

  Refer to the exhibit.



  OSPF is configured on R1 and R2 as shown. Which action can you take to allow a neighbor relationship to be established.

  A. Configure R1 and R2 as neighbors using interface addresses.
  B. On R1, set the network type of the FastEthernet0/0.12 interface to broadcast
  C. On R1, change the process ID to 1
  D. Configure R1 and R2 as neighbors using router IDs.
  B. On R1, set the network type of the FastEthernet0/0.12 interface to broadcast

• Question 658:

  You are configuring a DMVPN spoke to use IPsec over a physical interface that is located within a VRF. For which three configuration sections must you specify the VRF name? (Choose three.)

  A. the ISAKMP profile
  B. the crypto keyring
  C. the IPsec profile
  D. the IPsec transform set
  E. the tunnel interface
  F. the physical interface
  B. the crypto keyring
  E. the tunnel interface
  F. the physical interface

  ---

  ip vrf forwardingvrf-name

  Example:

  Router(config-if)# ip vrf forwarding green

  Associates a virtual private network (VPN) routing and forwarding (VRF) instance with an interface or subinterface.

  ?

  vrf-name is the name assigned to a VRF.

  Router(config-if)# tunnel vrfvrf-name

  Example:

  Router(config-if)# tunnel vrf finance1

  Associates a VPN routing and forwarding (VRF) instance with a specific tunnel destination.

  vrf-name is the name assigned to a VRF.

  Router(config)# crypto keyringkeyring-name [vrf fvrf-name] Defines a crypto keyring to be used during IKE authentication and enters keyring

  ?

  keyring-name--Name of the crypto keyring.

  ?

  fvrf-name--(Optional) Front door virtual routing and forwarding (FVRF) name to which the keyring will be referenced. fvrf-name must match the FVRF name that was defined during virtual routing and forwarding (VRF) configuration

• Question 659:

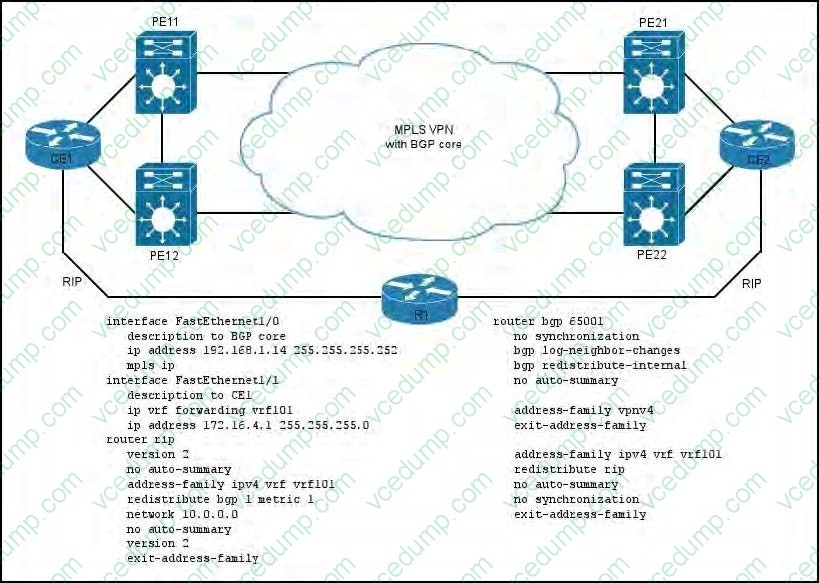

  Refer to the exhibit.



  Traffic from CE1 to CE2 is traveling through the core instead of through R1. All the PE routers have a similar configuration, and BGP peering and extended- community meshing are configured correctly.

  Which configuration change routes the traffic through R1?

  E. Exhibit A
  F. Exhibit B
  G. Exhibit C
  H. Exhibit D
  A

• Question 660:

  Which packet is sent out by the DIS in IS-IS?

  A. LSP
  B. PSNP
  C. CSNP
  D. LSDB
  C. CSNP
