Cisco CCNP Service Provider 350-501 Questions & Answers

• Question 301:

  Which protocol is used for communication between the PCE and PCC?

  A. POP

  B. CEF

  C. PCEP

  D. ICMP

  Correct Answer: C

• Question 302:

  A network engineer is configuring RIP as the routing protocol between multiple PEs and CEs. The engineer must avoid advertising the same routes back to their sources. Which action should be performed on the routers to accomplish this task?

  A. Define the site of origin on each interface.

  B. Configure a different route distinguisher for each prefix.

  C. Define VRFs on each device to separate the traffic.

  D. Enable bidirectional forwarding detection on each device.

  Correct Answer: B

• Question 303:

  A network engineer is deploying VPLS configuration between multiple PE routers so that customer's remote offices have end-to-end LAN connectivity. Which additional configuration should the engineer perform on the PE routers to enable the virtual switch instance?

  A. I2 vfl ciscotest manual vpn id 100 neighbor 192.168.2.2 encapsulation mpls neighbor 192.168.3.3 encapsulation mpls

  B. interface GigEthernet 1/1 switchport mode trunk switchport trunk encap dot1q switchport trunk allow vlan 2-10

  C. interface Vlan 5 xconnect vfl ciscotest

  D. interface Vlan 100 xconnect vfi ciscotest ip address 192.168.1.1 255.255.255

  Correct Answer: A

  Provisioning a Virtual Private LAN Services (VPLS) link involves provisioning the associated attachment circuit and a virtual forwarding instance (VFI) on a provider edge (PE) device. https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/mp_l2_vpns/configuration/xe-3s/mp-l2-vpns-xe-3s-book/mp-vpls.html

• Question 304:

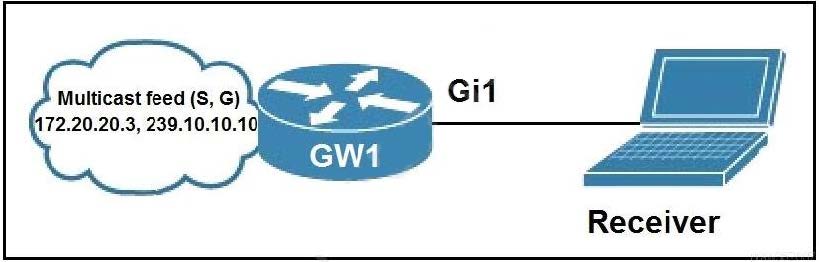

  Refer to the exhibit.



  A network administrator is implementing IGMP to enable multicast feed transmission to the receiver. Which configuration must the administrator deploy on GW1 to permit IGMP joins only to the assigned (S, G) feed?

  A. config t access-list 100 permit igmp host 0.0.0.0 host 239.10.10.10 access-list 100 deny igmp any any interface GigabitEthernet1 ip igmp access-group 100 ip igmp version 3 end

  B. config t access-list 100 permit igmp host 0.0.0.0 host 239.10.10.10 access-list 100 deny igmp any any interface GigabitEthernet1 ip igmp access-group 100 ip igmp version 2 end

  C. config t access-list 100 permit igmp host 0.0.0.0 host 239.10.10.10 access-list 100 permit igmp host 172.20.20.3 host 239.10.10.10 access-list 100 deny igmp any any interface GigabitEthernet1 ip igmp access-group 100 ip igmp version 3 end

  D. config t access-list 100 permit igmp host 0.0.0.0 host 239.10.10.10 access-list 100 permit igmp host 172.20.20.3 host 239.10.10.10 access-list 100 deny igmp any any interface GigabitEthernet1 ip igmp access-group 100 ip igmp version 2 end

  Correct Answer: C

• Question 305:

  A network engineer is implementing a QoS policy for outbound management traffic classification and marking on a CPE device with these requirements:

  Management protocols must be marked with DSCP AF class 2 with low drop probability.

  Monitoring protocols must be marked with DSCP AF class 1 with low drop probability.

  All remaining traffic must be marked with a DSCP value of 0.

  Which configuration must the engineer implement to satisfy the requirements?

  A. policy-map cpe-mgmt-policy class management set ip dscp af21 class monitoring set ip dscp af11 class class-default

  set ip dscp default

  end

  B. policy-map cpe-mgmt-policy class management set ip dscp af21 class monitoring set ip dscp af11

  class class-default

  set ip dscp af10

  end

  C. policy-map cpe-mgmt-policy class management set ip dscp af23 class monitoring set ip dscp af13 class class-default

  set ip dscp default

  end

  D. policy-map cpe-mgmt-policy class management set ip dscp af23 class monitoring set ip dscp af13 class class-default

  set ip dscp af0

  end

  Correct Answer: B

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus1000/sw/4_0/qos/configur ation/guide/nexus1000v_qos/qos_6dscp_val.pdf

• Question 306:

  What occurs when a high bandwidth multicast stream is sent over an MVPN using Cisco hardware?

  A. The traffic uses the default MDT to transmit the data only if it is a (S, G) multicast route entry.

  B. A data MDT is created to if it is a (*, G) multicast route entries.

  C. A data and default MDT are created to flood the multicast stream out of all PIM-SM neighbors.

  D. A data MDT is created to allow for the best transmission through the core for (S, G) multicast route entries.

  Correct Answer: B

• Question 307:

  An engineer is implementing IGMP with SSM on a multicampus network that supports video streaming. Which task must the engineer perform as part of the process?

  A. Configure an RP that uses static assignments only.

  B. Configure the network to use the PIM bsr-candidate.

  C. Configure the network to use bidirectional PIM.

  D. Configure the network to use IGMPv3.

  Correct Answer: D

• Question 308:

  An engineer must extend Layer 2 between two campus sites connected through an MPLS backbone that encapsulates Layer 2 and Layer 3 data. Which action must the engineer perform on the routers to accomplish this task?

  A. Configure QoS for MPLS and E-ACCESS.

  B. Configure a EtherChannel for E-LAN.

  C. Configure a pseudowire for E-LINE.

  D. Configure Cisco MPLS TE for use with E-TREE.

  Correct Answer: C

• Question 309:

  What is the role of NSO in network automation?

  A. It is a tool used to bridge automation to the physical network infrastructure.

  B. It is a GUI used to manage wireless devices in a campus infrastructure.

  C. It is a type of REST API used to configure an APIC.

  D. It is a tool that uses CLI only to configure virtual network devices.

  Correct Answer: A

  https://www.cisco.com/c/en/us/products/collateral/cloud-systems-management/network-services-orchestrator/datasheet-c78-734576.html



• Question 310:

  What do Chef and Puppet have in common?

  A. use Ruby

  B. require modules to be created from scratch

  C. use a master server

  D. manage agents referred to as minions

  Correct Answer: C
