• Question 41:

  What is the effective bandwidth of a 6 node, four-fiber OC-48 BLSR ring if all the traffic on the ring is homed back to one node (hub-and-spoke) without Protection Channel Access (PCA)?

  A. STS-24
  B. STS-48
  C. STS-96
  D. STS-192
  C. STS-96

• Question 42:

  What is the transmission limitation on a single 1310 nm signal, at OC-192 bit-rate, over certified SMF. 28 fiber using no dispersion compensation?

  A. Four-wave mixing
  B. Polarization-mode dispersion
  C. Chromatic dispersion
  D. Attenuation
  D. Attenuation

• Question 43:

  How many E1 channels can STM-1 frame transport?

  A. 7
  B. 21
  C. 63
  D. 84
  C. 63

• Question 44:

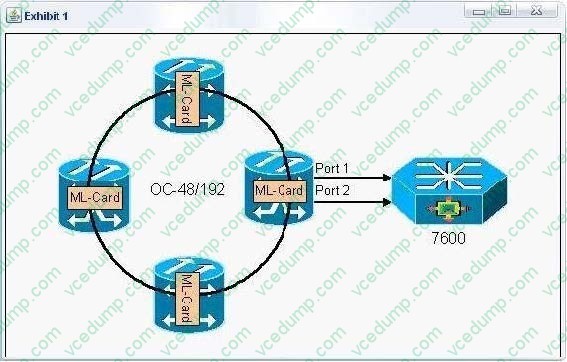

  Click the Exhibit button.



  In the diagram, if a resilient packet ring (RPR) is built between ML-series cards, restoration exists on the ring, while the redundant connections to the 7609 rely on protection.

  A. 50ms,STP
  B. STP.STP
  C. STP, 1+1 APS
  D. 50ms, 50ms
  A. 50ms,STP

• Question 45:

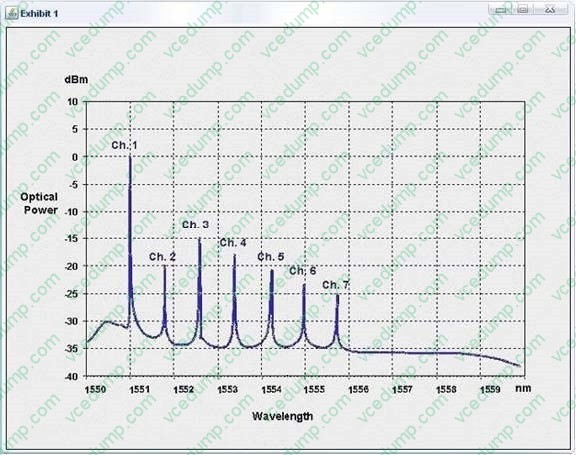

  Click the Exhibit button to view the graph.



  The graph represents optical signal power versus wavelength measurement from 1550nm to 1560nm. What is the gain tilt of all of the seven channels?

  A. 10dB
  B. i5dB
  C. 20dB
  D. 25dB
  E. 30dB
  D. 25dB

• Question 46:

  EIGRP applies the principle of Feasible Successor (FS) in resolving a new path to a lost route. What statement regarding the FS is correct?

  A. Information is stored for the FS as part of the Link-State Routing updates forwarded for EIGRP.
  B. EIGRP estimates the FS from each neighbor for each network after an exchange of database information during the normal update process. It uses this information for path selection when a route is lost.
  C. When EIGRP is notified that a route is lost, it will always send requests to each neighbor for ways to reach the lost route. The neighbor that returns the best path will qualify as the FS.
  D. EIGRP nominates a central router as the FS for all lost routes during configuration.
  B. EIGRP estimates the FS from each neighbor for each network after an exchange of database information during the normal update process. It uses this information for path selection when a route is lost.

• Question 47:

  If a 10 KM fiber cable segment has a worst-case PMD value of 1 .Ops, then what would the PMD value be (worst-case) if another 30 KM segment is spliced into the original cable with identical fiber specifications?

  A. 0.1ps
  B. 0.3ps
  C. 0.4ps
  D. 1.3ps
  E. 4ps
  E. 4ps

• Question 48:

  What type of effect on optical signals occurs when temperature fluctuations and bending stresses on fiber?

  A. Polarization-mode dispersion
  B. SelF. phase modulation
  C. Cross-phase modulation
  D. Four-wave mixing
  A. Polarization-mode dispersion

• Question 49:

  What is the frequency of an optical signal with a wavelength of 1530 nm?

  A. 196.1 THz
  B. 196.1 GHz
  C. 459 THz
  D. 459 GHz
  A. 196.1 THz

• Question 50:

  Which describe the benefits that FICON has over ESCON?

  A. Increased channel capacity due to new architecture
  B. Increased channel capacity due to faster physical link rates
  C. Increased channel capacity due to Upper Level Protocol Mapping
  D. Increased channel capacity due to improved SCSI header re-write algorithms
  E. FICON offers no significant advantage over ESCON
  A. Increased channel capacity due to new architecture
  B. Increased channel capacity due to faster physical link rates
