Cisco 350-020 Online Practice Questions and Exam Preparation

Cisco 350-020 Online Questions & Answers

• Question 261:

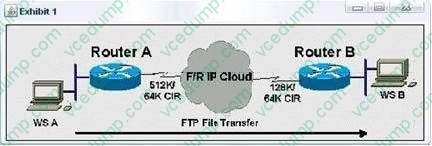

  Click the Exhibit to view the



  Router A has a 512K-access port into the frame relay cloud. Router B has 128K-access port into the frame relay cloud. The two routers are connected with symmetrical PVCs that are configured for 64K committed information rate (CIR). What Frame Relay Traffic Shaping map- class sub- command should be entered on Router A to prevent workstation A from overrunning the access port on Router B?

  A. frame-relay traffic-rate 128000 512000
  B. frame-relay traffic-rate 64000 512000
  C. frame-relay traffic-rate 512000 64000
  D. frame-relay traffic-rate 128000 64000
  E. frame-relay traffic-rate 64000 128000
  E. frame-relay traffic-rate 64000 128000

• Question 262:

  What part of the SONET frame is used to overcome the need to buffer information in order to have fixed information payloads?

  A. Section Overhead
  B. Line Overhead
  C. Pointers
  D. Path Overhead
  E. H2andSTS-1
  C. Pointers

• Question 263:

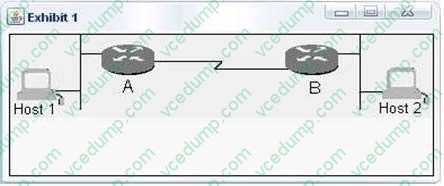

  Click the Exhibit button to view the topology.



  Host 1 and Host 2 are on Ethernet LANs in different buildings. A serial line is installed between two Cisco routers using Cisco HDLC serial line encapsulation. Routers A and B are configured to route IP traffic. Host 1 sends a packet to Host 2. A line hit on the serial line causes an error in the packet. When this is detected, the retransmission is sent by:

  A. Host 1
  B. Host2
  C. Router A
  D. RouterB
  E. Protocol analyzer
  A. Host 1

• Question 264:

  BGP can implement a policy of 'Route Dampening' to control route instability. What statement about route dampening is NOT correct?

  A. A numeric penalty is applied to a route each time it flaps.
  B. The penalty is exponentially decayed according to parameters, such as halF. life-time.
  C. The history of unstable routes is forwarded back to the sender to control future updates.
  D. The route is eventually suppressed based on a configurable 'suppress limit'.
  C. The history of unstable routes is forwarded back to the sender to control future updates.

• Question 265:

  What is not one of the five key functional areas for Cisco Transport Manager?

  A. Accounting
  B. Configuration
  C. Fault
  D. Inventory
  E. Performance
  A. Accounting

• Question 266:

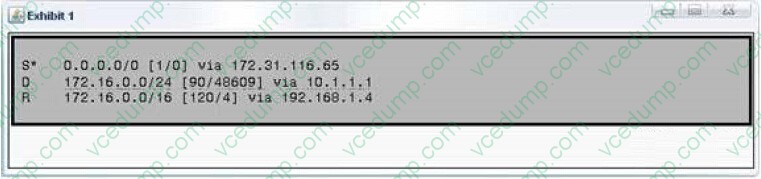

  A router has the above routes listed in its routing table and receives a packet destined for 172.16.0.45. What will happen?

  A. The router will not forward this packet, since it is destined for the 0 subnet.
  B. The router will forward the packet through 172.31.116.65, since it has the lowest metric.
  C. The router will forward the packet through 10.1.1.1.
  D. The router will forward the packet through 172.31.116.65, since it has the lowest administrative distance.
  E. The router will forward the packet through 192.168.1.4.
  C. The router will forward the packet through 10.1.1.1.

• Question 267:

  What mechanism enables cut-through switches to process a frame with reduced latency?

  A. The destination address is at or near the beginning of the frame.
  B. The CRC is at the end of the frame.
  C. The CRC is at or near the beginning of the frame.
  D. The source address is at or near the beginning of the frame.
  E. The data is compressed in the middle of the frame.
  A. The destination address is at or near the beginning of the frame.

• Question 268:

  Every time a typing mistake is made at the exec prompt of a router, the message from the router indicates a lookup is being performed. Also, there is a waiting period of several seconds before the next command can be typed. Can this behavior be changed?

  A. No, this is a built in feature of Cisco IOS software.
  B. Yes, use the no ip domain-lookup command.
  C. Yes, use the no ip helper-address command.
  D. Yes, use the no ip multicast helper-map command.
  E. Yes, use the no exec lookup command.
  B. Yes, use the no ip domain-lookup command.

• Question 269:

  In order to create a DCC tunnel in the ONS 15454, which TWO statements are necessary conditions?

  1.

  LDCC tunnels need to be available.

  2.

  The OC-N port where the DCC will be tunneled needs to be enabled.

  3.

  A customer circuit must be provisioned first.

  4.

  Only Ports 1and3 of the OC-3 card can tunnel DCC.

  5.

  SDCC needs to be tunneled separately for transmit and receive directions

  A. 1 and 2
  B. 1 and 4
  C. 1 and 5
  D. 3 and 5
  A. 1 and 2

• Question 270:

  What is the effective bandwidth of a 6 node, four-fiber OC-48 BLSR ring if all the traffic on the ring is homed back to one node (hub-and-spoke) without Protection Channel Access (PCA)?

  A. STS-24
  B. STS-48
  C. STS-96
  D. STS-192
  C. STS-96
